AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
109S491-2092X25MM 100V,MINI ACE, SNSR VLT |
2,352 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 7.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
UF25GC12-BTHNRFAN AXIAL 254X89MM 115VAC IP55 |
1,214 | 86.99 |
|
Datasheet |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
UF25GC12-BWHNRFAN AXIAL 254X89MM 115VAC IP55 |
2,012 | 86.99 |
|
Datasheet |
UF25GC | Bulk | Active | 115VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
|
UF25GC23-BTHNRFAN AXIAL 254X89MM 230VAC IP55 |
1,420 | 86.99 |
|
Datasheet |
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
|
UF25GC23-BWHNRFAN AXIAL 254X89MM 230VAC IP55 |
4,064 | 86.99 |
|
Datasheet |
UF25GC | Bulk | Active | 230VAC | Round - 254mm Dia | 89.00mm | 550.0 CFM (15.40m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 55.0dB(A) | 33.00W | 1650 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 4.1 lbs (1.9 kg) |
|
OAB908AN-22-3FAN BLOWER 183X70MM 230VAC WIRE |
3,059 | 85.45 |
|
Datasheet |
OAB908 | Box | Active | 230VAC | Rectangular/Rounded - 183mm L x 189.8mm H | 70.00mm | 50.0 CFM (1.40m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Blower | Capacitor, Thermal Overload Protector (TOP) | 40.0dB | 60.0W | 1000 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
CF2207LBL-000U-HE9FAN AXIAL 250X77.4MM 220~240VAC |
2,106 | 65.30 |
|
Datasheet |
CF | Bulk | Active | 220 ~ 240VAC | Round - 250mm Dia | 77.40mm | 186.0 ~ 278.8 CFM (5.21 ~ 7.81m³/min) | 0.160/0.300 in H2O (39.8/74.7 Pa) | Ball | Tubeaxial | Auto Restart, Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 29.9/41.2dB(A) | 3.20W, 6.60W | 950/1400 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -40 ~ 122°F (-40 ~ 50°C) | ATEX, CE, CUR, TUV, UL | 2.4 lbs (1.1 kg) |
|
|
109S494-2092X25MM 230V,MINI ACE, SNSR VLT |
4,354 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 9.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S492-2092X25MM 200V,MINI ACE, SNSR VLT |
2,451 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 200VAC | Square - 92mm L x 92mm H | 25.00mm | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 10.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S492-3092X25MM 200V,MINI ACE, SNSR VLT |
2,192 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 200VAC | Square - 92mm L x 92mm H | 25.00mm | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 10.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|

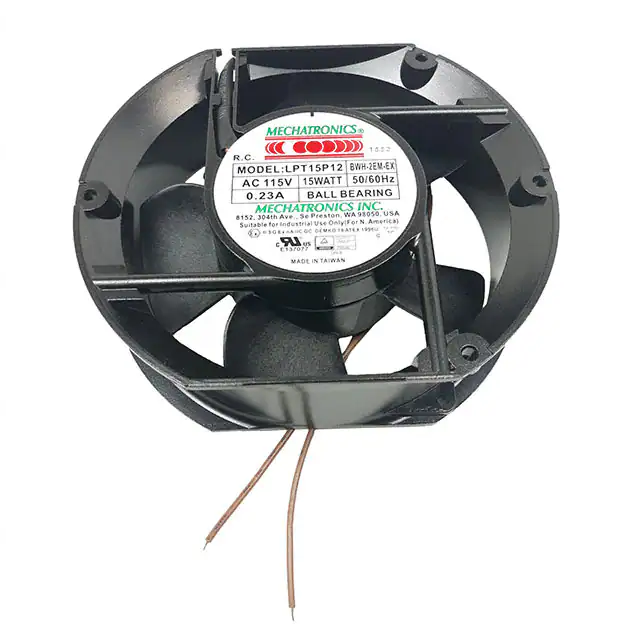

LPT15P12-BWHR-2EM-EXEC FAN AXIAL 172X150X51MM 120VAC |
2,610 | 85.91 |
|
Datasheet |
LPT15P | Bulk | Obsolete | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 220.0 CFM (6.16m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 57.0dB(A) | 15.00W | 3000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | ATEX | 1.543 lb (700.0 g) |
|
LPT15P23-BTHR-2EM-EXEC FAN AXIAL 172X150X51MM 230VAC |
1,473 | 71.54 |
|
Datasheet |
LPT15P | Bulk | Obsolete | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 220.0 CFM (6.16m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 57.0dB(A) | 15.00W | 3000 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | - | ATEX | 1.543 lb (700.0 g) |
|

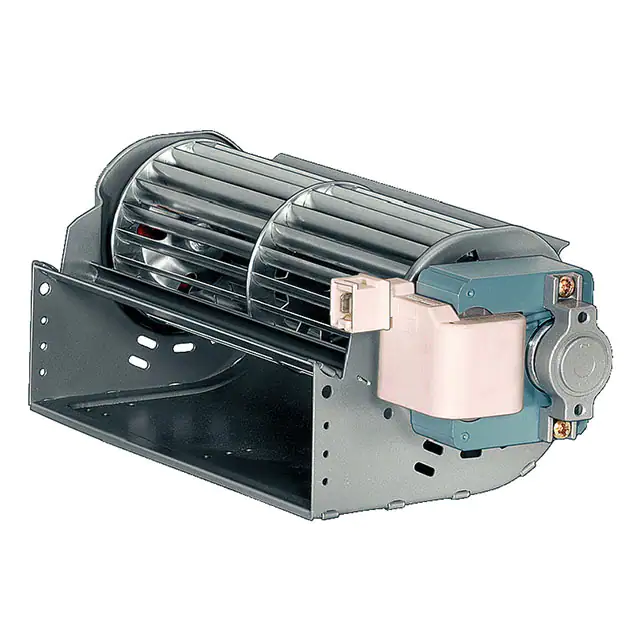

55410.81051FAN BLWR CF 180X96MM 220/240VAC |
2,534 | 40.07 |
|
Datasheet |
QLZ06 | Bulk | Active | 240VAC | Rectangular - 260mm L x 83mm H (60mm Dia) | 96.00mm | 72.0 CFM (2.02m³/min) | - | Sleeve | Blower, Cross Flow | - | 50.0dB(A) | 35.00W | - | 2 Terminals | - | - | CSA, UL, VDE | - |
|
|
55410.91405FAN BLOWER CROSSFLOW |
3,255 | 60.21 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
55416.30320AC FAN BLOWER CROSSFLOW |
3,672 | 92.43 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AC4300HUFAN AXIAL 119X32MM 85/265VAC |
3,594 | 104.44 |
|
- |
AC4300H | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 32.00mm | 120.2 CFM (3.37m³/min) | - | Ball | Tubeaxial | Electronic Commutation (EC) | 51.0dB(A) | 12.00W | 3400 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
19026165AFAN AXIAL 179X63MM 115VAC FF113 |
1,955 | 0.00 |
|
Datasheet |
Feather | - | Obsolete | 115VAC | Round - 179mm Dia | 63.00mm | 245.0 CFM (6.86m³/min) | - | Ball | Tubeaxial | - | - | 20.00W | 3200 RPM | 2 Terminals | - | - | - | 1.5 lbs (680.4 g) |
|
OA254AN-11-2TBFAN AXIAL 254X89MM 115VAC TERM |
1,992 | 81.29 |
|
Datasheet |
OA254AN | Box | Active | 115VAC | Round - 254mm Dia | 89.00mm | 600.0 CFM (16.80m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 55.0dB | 45.00W | 2000 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, cURus, TUV, UR | 5.4 lbs (2.4 kg) |
|
|
109S495-2092X25MM 100V,MINI ACE, SNSR VLT |
3,096 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 34.6 CFM (0.969m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 7.00W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S496-2092X25MM 100V,MINI ACE, SNSR VLT |
4,506 | 0.00 |
|
Datasheet |
San Ace 92 | Box | Active | 100VAC | Square - 92mm L x 92mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.065 in H2O (16.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 6.00W | 1700 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
