AC Fans
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF15KM12-BWH-FFAN AXIAL 172X55MM 115VAC WIRE |
1,381 | 43.04 |
|
Datasheet |
UF15KM | Bulk | Obsolete | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB(A) | 42.00W | 3250 RPM | 2 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|

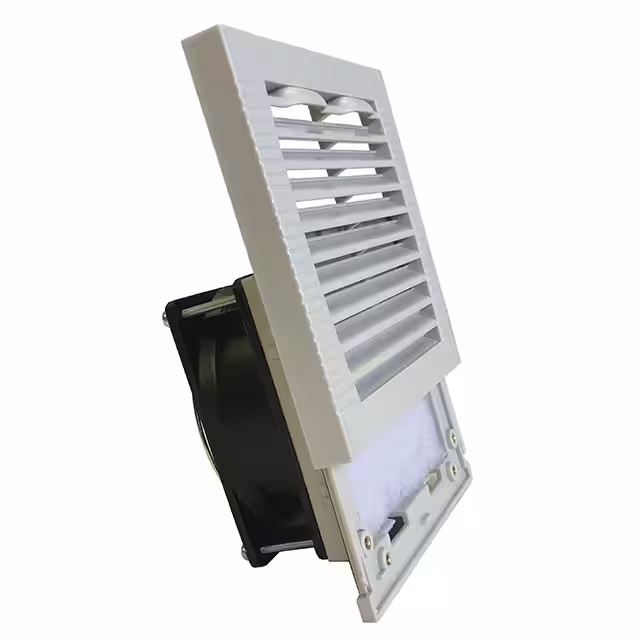

OA109LFGS221TFAN AXIAL 156X76.8MM 230VAC TERM |
4,988 | 36.86 |
|
Datasheet |
OA109LFGS | Box | Active | 230VAC | Square - 156mm L x 156mm H | 76.80mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Kit | 46.0dB | 15.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
55444.30000FAN BLOWER CF 200X74MM 115VAC |
3,794 | 41.25 |
|
Datasheet |
QL4 | Bulk | Active | 115VAC | Rectangular - 282mm L x 59mm H (40mm Dia) | 74.00mm | 48.0 CFM (1.34m³/min) | 0.056 in H2O (14.0 Pa) | - | Blower, Cross Flow | - | - | 11.00W | 2300 RPM | 2 Terminals | - | 32 ~ 140°F (0 ~ 60°C) | - | 1.3 lbs (589.7 g) |
|
UF12A12-BTSLNSRFAN 120X38MM 115V IP55 SALT FOG |
3,010 | 32.53 |
|
Datasheet |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 57.0 CFM (1.60m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Salt Fog Rated | 36.0dB(A) | 6.00W | 1800 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
|
UF12A12-BTSNSRFAN 120X38MM 115V IP55 SALT FOG |
2,666 | 32.53 |
|
Datasheet |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 64.0 CFM (1.79m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Salt Fog Rated | 37.0dB(A) | 8.00W | 2100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
UF12A12-BWHNSRFAN 120X38MM 115V IP55 SALT FOG |
3,299 | 32.53 |
|
Datasheet |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Salt Fog Rated | 46.0dB(A) | 12.00W | 3100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
9956MFAN AXIAL 119X25MM 230VAC TERM |
3,499 | 54.30 |
|
Datasheet |
9900 | Bulk | Obsolete | 230VAC | Square - 119mm L x 119mm H | 25.00mm | 61.2 CFM (1.71m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 10.00W | 2250 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.716 lb (324.77 g) |
|

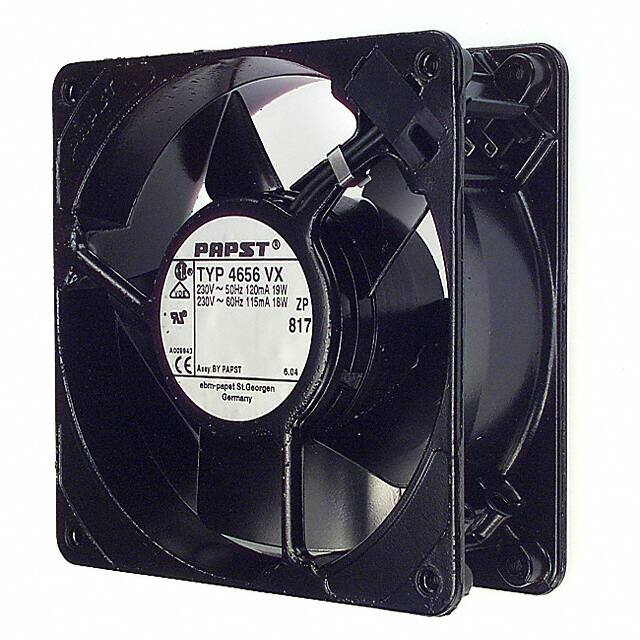

4656VX-817FAN AXIAL 119X38MM 230VAC TERM |
2,600 | 0.00 |
|
Datasheet |
4000VX | - | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 18.00W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
AB1123-HBL.GNFAN BLWR RAD 120.5X37MM 115VAC |
1,502 | 23.19 |
|
Datasheet |
AB | Bulk | Active | 115VAC | Square - 120.5mm L x 120.5mm H | 37.00mm | 22.0 CFM (0.616m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Blower, Radial | - | 50.0dB(A) | 18.00W | 2900 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.5 lbs (680.4 g) |
|
|
AB1123-HBT.GNFAN BLWR RAD 120.5X37MM 115VAC |
2,709 | 23.19 |
|
Datasheet |
AB | Bulk | Active | 115VAC | Square - 120.5mm L x 120.5mm H | 37.00mm | 22.0 CFM (0.616m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Blower, Radial | - | 50.0dB(A) | 18.00W | 2900 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.5 lbs (680.4 g) |
|
|
AB2123-HBL.GNFAN BLWR 120.5X37MM 220/240VAC |
4,039 | 23.19 |
|
Datasheet |
AB | Bulk | Active | 220 ~ 240VAC | Square - 120.5mm L x 120.5mm H | 37.00mm | 22.0 CFM (0.616m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Blower, Radial | - | 50.0dB(A) | 18.00W | 2900 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.5 lbs (680.4 g) |
|
|
AB2123-HBT.GNFAN BLWR 120.5X37MM 220/240VAC |
3,071 | 23.19 |
|
Datasheet |
AB | Bulk | Active | 220 ~ 240VAC | Square - 120.5mm L x 120.5mm H | 37.00mm | 22.0 CFM (0.616m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Blower, Radial | - | 50.0dB(A) | 18.00W | 2900 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.5 lbs (680.4 g) |
_Series.jpg)
|
8830TAFAN AXIAL 76X37MM 115VAC WIRE |
2,239 | 45.05 |
|
Datasheet |
8000TA | Bulk | Active | 115VAC | Round - 76mm Dia | 37.00mm | 15.3 CFM (0.428m³/min) | - | Sintec | Tubeaxial | - | 18.0dB(A) | 8.00W | 1850 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
CF4113HBT-000U-AB9FAN AXIAL 120X38MM 100-240V IP55 |
4,980 | 55.10 |
|
Datasheet |
CF | Bulk | Obsolete | 110/230VAC | Square - 120mm L x 120mm H | 38.00mm | 109.0 CFM (3.05m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 44.9dB(A) | 5.10W | 3500 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|

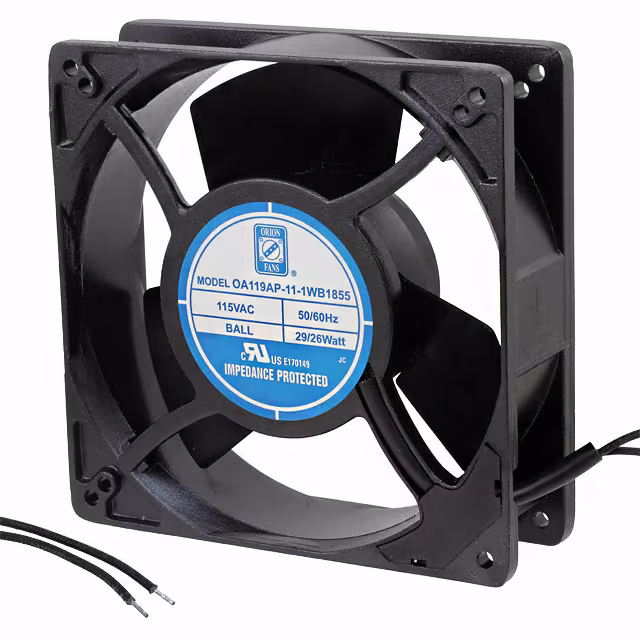

OA119AP-11-1WB1855FAN AXIAL 127X38.5MM 115VAC WIRE |
1,184 | 33.16 |
|
Datasheet |
OA119 | Box | Active | 115VAC | Square - 127mm L x 127mm H | 38.50mm | 128.0 CFM (3.58m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | - | 48.0dB | 26.00W | 2950 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.4 lbs (635 g) |
|

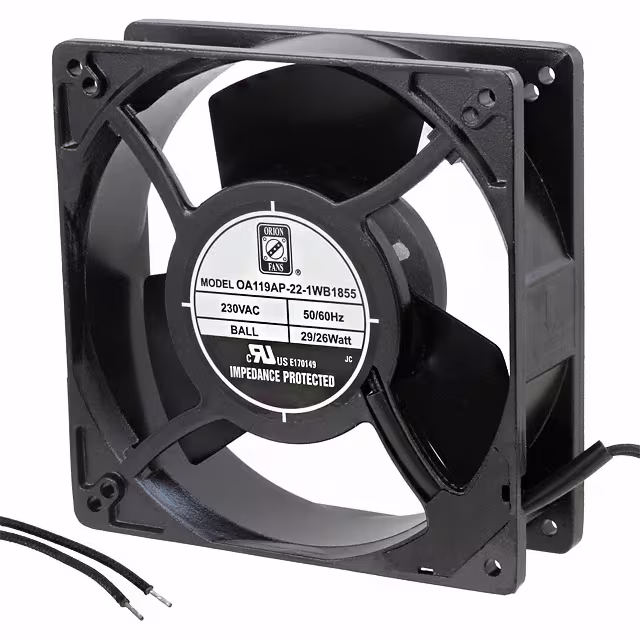

OA119AP-22-1WB1855FAN AXIAL 127X38.5MM 230VAC WIRE |
1,982 | 33.16 |
|
Datasheet |
OA119 | Box | Active | 230VAC | Square - 127mm L x 127mm H | 38.50mm | 128.0 CFM (3.58m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | - | 48.0dB | 26.00W | 2950 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 1.4 lbs (635 g) |
|
|
OA172AP-22-2WB230VAC 172X172X51MM |
1,359 | 0.00 |
|
Datasheet |
OA172AP | Bulk | Active | 230VAC | Round - 172mm Dia | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 20.00W | 2400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
OA172AP-22-3TB230VAC 172X172X51MM |
3,848 | 0.00 |
|
Datasheet |
OA172AP | Bulk | Active | 230VAC | Round - 172mm Dia | 51.00mm | 135.0 CFM (3.78m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 16.00W | 1800 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
OA172AP-11-3WB115VAC 172X172X51MM |
2,163 | 0.00 |
|
Datasheet |
OA172AP | Bulk | Active | 115VAC | Round - 172mm Dia | 51.00mm | 135.0 CFM (3.78m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 16.00W | 1800 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
OA172AN-11-3WB115VAC 172X172X51MM |
2,272 | 0.00 |
|
Datasheet |
OA172AN | Bulk | Active | 115VAC | Round - 172mm Dia | 51.00mm | 135.0 CFM (3.78m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 16.00W | 1800 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | - |
