Electric Actuators/Cylinders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Motor Type | Stroke Length | Load Force (Dynamic) | Load Force (Static) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X-LRQ450DL-E01-KX13CLinear Stage 450mm Cpitch Inline |
1,654 | 0.00 |
|
Datasheet |
X-LRQ-E | Tape & Box (TB) | Active | - | Stepper | 17.717" (450.00mm) | 5.62lbf (25.0N) | - | 33.07 in/s (840.0 mm/s) | - | 24 ~ 48VDC | Ball Screw | 85µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LSQ600A-E01-KX14CMotorized linear stage, screw dr |
2,399 | 0.00 |
|
Datasheet |
X-LSQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 61.82lbf (275.0N) | - | 1.10 in/s (28.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 180µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LSQ600B-E01-KX14CMotorized linear stage, screw dr |
2,032 | 0.00 |
|
Datasheet |
X-LSQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 26.98lbf (120.0N) | - | 5.67 in/s (144.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 100µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LSQ600D-E01-KX14CMotorized linear stage, screw dr |
1,964 | 0.00 |
|
Datasheet |
X-LSQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 7.87lbf (35.0N) | - | 27.56 in/s (700.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 230µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRT0250DL-E08C-KX14NLinear Stage 250mm Cpitch |
2,725 | 0.00 |
|
Datasheet |
X-LRT-EC | Tape & Box (TB) | Active | Linear Axis | Stepper, Bipolar | 9.843" (250.00mm) | 674.43lbf (3000.0N) | 674.43lbf (3000.0N) | 27.56 in/s (700.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 63µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRT0250BL-E08C-KX14NLinear Stage 250mm Mpitch |
2,733 | 0.00 |
|
Datasheet |
X-LRT-EC | Tape & Box (TB) | Active | Linear Axis | Stepper, Bipolar | 9.843" (250.00mm) | 674.43lbf (3000.0N) | 674.43lbf (3000.0N) | 6.89 in/s (175.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 63µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRT0250AL-E08C-KX14NLinear Stage 250mm Fpitch |
4,489 | 0.00 |
|
Datasheet |
X-LRT-EC | Tape & Box (TB) | Active | Linear Axis | Stepper, Bipolar | 9.843" (250.00mm) | 674.43lbf (3000.0N) | 674.43lbf (3000.0N) | 1.77 in/s (45.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 63µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRT0250HL-E08C-KX14NLinear Stage 250mm Fpitch |
1,247 | 0.00 |
|
Datasheet |
X-LRT-EC | Tape & Box (TB) | Active | Linear Axis | Stepper, Bipolar | 9.843" (250.00mm) | 674.43lbf (3000.0N) | 674.43lbf (3000.0N) | 9.45 in/s (240.0 mm/s) | 100% | 24 ~ 48VDC | Ball Screw | 113µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-BLQ3000-E01-KX14CMotorized Belt-driven linear sta |
3,767 | 0.00 |
|
Datasheet |
X-BLQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 118.110" (3000.00mm) | 12.36lbf (55.0N) | - | 6.56 ft/s (2.0 m/s) | 100% | 24 ~ 48VDC | Belt Driven | 2.2mm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600DL-E01-KX14CMotorized linear stage, lead-scr |
2,097 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 7.87lbf (35.0N) | - | 33.07 in/s (840.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 100µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600HP-E01-KX14CMotorized linear stage, ball-scr |
2,182 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 112.40lbf (500.0N) | - | 4.33 in/s (110.0 mm/s) | 100% | 24 ~ 48VDC | Ball Screw | 125µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600BP-E01-KX14CMotorized linear stage, lead-scr |
3,620 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 33.72lbf (150.0N) | - | 10.63 in/s (270.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 90µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600AL-E01-KX14CMotorized linear stage, lead-scr |
2,557 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 51.71lbf (230.0N) | - | 2.13 in/s (54.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 150µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600DP-E01-KX14CMotorized linear stage, lead-scr |
4,922 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 7.87lbf (35.0N) | - | 33.07 in/s (840.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 100µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ450AL-E01-KX14CMotorized linear stage, lead-scr |
3,941 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 17.717" (450.00mm) | 51.71lbf (230.0N) | - | 2.13 in/s (54.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 135µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600AP-E01-KX14CMotorized linear stage, lead-scr |
3,939 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 51.71lbf (230.0N) | - | 2.13 in/s (54.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 150µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600BL-E01-KX14CMotorized linear stage, lead-scr |
2,873 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 33.72lbf (150.0N) | - | 10.63 in/s (270.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 90µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ450DL-E01-KX14CMotorized linear stage, lead-scr |
1,547 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 17.717" (450.00mm) | 7.87lbf (35.0N) | - | 33.07 in/s (840.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 85µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LRQ600HL-E01-KX14CMotorized linear stage, ball-scr |
2,117 | 0.00 |
|
Datasheet |
X-LRQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | 112.40lbf (500.0N) | - | 4.33 in/s (110.0 mm/s) | 100% | 24 ~ 48VDC | Ball Screw | 115µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|

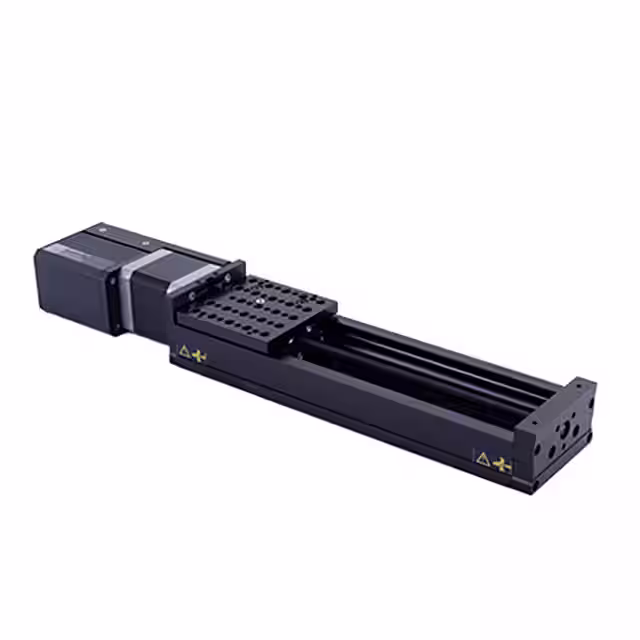

X-LSQ600D-E01-KX13CLINEAR STAGE 600MM CPITCH HSPEED |
4,945 | 4515.00 |
|
Datasheet |
X-LSQ-E | Bulk | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | - | - | 31.496 in/s (800 mm/s) | - | 24 ~ 48VDC | - | 230µm | - | Integrated Controller | - | - | Connector | 0°C ~ 50°C | - | - |
