Electric Actuators/Cylinders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Motor Type | Stroke Length | Load Force (Dynamic) | Load Force (Static) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X-LSM025A-E03-KX13ALINEAR STAGE 25MM FPITCH KNOB |
1,397 | 2288.05 |
|
Datasheet |
X-LSM-E | Box | Active | Linear Stage | Stepper, Bipolar | 1.000" (25.40mm) | 56.20lbf (250.0N) | 56.20lbf (250.0N) | 1.02 in/s (26.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 15µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
X-VSR20A- KX13AMotorized Vertical lift stages, |
3,631 | 0.00 |
|
Datasheet |
X-VSR | Retail Package | Active | Linear Axis | Stepper, Bipolar | 0.787" (20.00mm) | 44.96lbf (200.0N) | - | 1.89 in/s (48.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 50µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LSM050A-E03-KX13ALINEAR STAGE 50MM FPITCH KNOB |
4,962 | 2407.02 |
|
Datasheet |
X-LSM-E | Box | Active | Linear Stage | Stepper, Bipolar | 2.000" (50.80mm) | 56.20lbf (250.0N) | 56.20lbf (250.0N) | 1.02 in/s (26.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | ±20µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LSM050B-E03-KX13ALINEAR STAGE 50MM MPITCH KNOB |
4,919 | 2407.02 |
|
Datasheet |
X-LSM-E | Box | Active | Linear Stage | Stepper, Bipolar | 2.000" (50.80mm) | 56.20lbf (250.0N) | 56.20lbf (250.0N) | 4.21 in/s (107.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 25µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LSQ075A-E01-KX14CMotorized linear stage, screw dr |
4,708 | 0.00 |
|
Datasheet |
X-LSQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 2.953" (75.00mm) | 61.82lbf (275.0N) | - | 2.09 in/s (53.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 35µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-VSR40A- KX13AMotorized Vertical lift stages, |
3,785 | 0.00 |
|
Datasheet |
X-VSR | Retail Package | Active | Linear Axis | Stepper, Bipolar | 1.575" (40.00mm) | 44.96lbf (200.0N) | - | 1.89 in/s (48.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 35µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-RSW60A-E03-KX13AMotorized Worm gear-driven rotat |
3,802 | 0.00 |
|
Datasheet |
X-RSW-E | Retail Package | Active | Rotary Actuator | Stepper, Bipolar | 360° | 44.96lbf (200.0N) | - | - | 100% | 24 ~ 48VDC | - | 0.08° | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-LSM100A-E03-KX13ALINEAR STAGE 100MM FPITCH KNOB |
2,656 | 2643.80 |
|
Datasheet |
X-LSM-E | Box | Active | Linear Stage | Stepper, Bipolar | 4.000" (101.60mm) | 56.20lbf (250.0N) | 56.20lbf (250.0N) | 1.02 in/s (26.0 mm/s) | 100% | 24 ~ 48VDC | Lead Screw | 35µm | - | Integrated Controller, Translation Stage | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
|
X-BLQ0295-E01-KX14CMotorized Belt-driven linear sta |
4,873 | 0.00 |
|
Datasheet |
X-BLQ-E | Retail Package | Active | Linear Axis | Stepper, Bipolar | 11.614" (295.00mm) | 12.36lbf (55.0N) | - | 6.56 ft/s (2.0 m/s) | 100% | 24 ~ 48VDC | Belt Driven | 300µm | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
X-LSQ600A-E01-KX13CLINEAR STAGE 600MM FPITCH LSPEED |
3,397 | 4515.00 |
|
Datasheet |
X-LSQ-E | Bulk | Active | Linear Axis | Stepper, Bipolar | - | - | - | - | - | 24 ~ 48VDC | Ball Screw | - | - | Integrated Controller | - | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|

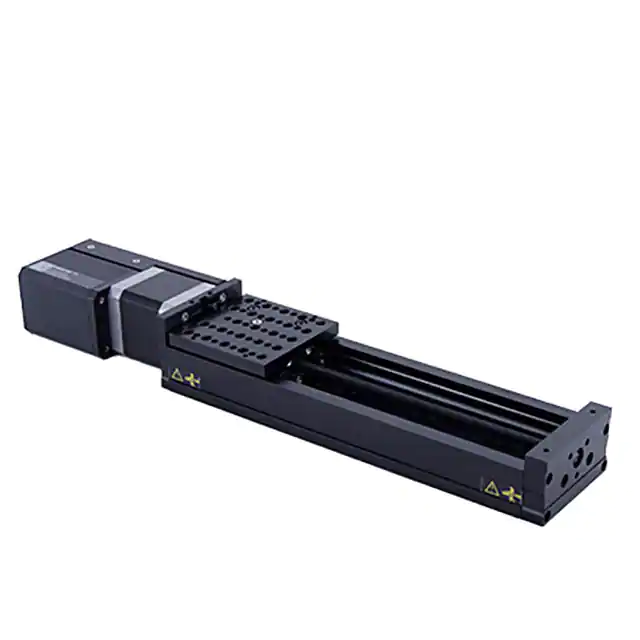

X-LSQ600B-E01-KX13CLINEAR STAGE 600MM MPITCH MSPEED |
1,368 | 4515.00 |
|
Datasheet |
X-LSQ-E | Bulk | Active | Linear Axis | Stepper, Bipolar | 23.622" (600.00mm) | - | - | 7.165 in/s (182 mm/s) | - | 24 ~ 48VDC | - | 100µm | - | Integrated Controller | - | - | Connector | 0°C ~ 50°C | - | - |
|
|
X-LDM210C-AE54D12-KX14AUltra-precision linear motor sta |
4,318 | 0.00 |
|
Datasheet |
X-LDM-AE | Retail Package | Active | Linear Axis | - | 8.268" (210.00mm) | 13.49lbf (60.0N) | - | 3.90 ft/s (1.2 m/s) | 100% | 48V | - | 1µm | 14.70 m/s² | Integrated Controller | - | Incremental Encoder | Connector | 10°C ~ 40°C | - | CE |
|
|
X-RST240B-E08-KX13ARotary Stage 240mm 102:1 ratio |
3,647 | 0.00 |
|
Datasheet |
X-RST-E | Tape & Box (TB) | Active | Rotary Stage | Stepper, Bipolar | ±360° | 674.43lbf (3000.0N) | 674.43lbf (3000.0N) | - | 100% | 24 ~ 48VDC | - | 0.075° | - | Integrated Controller, Translation Stage | 102 | Incremental Encoder | Connector | 0°C ~ 50°C | - | CE |
|
12D7-12S-22MICRO LINEAR ACTUATOR LIMIT S/W |
4,751 | 77.00 |
|
- |
12D (Limit Switch) | Retail Package | Active | Linear Actuator | Brushed | 0.866" (22.00mm) | 2.70lbf (12.0N) | 5.40lbf (24.0N) | 0.39 in/s (10.0 mm/s) | 50% | 12VDC | Lead Screw | ±0.50mm | - | Limit Switches | 10 | - | Wire Leads | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
P8-50-165-12-RP8-R Micro Linear Servo |
1,203 | 0.00 |
|
Datasheet |
P8 | Retail Package | Active | Linear Actuator | Servo | 1.969" (50.00mm) | 24.73lbf (110.0N) | 40.46 lbf (180N) | 0.36 in/s (9.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.30mm | - | Includes Controller | 165 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-10-165-12-RP8-R Micro Linear Servo |
1,589 | 0.00 |
|
Datasheet |
P8 | Retail Package | Active | Linear Actuator | Servo | 0.394" (10.00mm) | 24.73lbf (110.0N) | 40.46 lbf (180N) | 0.36 in/s (9.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.10mm | - | Includes Controller | 165 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-10-252-12-RP8-R Micro Linear Servo |
3,016 | 0.00 |
|
Datasheet |
P8 | Retail Package | Active | Linear Actuator | Servo | 0.394" (10.00mm) | 33.72lbf (150.0N) | 40.46 lbf (180N) | 0.24 in/s (6.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.10mm | - | Includes Controller | 252 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-75-50-12-RP8-R Micro Linear Servo |
4,611 | 0.00 |
|
Datasheet |
P8 | Retail Package | Active | Linear Actuator | Servo | 2.953" (75.00mm) | 7.87lbf (35.0N) | 40.46 lbf (180N) | 1.18 in/s (30.0 mm/s) | 20% | 12VDC | Lead Screw | ±0.40mm | - | Includes Controller | 50 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-25-252-12-RP8-R Micro Linear Servo |
1,781 | 0.00 |
|
Datasheet |
P8 | Retail Package | Active | Linear Actuator | Servo | 0.984" (25.00mm) | 33.72lbf (150.0N) | 40.46 lbf (180N) | 0.24 in/s (6.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.20mm | - | Includes Controller | 252 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
|
|
P8-75-252-12-RP8-R Micro Linear Servo |
1,556 | 0.00 |
|
Datasheet |
P8 | Retail Package | Active | Linear Actuator | Servo | 2.953" (75.00mm) | 33.72lbf (150.0N) | 40.46 lbf (180N) | 0.24 in/s (6.2 mm/s) | 20% | 12VDC | Lead Screw | ±0.40mm | - | Includes Controller | 252 | Potentiometer | Cable with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - |
