Electric Actuators/Cylinders
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Motor Type | Stroke Length | Load Force (Dynamic) | Load Force (Static) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12LF-55PT-27Micro/Mini Linear Servo Actuator |
1,506 | 159.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.063" (27.00mm) | 24.73lbf (110.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 20 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
17Lf-35F-2717Lf Mini Micro Linear Servo Act |
2,610 | 0.00 |
|
- |
17Lf (Servo) | Retail Package | Active | Linear Actuator | Brushed (Coreless) | 1.063" (27.00mm) | 7.87lbf (35.0N) | - | 3.54 in/s (90.0 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
12LF-17F-40Micro/Mini Linear Servo Actuator |
2,396 | 189.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 7.64lbf (34.0N) | - | 3.64 in/s (92.4 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-17PT-40Micro/Mini Linear Servo Actuator |
4,494 | 189.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 7.64lbf (34.0N) | - | 3.64 in/s (92.4 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12Lf-10F-4012Lf Mini Micro Servo Motor Actu |
1,562 | 0.00 |
|
Datasheet |
12Lf (Servo) | Retail Package | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 2.25lbft (10.0Nm) | 4.49lbf (20.0N) | 4.33 in/s (110.0 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12Lf-10PT-4012Lf Mini Micro Servo Motor Actu |
3,474 | 0.00 |
|
Datasheet |
12Lf (Servo) | Retail Package | Obsolete | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 2.25lbft (10.0Nm) | 4.49lbf (20.0N) | 4.33 in/s (110.0 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-27PT-40Micro/Mini Linear Servo Actuator |
1,240 | 189.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-27F-40Micro/Mini Linear Servo Actuator |
4,485 | 189.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-78F-40Micro/Mini Linear Servo Actuator |
3,567 | 199.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 35.07lbf (156.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 50 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-78PT-40Micro/Mini Linear Servo Actuator |
2,720 | 199.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 35.07lbf (156.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 50 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-42F-40Micro/Mini Linear Servo Actuator |
4,938 | 199.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 1.575" (40.00mm) | 18.88lbf (84.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Lead Screw | 30µm | - | Integrated Controller | 20 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|

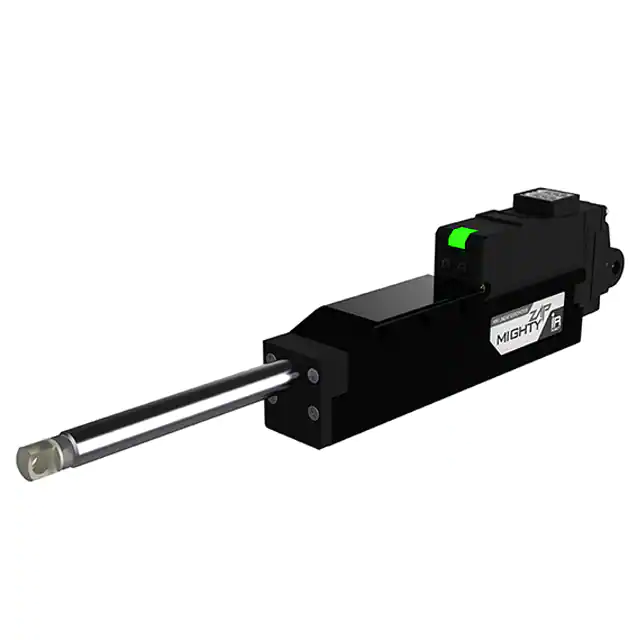

12LF-17PT-53Micro/Mini Linear Servo Actuator |
1,237 | 209.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 2.087" (53.00mm) | 7.64lbf (34.0N) | - | 3.64 in/s (92.4 mm/s) | 50% | 12VDC | Lead Screw | 40µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12Lf-10F-5312Lf Mini Micro Servo Motor Actu |
3,684 | 0.00 |
|
Datasheet |
12Lf (Servo) | Retail Package | Active | Linear Actuator | Brushed (Coreless) | 2.087" (53.00mm) | 2.25lbft (10.0Nm) | 4.49lbf (20.0N) | 4.33 in/s (110.0 mm/s) | 50% | 12VDC | Lead Screw | 40µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-27PT-53Micro/Mini Linear Servo Actuator |
2,728 | 209.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 2.087" (53.00mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Lead Screw | 40µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-27F-53Micro/Mini Linear Servo Actuator |
4,904 | 209.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 2.087" (53.00mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Lead Screw | 40µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-78PT-53Micro/Mini Linear Servo Actuator |
2,728 | 219.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 2.087" (53.00mm) | 35.07lbf (156.0N) | - | 0.34 in/s (8.5 mm/s) | 50% | 12VDC | Lead Screw | 40µm | - | Integrated Controller | 50 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-42F-53Micro/Mini Linear Servo Actuator |
1,936 | 219.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 2.087" (53.00mm) | 18.88lbf (84.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Lead Screw | 40µm | - | Integrated Controller | 20 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-42PT-53Micro/Mini Linear Servo Actuator |
4,883 | 219.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 2.087" (53.00mm) | 18.88lbf (84.0N) | - | 0.67 in/s (17.1 mm/s) | 50% | 12VDC | Lead Screw | 40µm | - | Integrated Controller | 20 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|

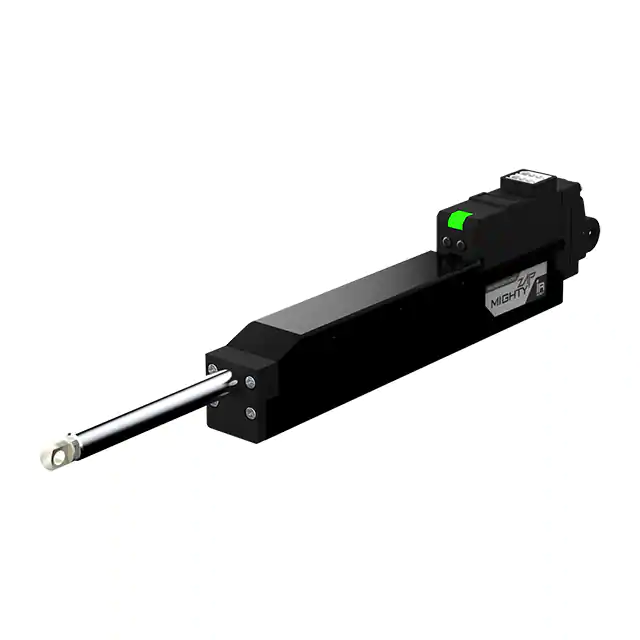

12LF-27PT-90Micro/Mini Linear Servo Actuator |
4,811 | 229.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 3.563" (90.50mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Lead Screw | 50µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
|
|
12LF-27F-90Micro/Mini Linear Servo Actuator |
1,330 | 229.00 |
|
Datasheet |
12Lf (Servo) | Box | Active | Linear Actuator | Brushed (Coreless) | 3.563" (90.50mm) | 12.14lbf (54.0N) | - | 1.26 in/s (32.0 mm/s) | 50% | 12VDC | Lead Screw | 50µm | - | Integrated Controller | 10 | Potentiometer | Cable with Connector | -10°C ~ 60°C | IP54 - Dust Protected, Water Resistant | CE |
