DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS05SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
2,920 | 2.25 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

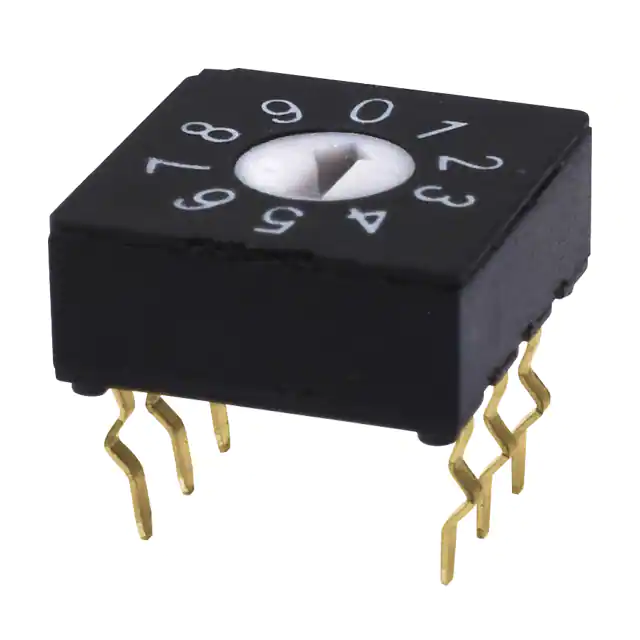

RDS-10S-1045-DSWITCH ROTARY DIP BCD 0.025A 24V |
113 | 2.32 |
|
Datasheet |
RDS-1045 | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
EDS02SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
334 | 1.89 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS06SGNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
3,336 | 2.29 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS06SGRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,800 | 2.29 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

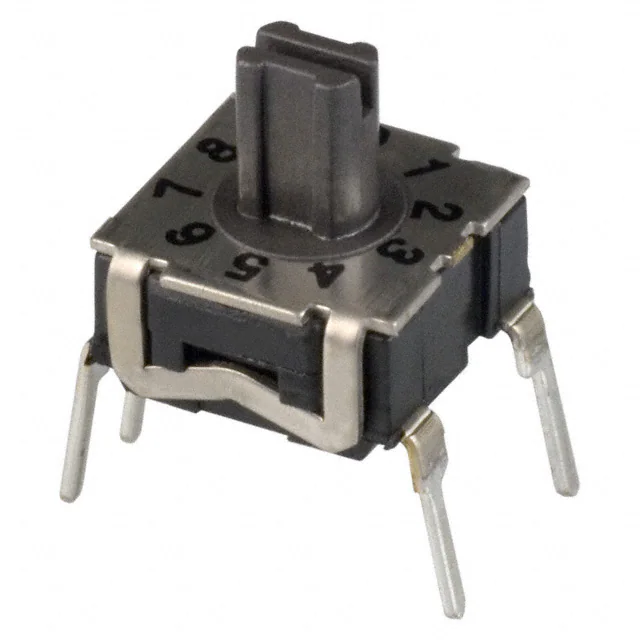

RTE1002N14SWITCH ROTARY DIP BCD 0.1A 30V |
1,850 | 3.53 |
|
Datasheet |
RTE | Tube | Active | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
EDS10SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
700 | 2.81 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
5161390-3SWITCH SLIDE DIP SPST 0.025A 50V |
2,824 | 2.93 |
|
Datasheet |
DIP | Box | Active | SPST | 3 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
EDS06SNRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,656 | 2.35 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
EDS06SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
1,350 | 2.35 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDS02SGRSTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
373 | 1.96 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP02SGLNNTU04SWITCH PIANO DIP SPST 0.025A 24V |
569 | 2.90 |
|
Datasheet |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAS2110ETNOMARKING-HTSWITCH SLIDE DIP SPST 0.025A 24V |
1,003 | 2.46 |
|
Datasheet |
KAS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
EDSP02SGLFNTU04SWITCH PIANO DIP SPST 0.025A 24V |
758 | 2.90 |
|
Datasheet |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

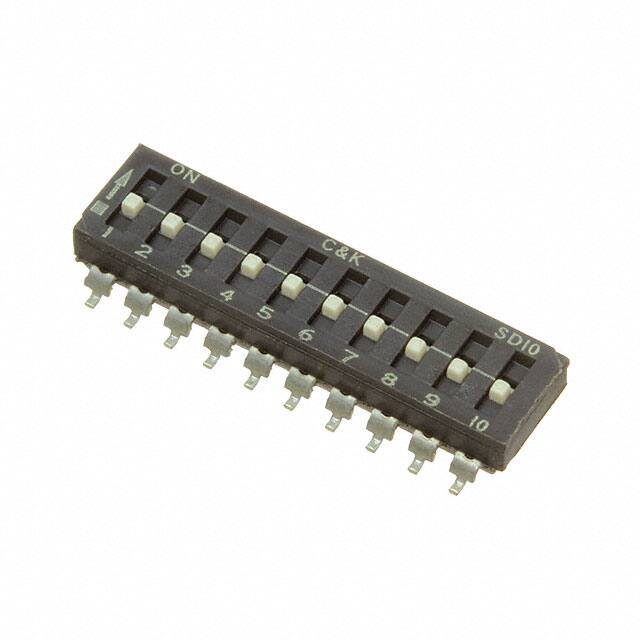

SD10H1SBDSWITCH SLIDE DIP SPST 0.1A 25V |
132 | 5.66 |
|
Datasheet |
SD | Tube | Active | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
EDS04SNRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
984 | 2.03 |
|
Datasheet |
EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP02SGRNSTU04SWITCH PIANO DIP SPST 0.025A 24V |
766 | 2.97 |
|
Datasheet |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
RD10RA8RVATSW ROTARY DIP OCTAL 0.15A 50V |
408 | 3.23 |
|
Datasheet |
RD10 | Tube | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
EDS04SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V |
472 | 2.09 |
|
Datasheet |
EDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

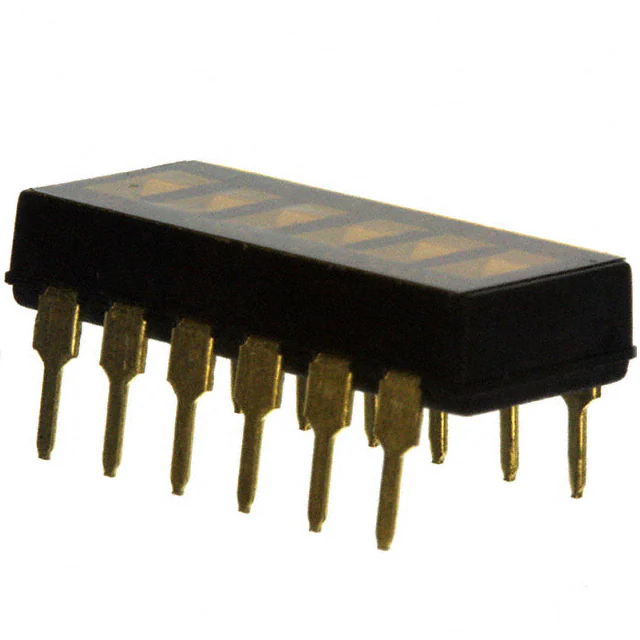

SDA06H0BSWITCH SLIDE DIP SPST 0.025A 24V |
6,638 | 1.87 |
|
Datasheet |
SDA | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
