DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6HR-6104-PMSWITCH PIANO DIP SPST 0.025A 24V |
807 | 5.98 |
|
Datasheet |
A6HR | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6K-164RSSWITCH ROTARY DIP HEX 0.025A 24V |
120 | 6.88 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
90HBJ05PTSWITCH SLIDE DIP SPST 0.025A 24V |
229 | 2.32 |
|
Datasheet |
90HB | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6RS-161RSSWITCH ROTARY DIP HEX 0.025A 24V |
194 | 5.90 |
|
Datasheet |
A6RS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
|
428521320811SW ROTARY DIP BCD COMP 0.15A 24V |
1,133 | 5.46 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
428521520810SWITCH ROTARY DIP BCD 0.15A 24V |
396 | 7.46 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428521320817SW ROTARY DIP HEX COMP 0.15A 24V |
186 | 7.03 |
|
Datasheet |
WS-ROSV | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
90HBJ03PTSWITCH SLIDE DIP SPST 0.025A 24V |
143 | 2.32 |
|
Datasheet |
90HB | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
94HCB08WTSWITCH ROTARY DIP OCTAL 0.1A 50V |
4,829 | 5.69 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
94HBB16TSWITCH ROTARY DIP HEX 0.1A 50V |
4,515 | 3.33 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.495" (12.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
94HAC10TSW ROTARY DIP BCD COMP 0.1A 50V |
3,713 | 5.69 |
|
Datasheet |
94H | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
90HBJ06PTSWITCH SLIDE DIP SPST 0.025A 24V |
3,204 | 2.37 |
|
Datasheet |
90HB | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
94HBB08WTSWITCH ROTARY DIP OCTAL 0.1A 50V |
1,083 | 5.69 |
|
Datasheet |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
A6A-16RSWITCH ROTARY DIP HEX 0.1A 28V |
2,145 | 8.24 |
|
Datasheet |
A6A | Bulk | Active | Hexadecimal | 16 | 100mA | 28VDC | Rotary for Tool | Raised | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
94HAB16JTSWITCH ROTARY DIP HEX 0.1A 50V |
354 | 6.37 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.250" (6.35mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
A6A-16CSW ROTARY DIP HEX COMP 0.1A 28V |
253 | 4.98 |
|
Datasheet |
A6A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 28VDC | Rotary for Tool | Raised | - | - | 0.295" (7.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|

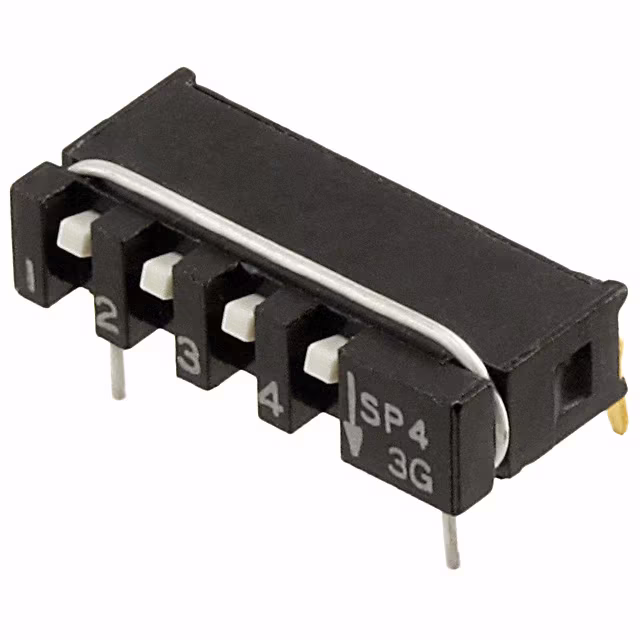

SPA04ABSWITCH SLIDE DIP SPST 0.01A 20V |
223 | 4.83 |
|
Datasheet |
SPA | Tube | Active | SPST | 4 | 10mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 60°C |
|
A6A-16RWSWITCH ROTARY DIP HEX 0.1A 28V |
111 | 6.76 |
|
Datasheet |
A6A | Bulk | Active | Hexadecimal | 16 | 100mA | 28VDC | Rotary with Knob | Raised | - | - | 0.531" (13.49mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -10°C ~ 70°C |
|
A6HR-4104SWITCH PIANO DIP SPST 0.025A 24V |
333 | 3.16 |
|
Datasheet |
A6HR | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6K-162RFSWITCH ROTARY DIP HEX 0.025A 24V |
111 | 7.43 |
|
Datasheet |
A6K | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
