DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

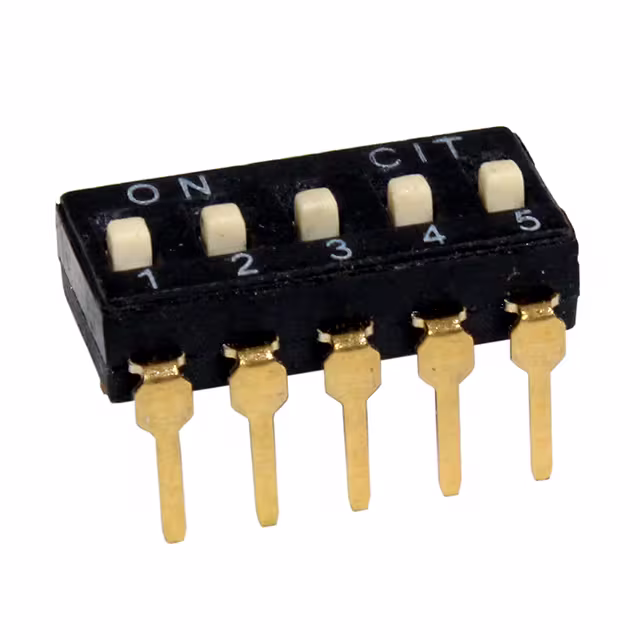

KT05EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
131 | 1.34 |
|
Datasheet |
KT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

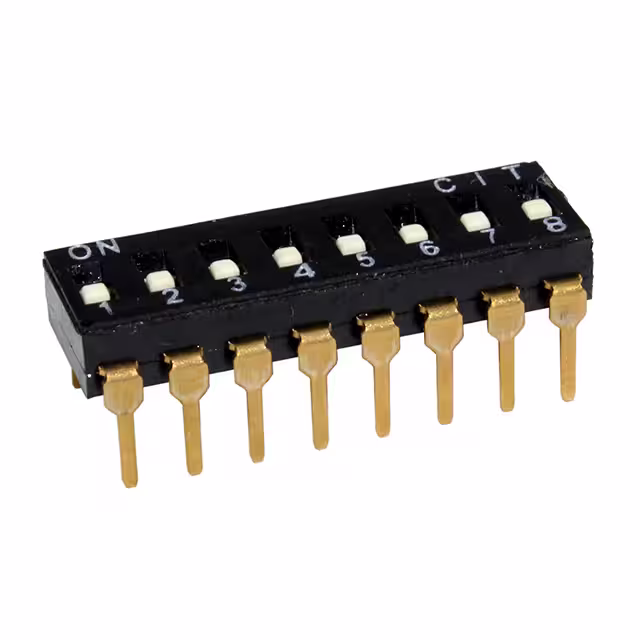

KT08RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
206 | 1.47 |
|
Datasheet |
KT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KR07ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,296 | 1.37 |
|
Datasheet |
KR | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT07EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
296 | 1.52 |
|
Datasheet |
KT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ12RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
255 | 2.21 |
|
Datasheet |
KJ | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

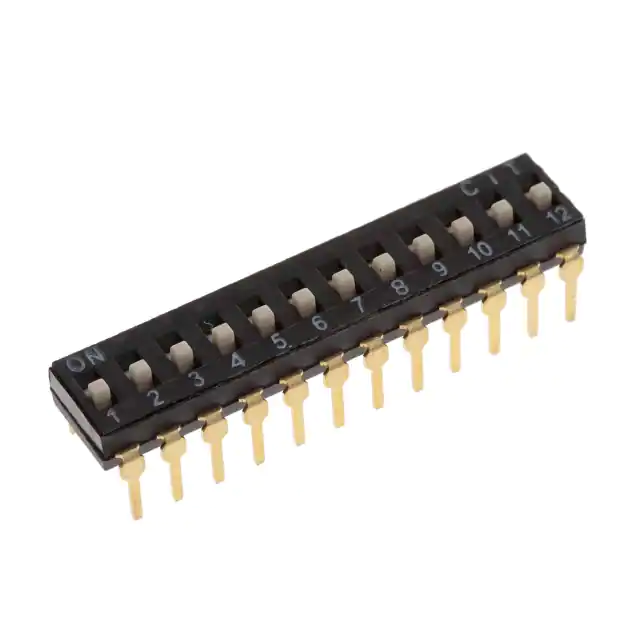

KT12EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
239 | 2.20 |
|
Datasheet |
KT | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP08ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
398 | 1.39 |
|
Datasheet |
KP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ05RTTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
345 | 1.37 |
|
Datasheet |
KJ | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

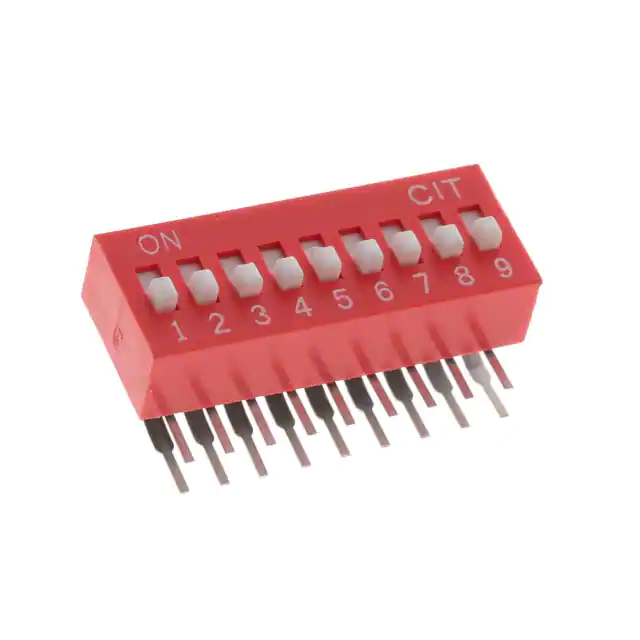

KR09ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
270 | 1.52 |
|
Datasheet |
KR | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP10RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
368 | 1.55 |
|
Datasheet |
KP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
