DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP12RTSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
3,023 | 1.16 |
|
Datasheet |
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP12ETSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
3,598 | 1.16 |
|
Datasheet |
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KR10ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,541 | 1.18 |
|
Datasheet |
KR | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KR10RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,919 | 1.18 |
|
Datasheet |
KR | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KE06RXGRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,651 | 1.18 |
|
Datasheet |
KE | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

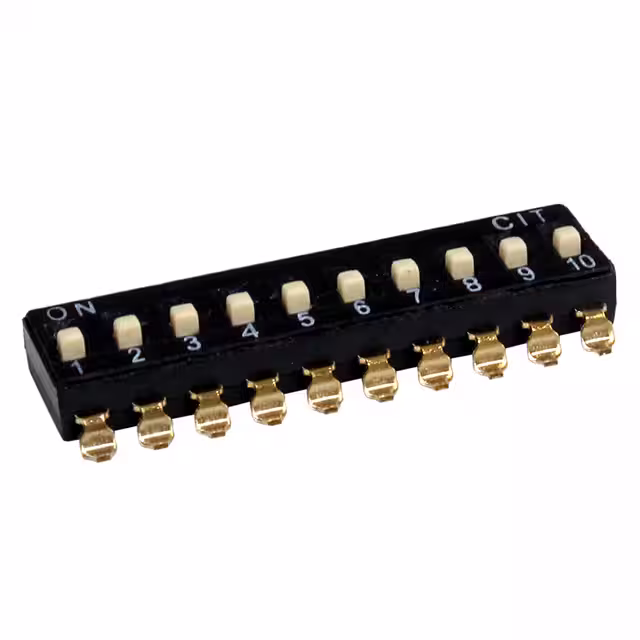

KJ10EXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,205 | 1.20 |
|
Datasheet |
KJ | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ10RXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,734 | 1.20 |
|
Datasheet |
KJ | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR12ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,897 | 1.21 |
|
Datasheet |
KR | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KR12RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,216 | 1.21 |
|
Datasheet |
KR | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KE08RXGRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,236 | 1.29 |
|
Datasheet |
KE | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
