DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

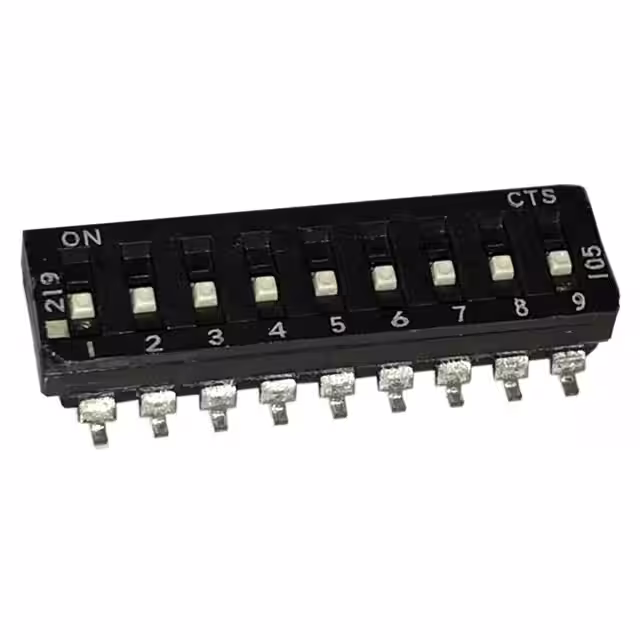

219-9LPSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,774 | 0.78 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-9MSRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,898 | 0.78 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

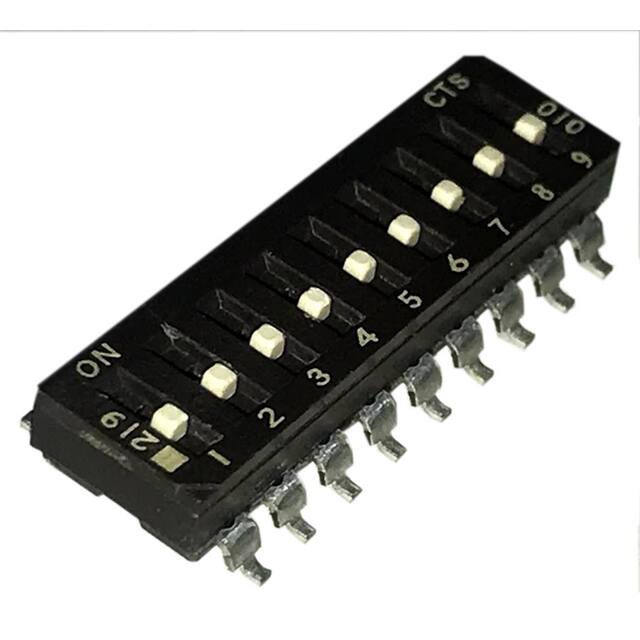

219-9MSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,167 | 0.78 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
204-4LPSTRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
4,596 | 0.78 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.359" (9.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

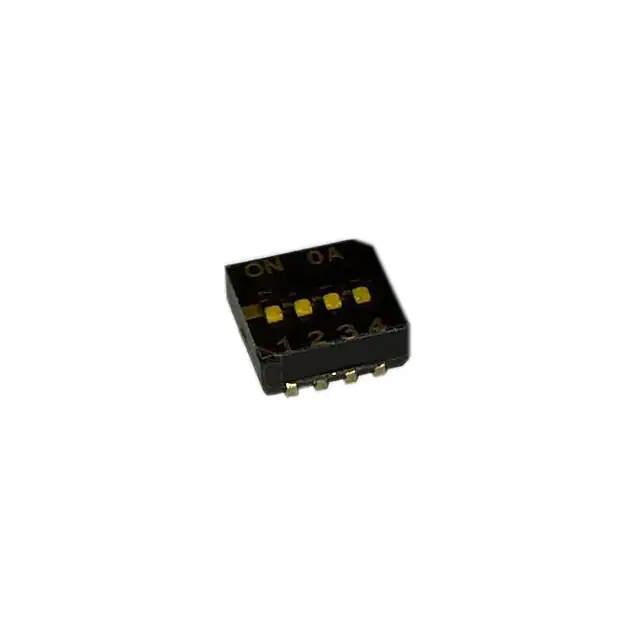

218-4LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,369 | 0.84 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

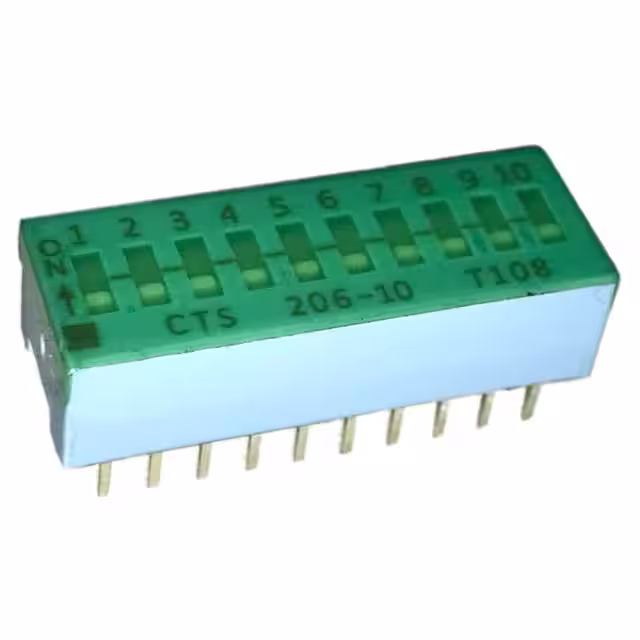

206-10LPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,059 | 0.78 |
|
Datasheet |
206 | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
204-3STRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,189 | 0.91 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

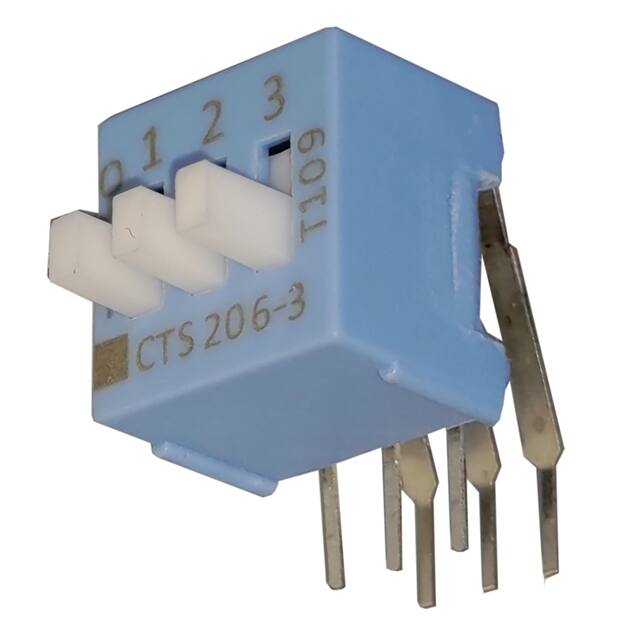

206-3RAESSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
4,768 | 0.78 |
|
Datasheet |
206RA | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

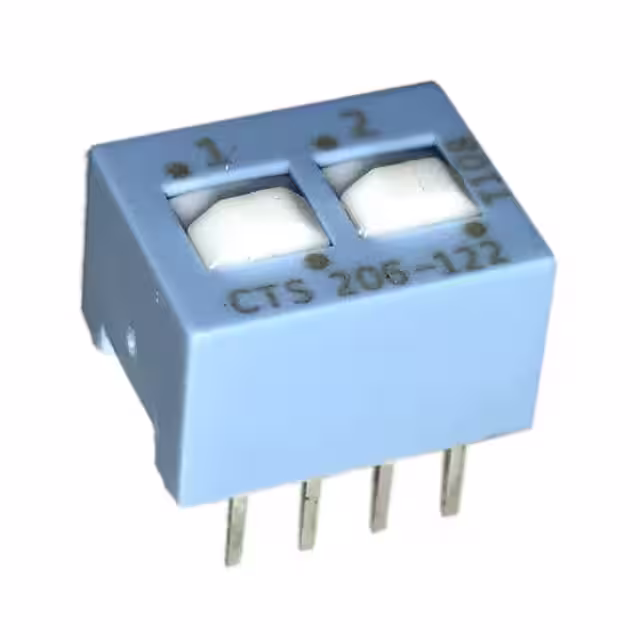

206-122SSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
1,273 | 0.78 |
|
Datasheet |
206 | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

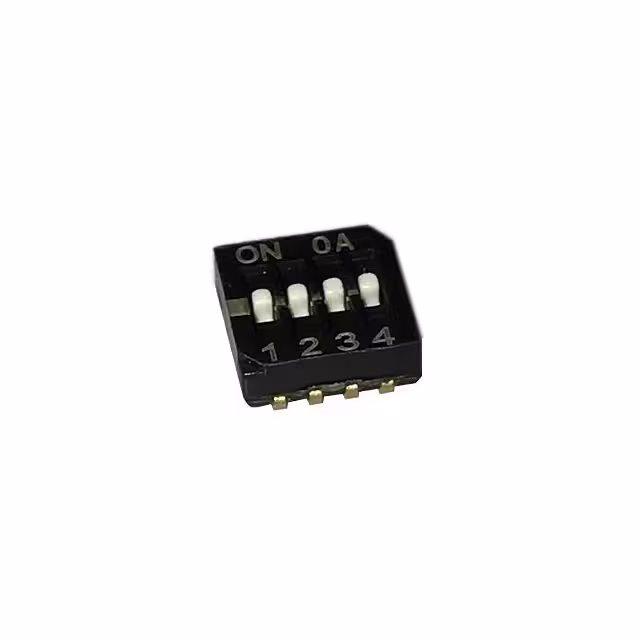

218-4LPSJSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,063 | 0.79 |
|
Datasheet |
218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
