DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

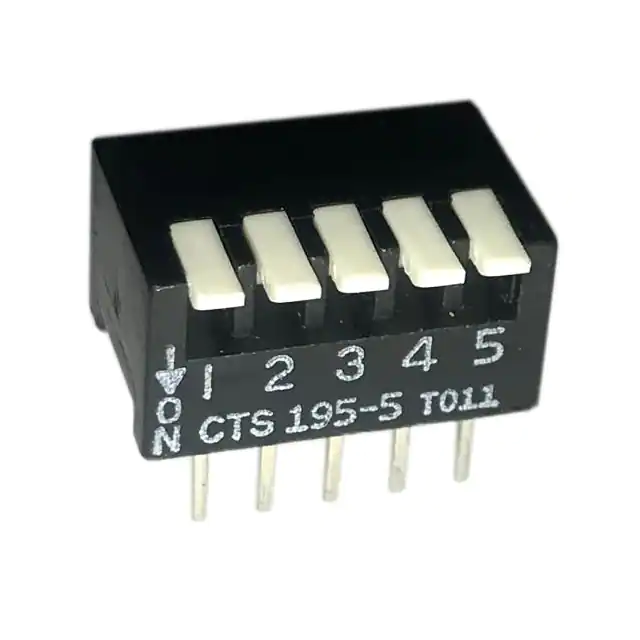

195-5MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
4,888 | 0.64 |
|
Datasheet |
195 | Tube | Active | SPST | 5 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

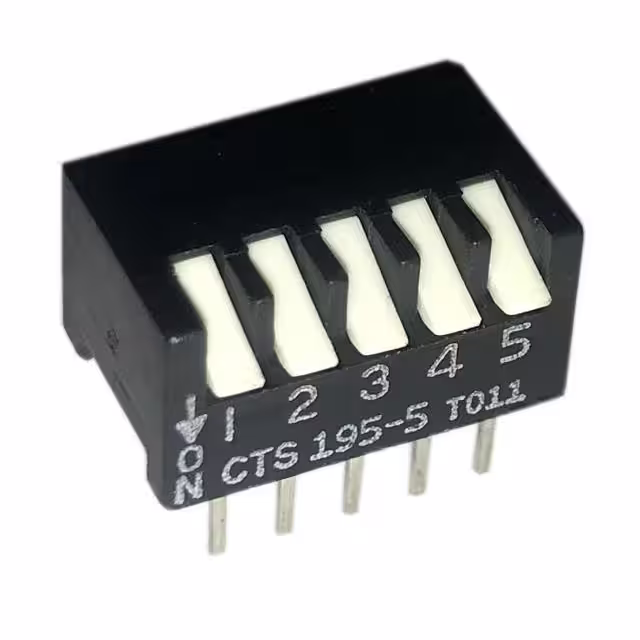

195-5MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
3,806 | 0.64 |
|
Datasheet |
195 | Tube | Active | SPST | 5 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

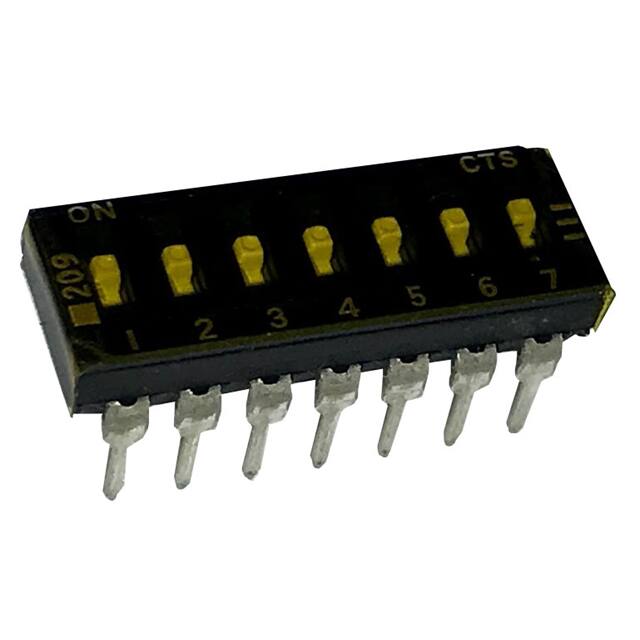

209-7LPSTDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,364 | 0.64 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
209-7LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,404 | 0.64 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

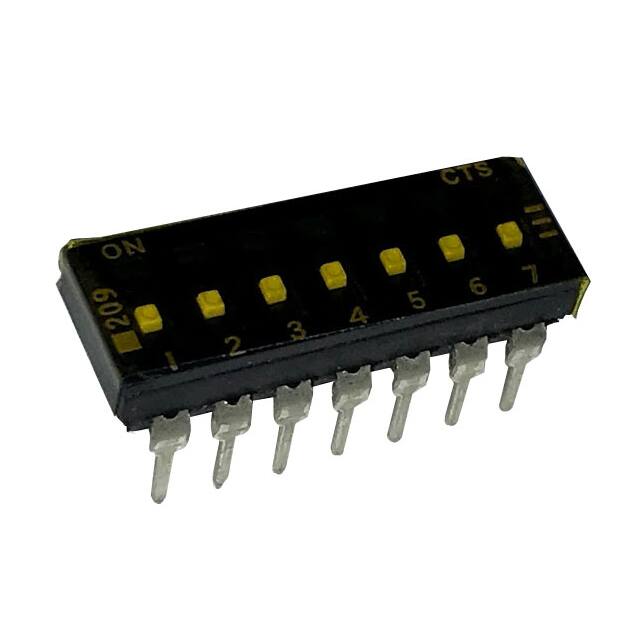

209-7LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,927 | 0.64 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
209-7MSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,424 | 0.64 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-7MSTDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,341 | 0.64 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-7MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,431 | 0.64 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-7MSTFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,135 | 0.64 |
|
Datasheet |
209 | Tube | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

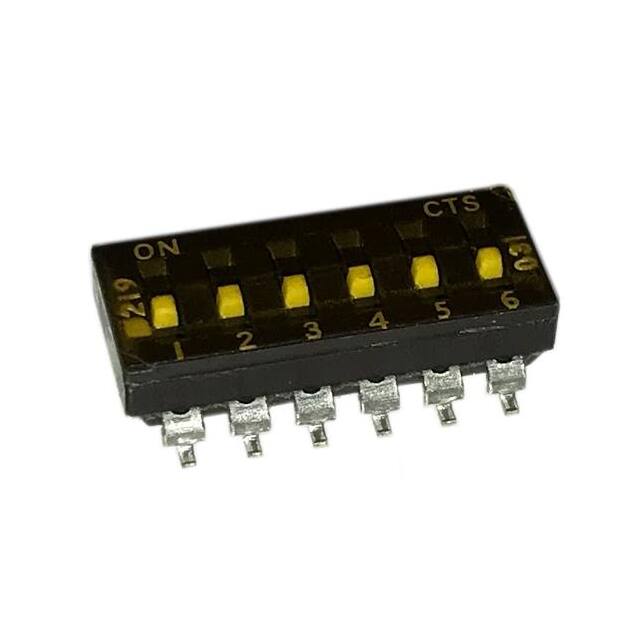

219-6MSTRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,382 | 0.64 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
