DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

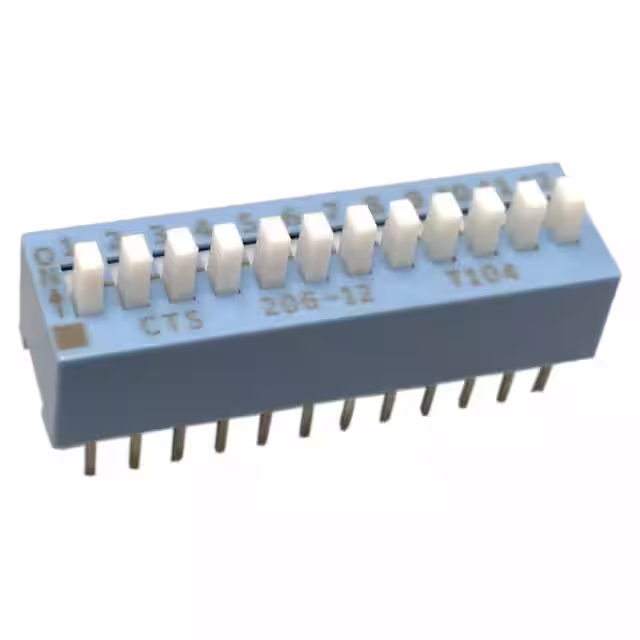

206-12ESWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,735 | 1.02 |
|
Datasheet |
206 | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
204-214STRSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
2,348 | 1.02 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-312SSWITCH SLIDE DIP 3PST 0.05A 24V CTS Electrocomponents |
4,354 | 1.02 |
|
Datasheet |
206 | Tube | Active | 3PST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
194-9MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,574 | 1.02 |
|
Datasheet |
194 | Tube | Active | SPST | 9 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
194-9MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,689 | 1.02 |
|
Datasheet |
194 | Tube | Active | SPST | 9 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

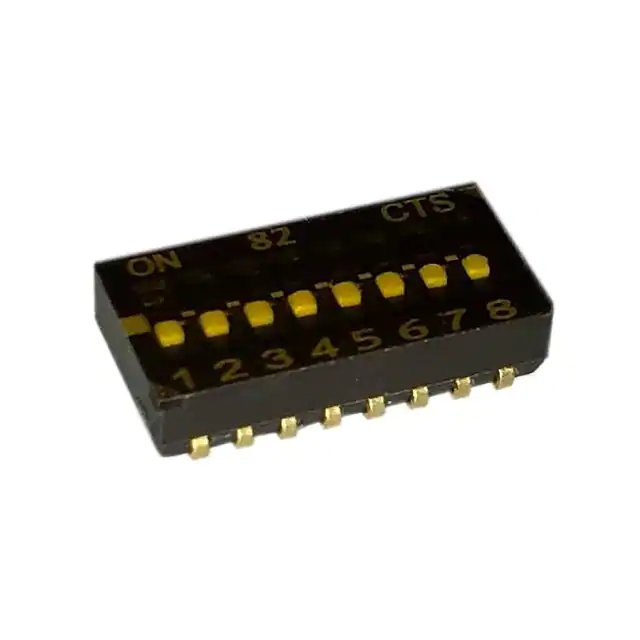

218-8LPSTJFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
3,030 | 1.03 |
|
Datasheet |
218 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

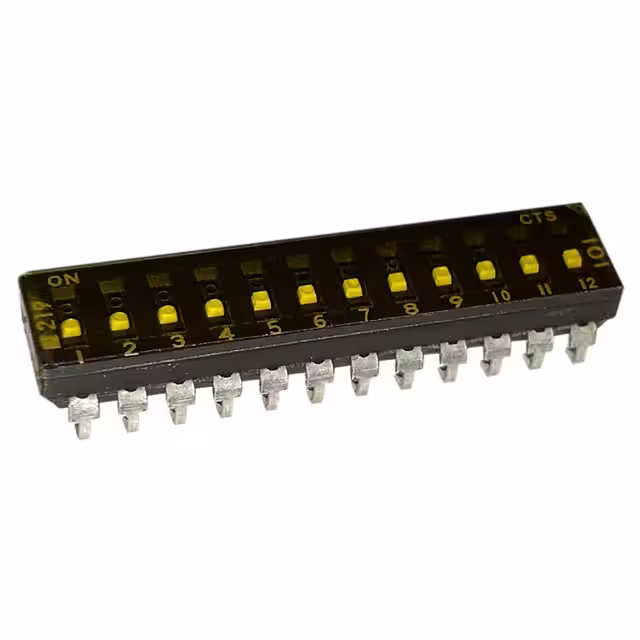

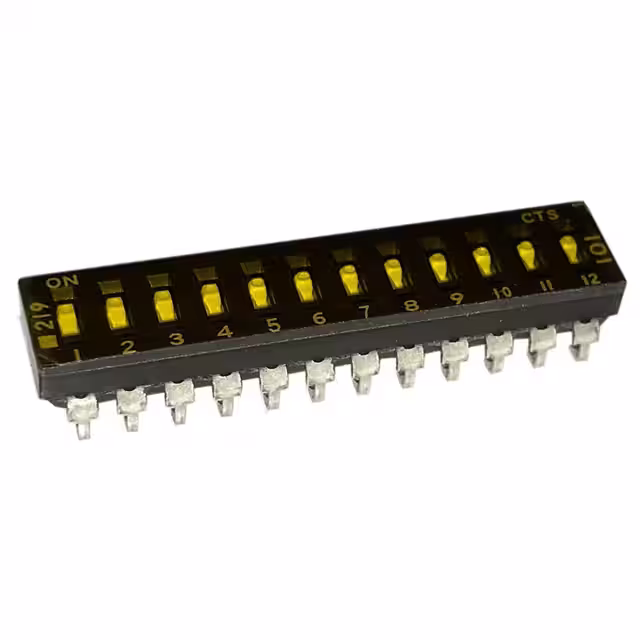

219-12LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,038 | 1.03 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,101 | 1.03 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

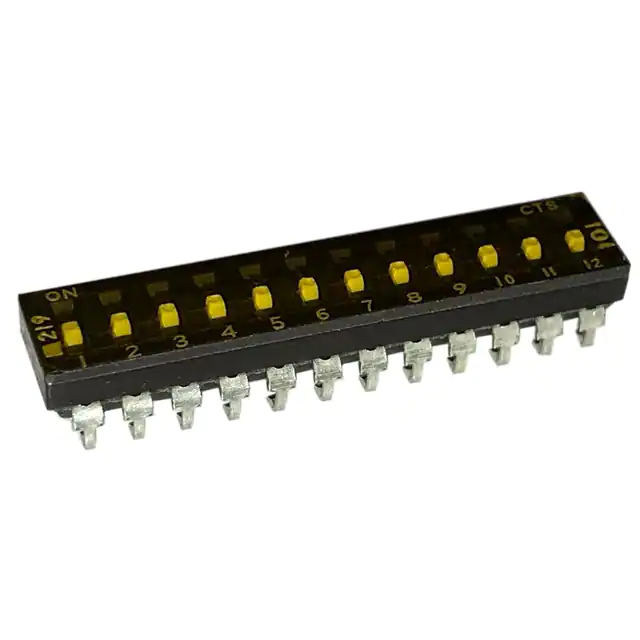

219-12MSTJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,393 | 1.03 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-12MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,663 | 1.03 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
