DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-122RASSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,177 | 0.93 |
|
Datasheet |
206RA | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
206-123STSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
3,459 | 0.93 |
|
Datasheet |
206 | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

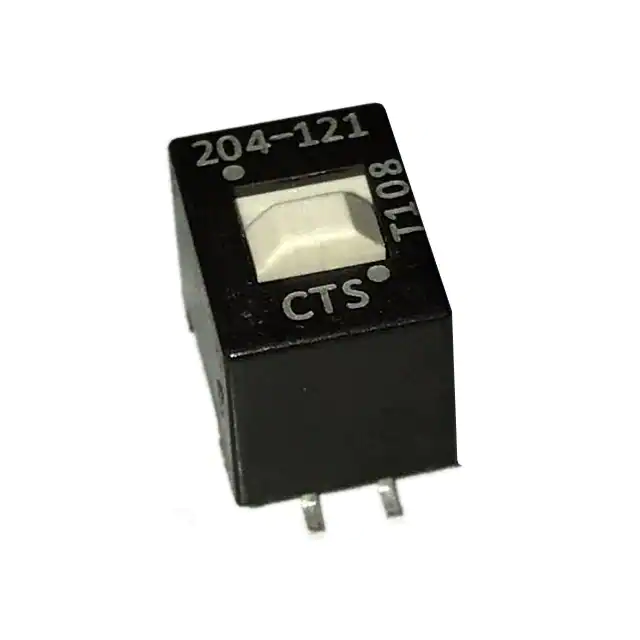

204-121SSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,500 | 0.94 |
|
Datasheet |
204 | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
204-8STRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
1,126 | 0.94 |
|
Datasheet |
204 | Tape & Reel (TR) | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

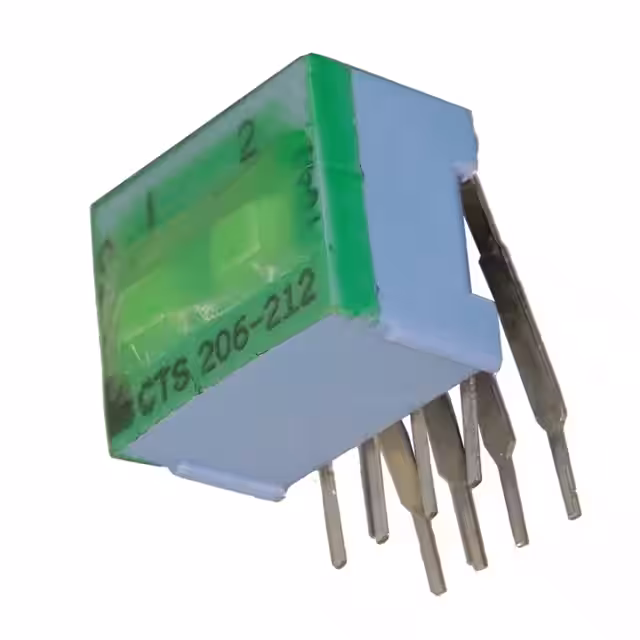

206-212RASTSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
1,439 | 0.94 |
|
Datasheet |
206RA | Tube | Active | DPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-213RASWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
4,964 | 0.94 |
|
Datasheet |
206RA | Tube | Active | DPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

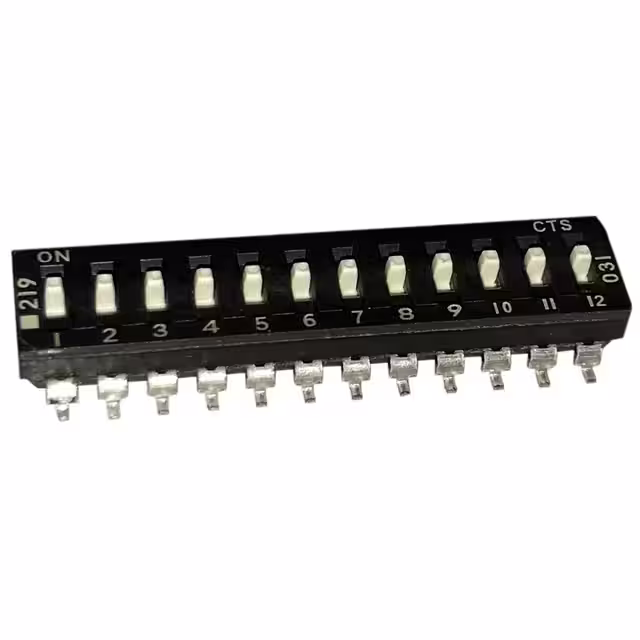

219-12ESRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,416 | 0.94 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

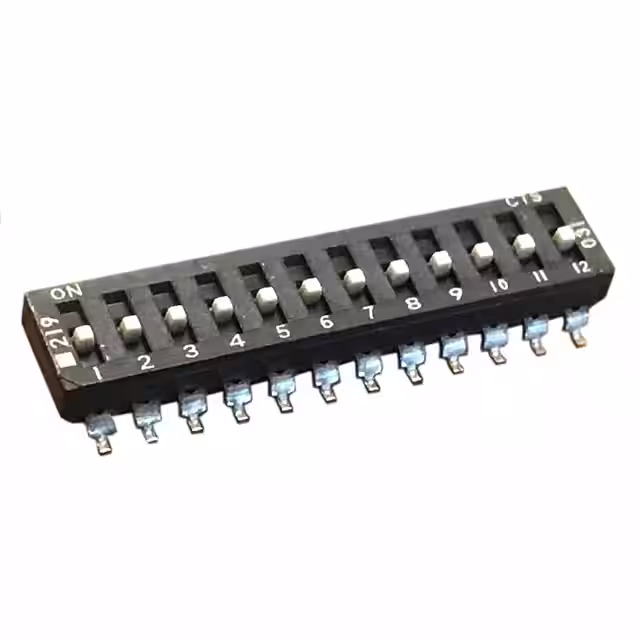

219-12ESRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,894 | 0.94 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

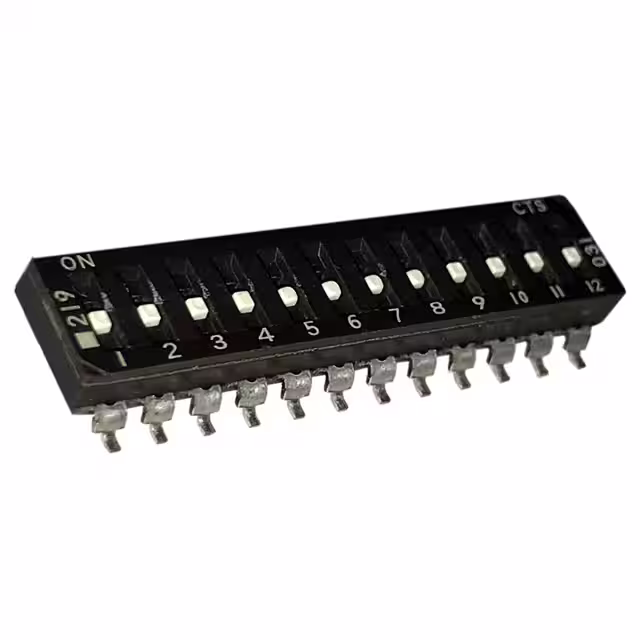

219-12LPSRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,225 | 0.94 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,444 | 0.94 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
