DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

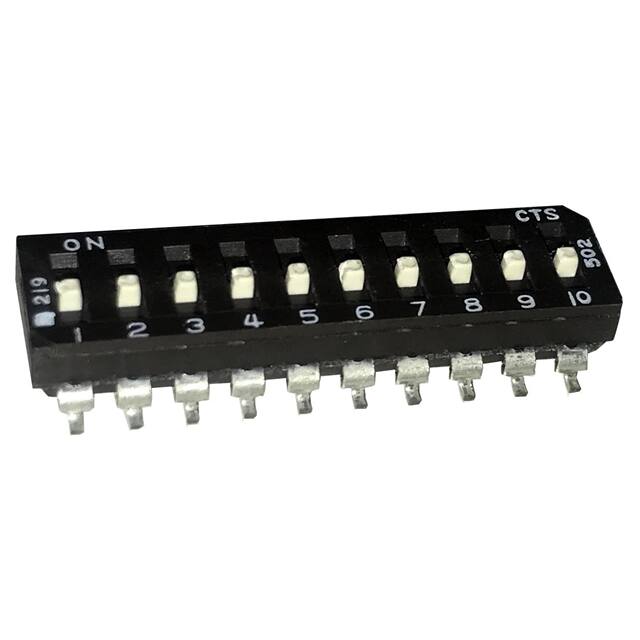

219-10ESRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,271 | 0.83 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

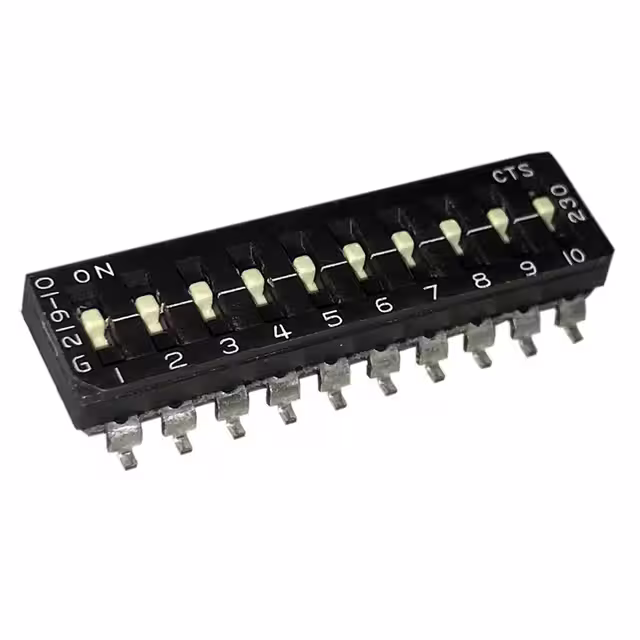

219-10LPSRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,113 | 0.83 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

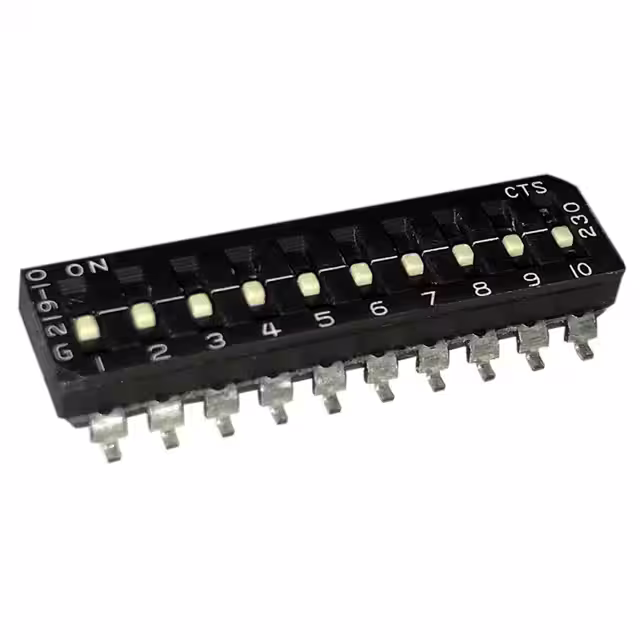

219-10LPSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,754 | 0.83 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

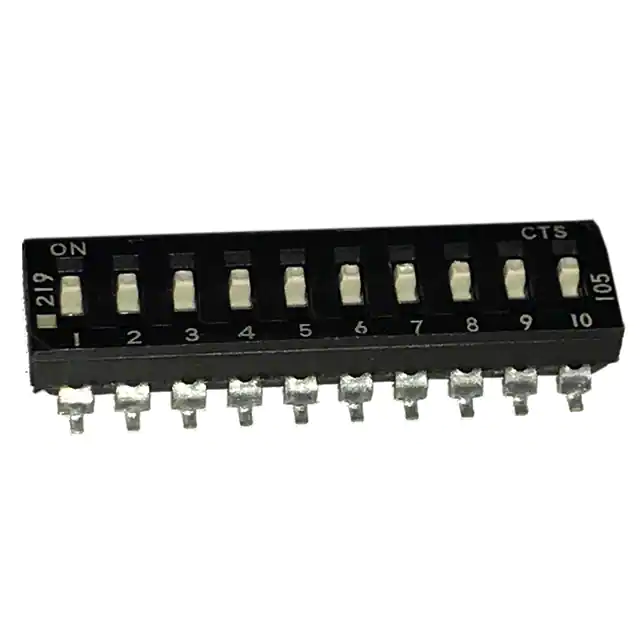

219-10MSRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,429 | 0.83 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

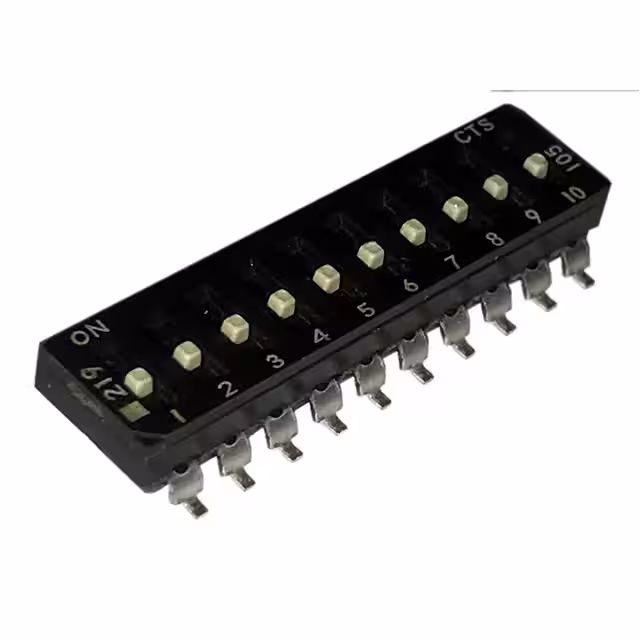

219-10MSRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,885 | 0.83 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

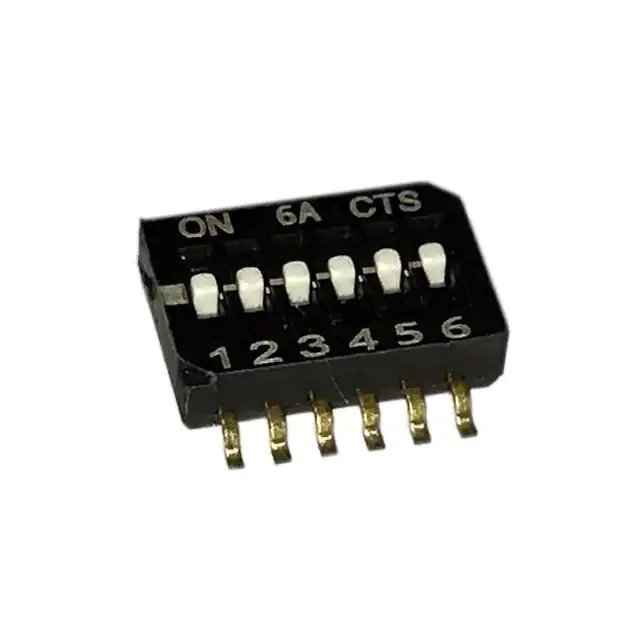

218-6LPSSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,138 | 0.83 |
|
Datasheet |
218 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

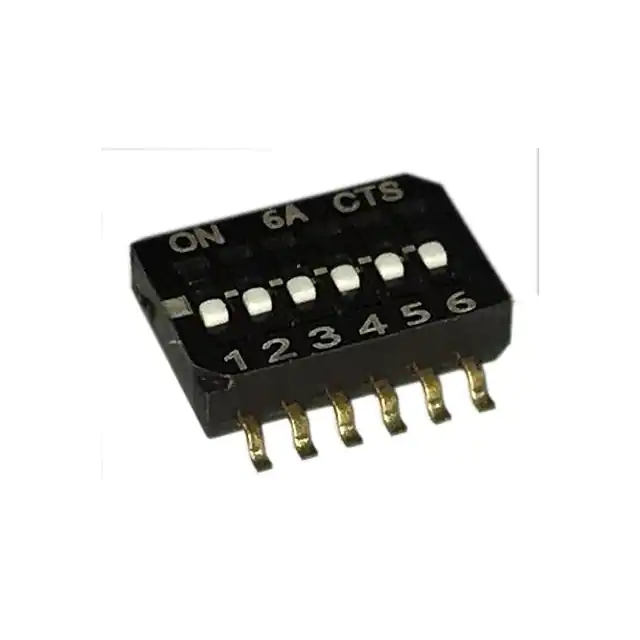

218-6LPSFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
1,036 | 0.83 |
|
Datasheet |
218 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
206-123SWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
4,717 | 0.83 |
|
Datasheet |
206 | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-8RASWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
1,291 | 0.83 |
|
Datasheet |
206RA | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-212RASWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
4,786 | 0.84 |
|
Datasheet |
206RA | Tube | Active | DPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
