DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CJS-1200TBSWITCH SLIDE SPDT 100MA 6V |
37,306 | 0.81 |
|
Datasheet |
CJS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | Tape Seal | -40°C ~ 85°C |
|
CJS-1200TASWITCH SLIDE SPDT 100MA 6V |
28,111 | 0.81 |
|
Datasheet |
CJS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|
206-5STSWITCH SLIDE DIP SPST 0.05A 24V |
13,295 | 1.06 |
|
Datasheet |
206 | Tube | Active | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-8STSWITCH SLIDE DIP SPST 0.05A 24V |
26,700 | 1.09 |
|
Datasheet |
206 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
218-2LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
8,759 | 1.08 |
|
Datasheet |
218 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
218-2LPSTRSWITCH SLIDE DIP SPST 0.025A 24V |
17,586 | 1.14 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-8LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
52,992 | 1.21 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-3STSWITCH SLIDE DIP SPST 0.05A 24V |
4,927 | 1.19 |
|
Datasheet |
204 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-6STSWITCH SLIDE DIP SPST 0.05A 24V |
7,546 | 1.08 |
|
Datasheet |
206 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-8MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
26,688 | 1.21 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
CS-4-12XTASWITCH ROTARY DIP SPDT 0.1A 16V |
8,927 | 1.58 |
|
Datasheet |
CS-4 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | - | Yes | - | -25°C ~ 70°C |
|
219-6MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,412 | 0.64 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-8LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
10,204 | 1.21 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-4STSWITCH SLIDE DIP SPST 0.05A 24V |
8,197 | 1.19 |
|
Datasheet |
204 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

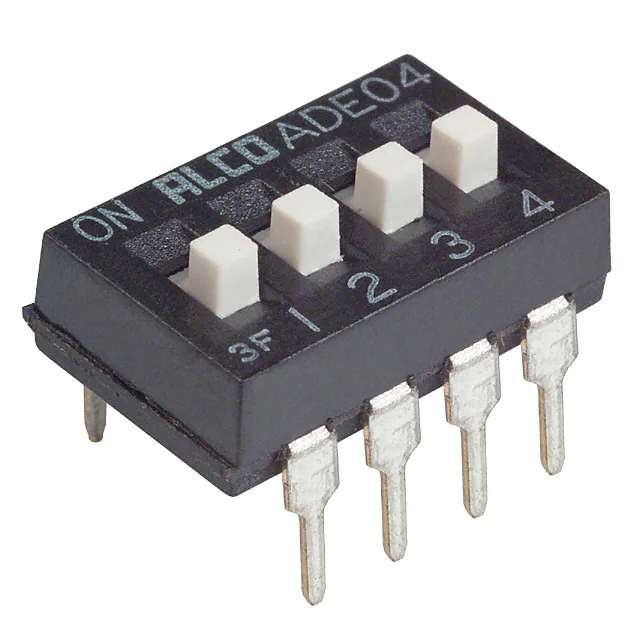

1825057-3SWITCH SLIDE DIP SPST 0.1A 24V |
27,895 | 1.08 |
|
Datasheet |
ADE | Tube | Active | SPST | 4 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
.jpg)
|
218-4LPSTRSWITCH SLIDE DIP SPST 0.025A 24V |
9,707 | 1.29 |
|
Datasheet |
218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

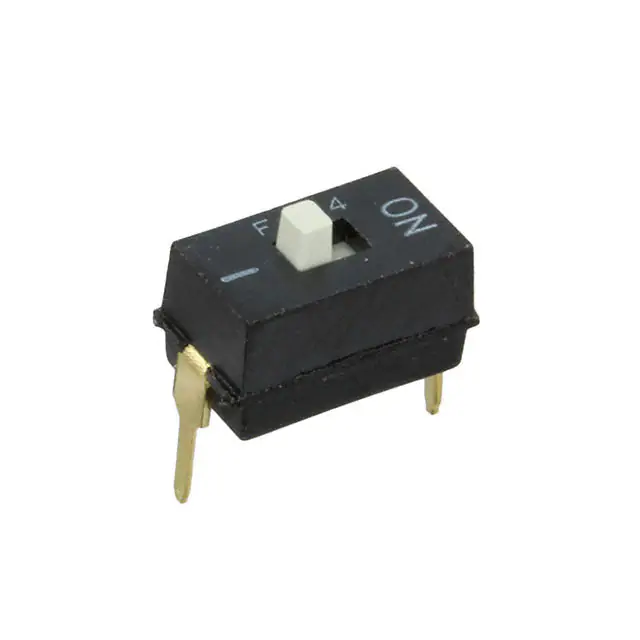

A6TN-1104SWITCH SLIDE DIP SPST 0.025A 24V |
2,830 | 1.13 |
|
Datasheet |
A6TN | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
CHS-01TBSWITCH SLIDE DIP SPST 0.1A 6V |
35,939 | 0.92 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
CHS-01TASWITCH SLIDE DIP SPST 0.1A 6V |
14,636 | 0.92 |
|
Datasheet |
CHS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
.jpg)
|
219-10MSTSWITCH SLIDE DIP SPST 0.1A 20V |
9,659 | 1.30 |
|
Datasheet |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
