DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

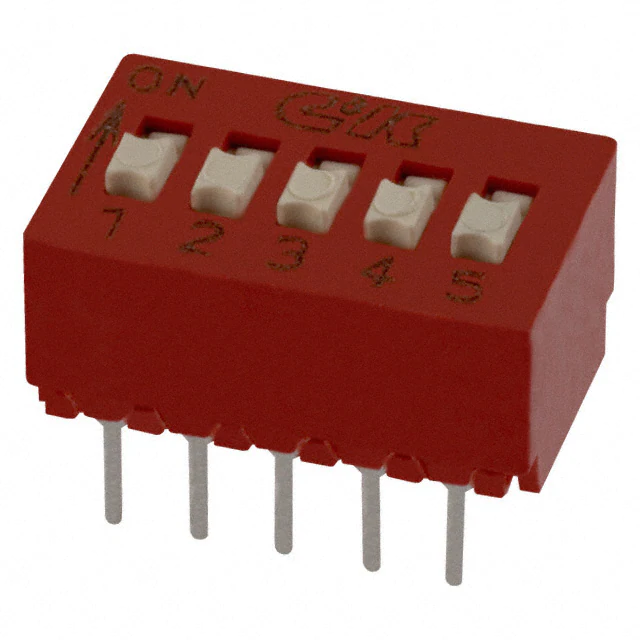

BD05SWITCH SLIDE DIP SPST 0.1A 5V |
1,835 | 1.92 |
|
Datasheet |
BD | Tube | Active | SPST | 5 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

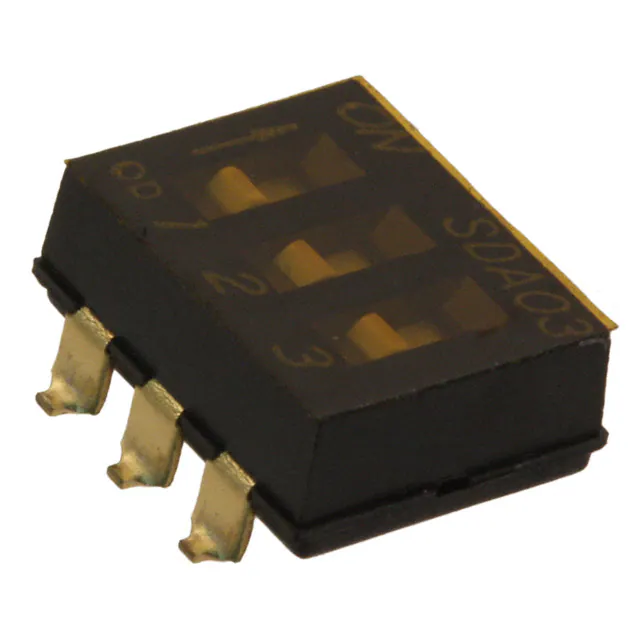

SDA03H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
11,340 | 2.05 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

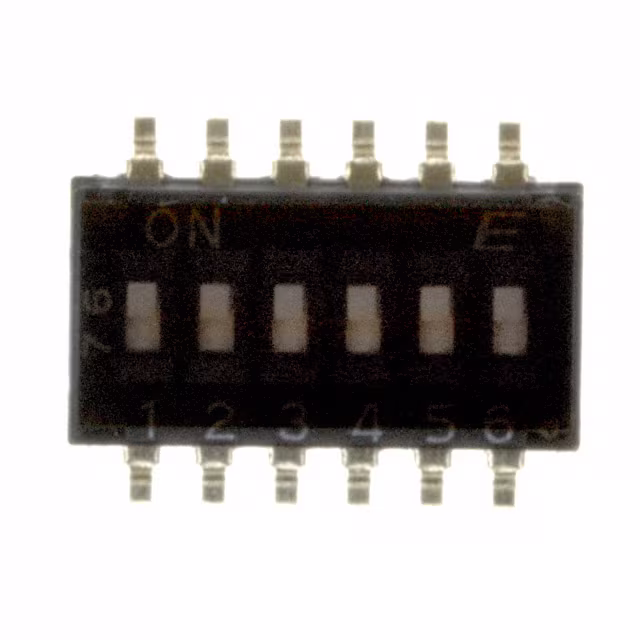

KAN1106RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,804 | 3.25 |
|
Datasheet |
KAN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
418121270808SWITCH SLIDE DIP SPST 0.025A 24V |
9,190 | 3.20 |
|
Datasheet |
WS-DISV | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CES-0802MCSWITCH SLIDE DIP SPST 0.1A 6V |
2,769 | 1.99 |
|
Datasheet |
CES | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.472" (12.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DHN04TVSWITCH SLIDE DIP SPST 0.025A 24V |
1,908 | 2.29 |
|
- |
DHN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
A6SN-3104SWITCH SLIDE DIP SPST 0.025A 24V |
180 | 2.63 |
|
Datasheet |
A6SN | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
BPA03BSWITCH PIANO DIP SPST 0.1A 5V |
918 | 1.96 |
|
Datasheet |
BPA | Tube | Active | SPST | 3 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

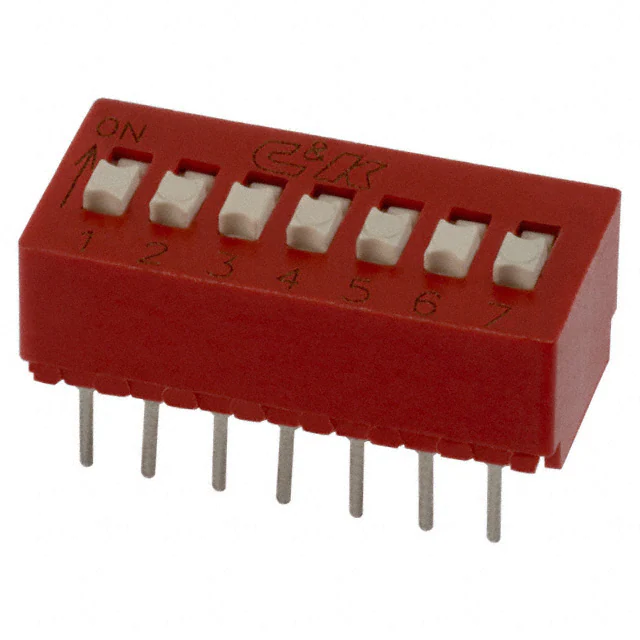

BD07SWITCH SLIDE DIP SPST 0.1A 5V |
793 | 2.03 |
|
Datasheet |
BD | Tube | Active | SPST | 7 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

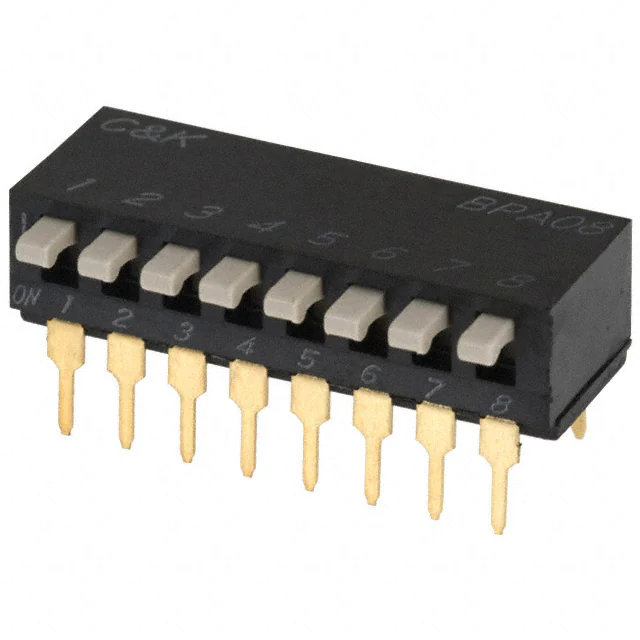

BPA08BSWITCH PIANO DIP SPST 0.1A 5V |
7,967 | 2.36 |
|
Datasheet |
BPA | Tube | Active | SPST | 8 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
1825006-7SWITCH SLIDE DIP SPST 0.025A 24V |
9,234 | 2.45 |
|
Datasheet |
GDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6S-5102-HSWITCH SLIDE DIP SPST 0.025A 24V |
707 | 2.74 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
A6H-2101-R100SWITCH SLIDE DIP SPST 0.025A 24V |
1,170 | 2.56 |
|
Datasheet |
A6H | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -20°C ~ 70°C |
|

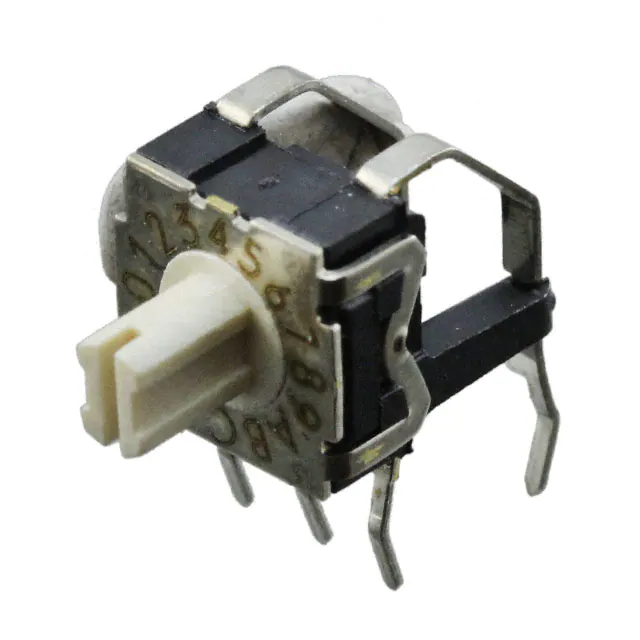

RTE1602V44SWITCH ROTARY DIP HEX 0.1A 30V |
2,918 | 3.17 |
|
Datasheet |
RTE | Bulk | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.335" (8.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
2-1571999-6SWITCH PIANO DIP SPST 0.025A 24V |
1,231 | 2.65 |
|
Datasheet |
ADP | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
BD02AVSWITCH SLIDE DIP SPST 0.1A 5V |
4,651 | 3.60 |
|
Datasheet |
BD | Tube | Active | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

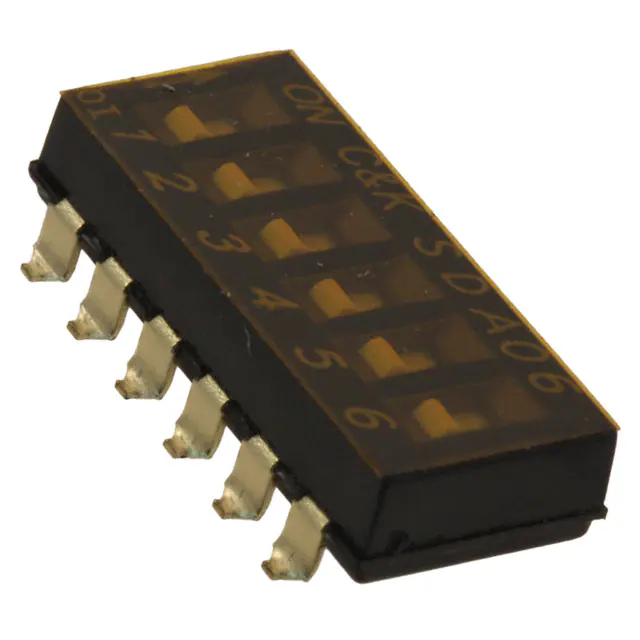

SDA06H0SBRSWITCH SLIDE DIP SPST 0.025A 24V |
4,583 | 2.30 |
|
Datasheet |
SDA | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
S-2031ASW ROTARY DIP BCD COMP 0.1A 5V |
1,355 | 2.32 |
|
Datasheet |
S-2000A | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
BD04AVSWITCH SLIDE DIP SPST 0.1A 5V |
2,819 | 3.64 |
|
Datasheet |
BD | Tube | Active | SPST | 4 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
A6S-8104-HSWITCH SLIDE DIP SPST 0.025A 24V |
74,405 | 3.60 |
|
Datasheet |
A6S-H | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
