DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65727SW ROTARY DIP OCT COMP 0.15A 24V APEM Inc. |
1,302 | 6.44 |
|
Datasheet |
PT65 | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65701L254SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
4,836 | 6.44 |
|
Datasheet |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65125SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
3,276 | 6.44 |
|
Datasheet |
PT65 | Tube | Active | BCD | 6 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

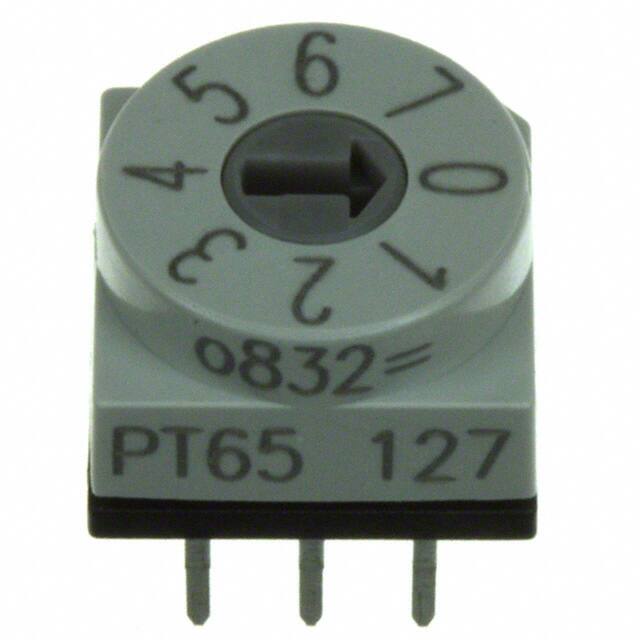

PT65127SW ROTARY DIP OCT COMP 0.15A 24V APEM Inc. |
4,871 | 6.44 |
|
Datasheet |
PT65 | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65726SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
4,021 | 6.53 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65721SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
2,525 | 6.53 |
|
Datasheet |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65712SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
3,561 | 6.53 |
|
Datasheet |
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
IKH0407000DIP SWITCH IKH HALF PITCH APEM Inc. |
3,703 | 0.00 |
|
Datasheet |
IKH | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.060" (1.52mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -20°C ~ 70°C |
|
|
IKH0803001DIP SWITCH IKH HALF PITCH APEM Inc. |
2,077 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P60A301L508SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
4,151 | 6.65 |
|
- |
P60A | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Stainless Steel | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
