DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

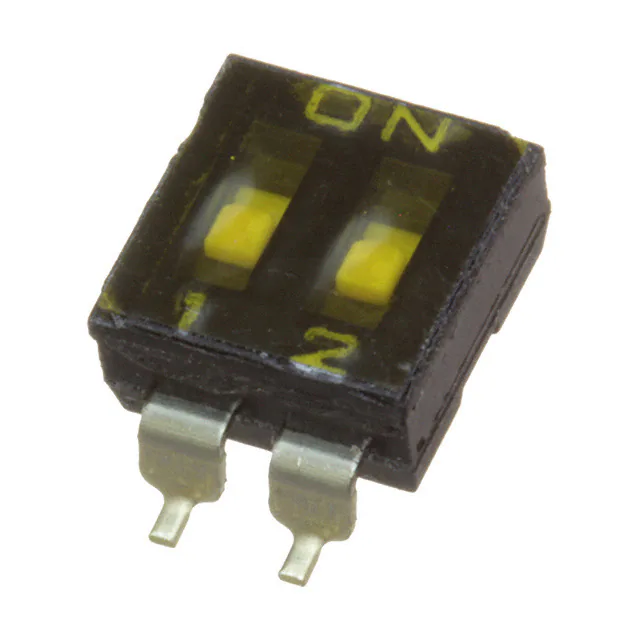

DMR02TSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
747 | 1.29 |
|
Datasheet |
DM | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

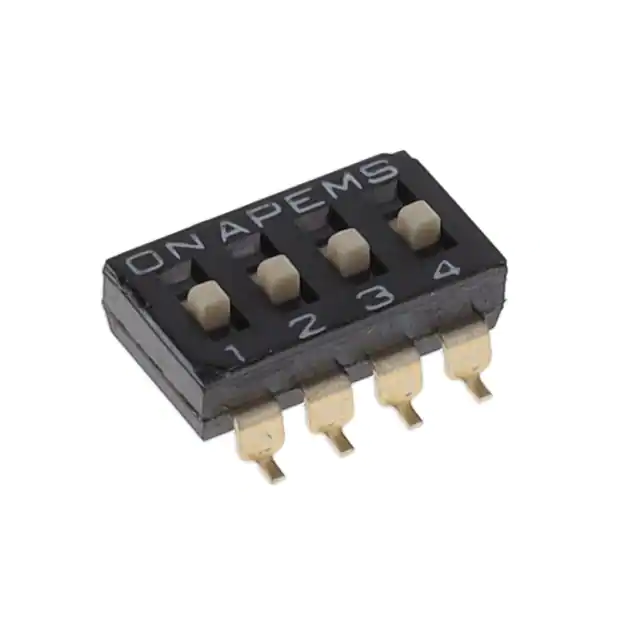

DM04SWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
1,625 | 1.45 |
|
Datasheet |
DM | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

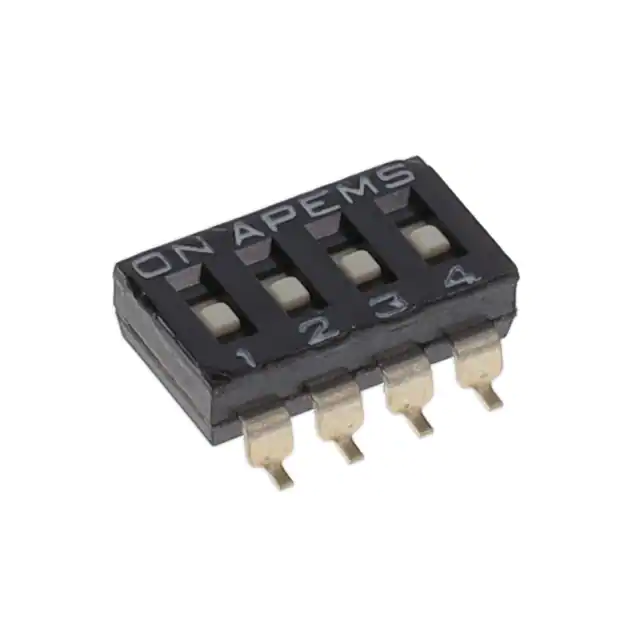

DMR04TSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
544 | 1.47 |
|
Datasheet |
DM | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

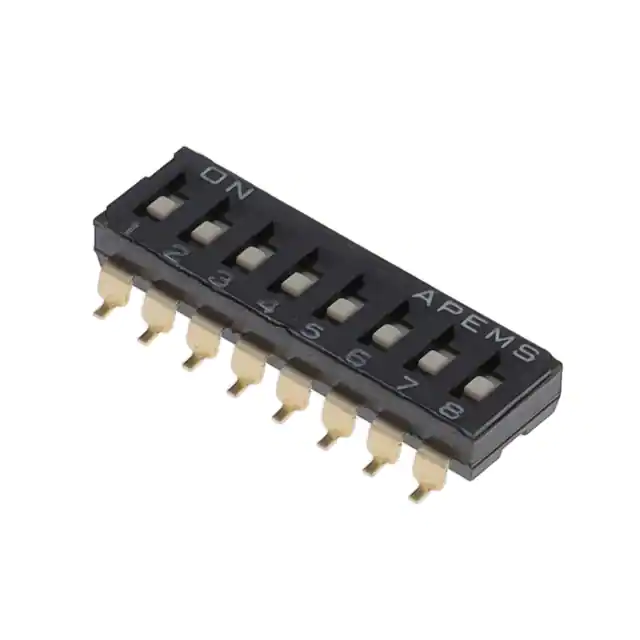

DMR08TTRSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
3,481 | 1.73 |
|
Datasheet |
DM | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
DM08SWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
3,080 | 1.71 |
|
Datasheet |
DM | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
DMR08TSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
932 | 1.73 |
|
Datasheet |
DM | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

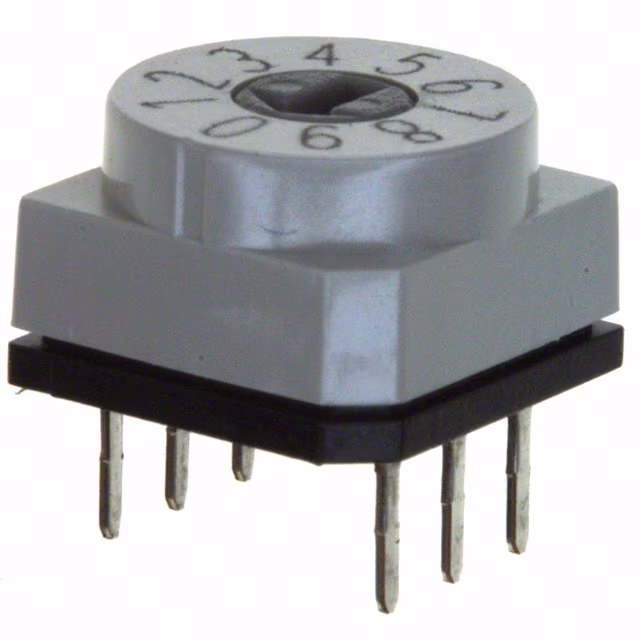

PT65102SW ROTARY DIP BCD COMP 0.15A 24V APEM Inc. |
6,876 | 6.85 |
|
Datasheet |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

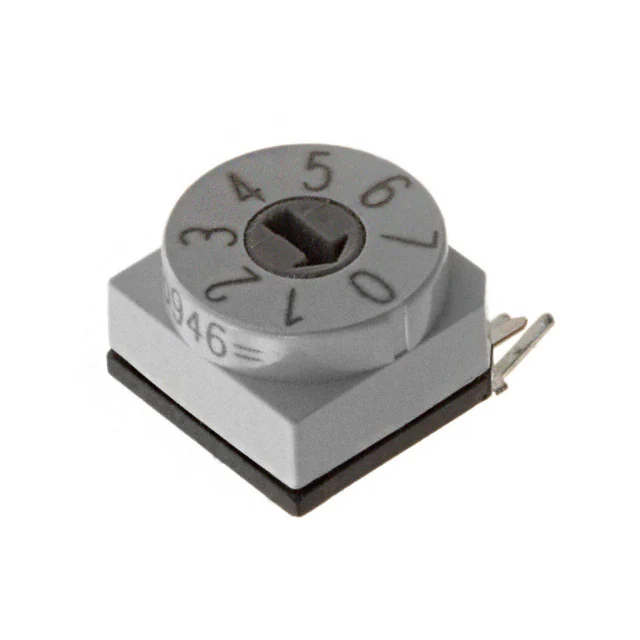

PT65126L508SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
1,986 | 9.22 |
|
Datasheet |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

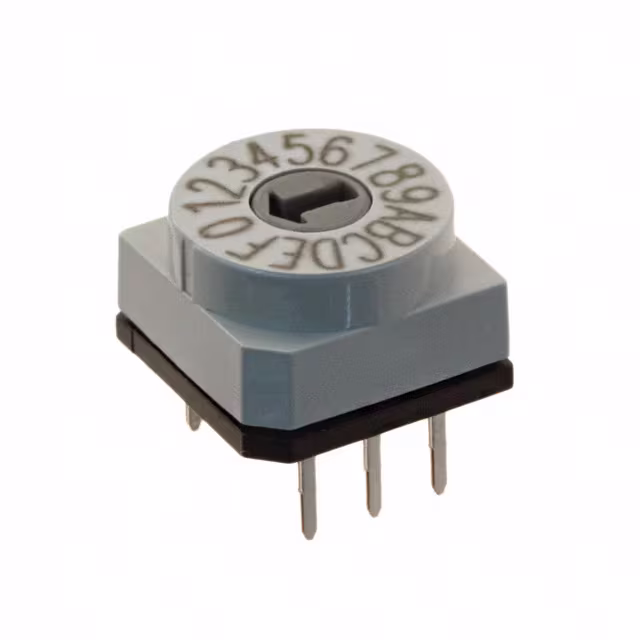

PT65106SW ROTARY DIP HEX COMP 0.15A 24V APEM Inc. |
2,861 | 7.39 |
|
Datasheet |
PT65 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

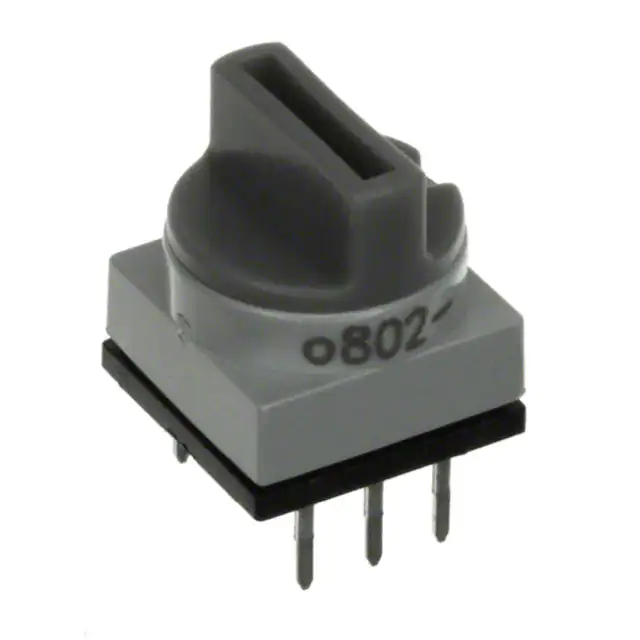

PT65521SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
818 | 9.90 |
|
Datasheet |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
