DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAS2102ETSWITCH SLIDE DIP SPST 0.025A 24V |
23,250 | 1.70 |
|
Datasheet |
KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
206-214SWITCH SLIDE DIP DPST 0.05A 24V |
848 | 1.35 |
|
Datasheet |
206 | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
.jpg)
|
219-10MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
3,605 | 0.85 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

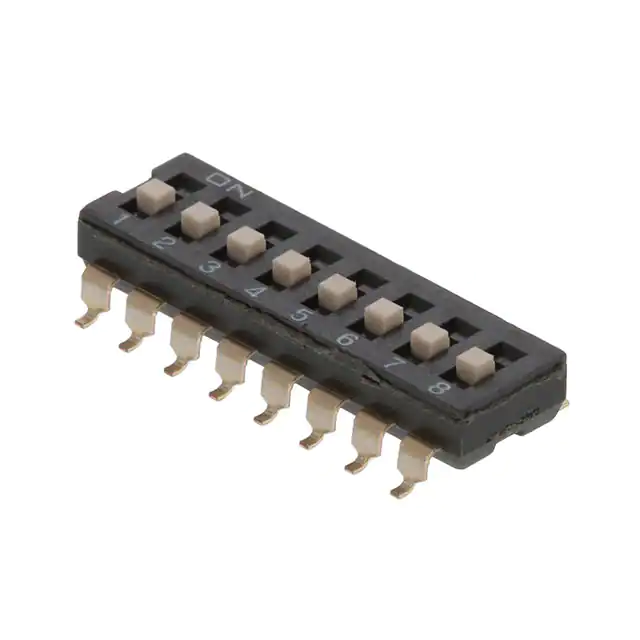

DS04-254-1-08BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
407 | 1.44 |
|
Datasheet |
DS04-254-SMT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418117270906SWITCH SLIDE DIP SPST 0.025A 24V |
468 | 1.81 |
|
Datasheet |
WS-DITV | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
4-1825059-1SWITCH SLIDE DIP SPST 0.025A 24V |
27,675 | 1.75 |
|
Datasheet |
ADF | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
A6T-1104SWITCH SLIDE DIP SPST 0.025A 24V |
5,042 | 1.41 |
|
Datasheet |
A6T | Tray | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

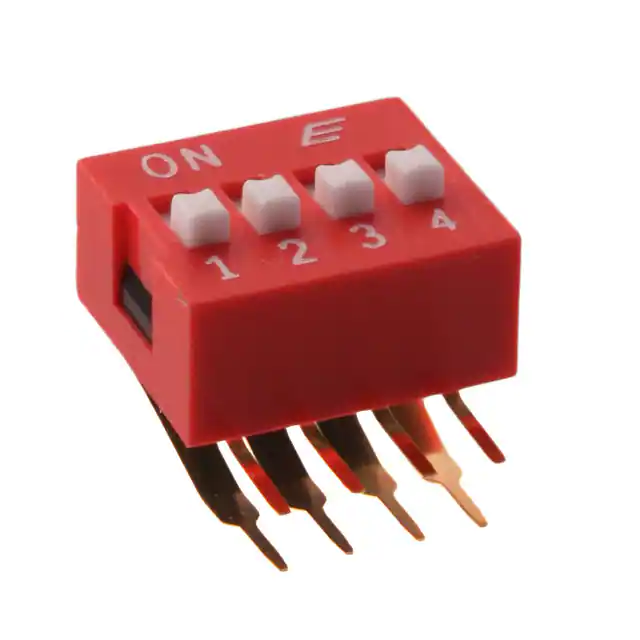

KAS2104ESWITCH SLIDE DIP SPST 0.025A 24V |
3,511 | 1.76 |
|
Datasheet |
KAS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

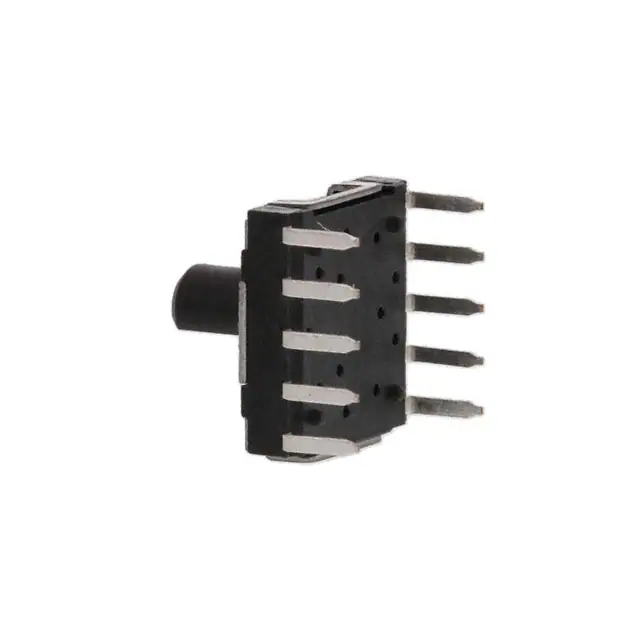

KC1901ASWITCH ROTARY DIP SP9T 0.1A 16V |
2,034 | 1.55 |
|
Datasheet |
KC1901 | Bulk | Active | SP9T | 9 | 100mA | 16VDC | Rotary with Shaft | Raised | Copper Alloy | Silver | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|

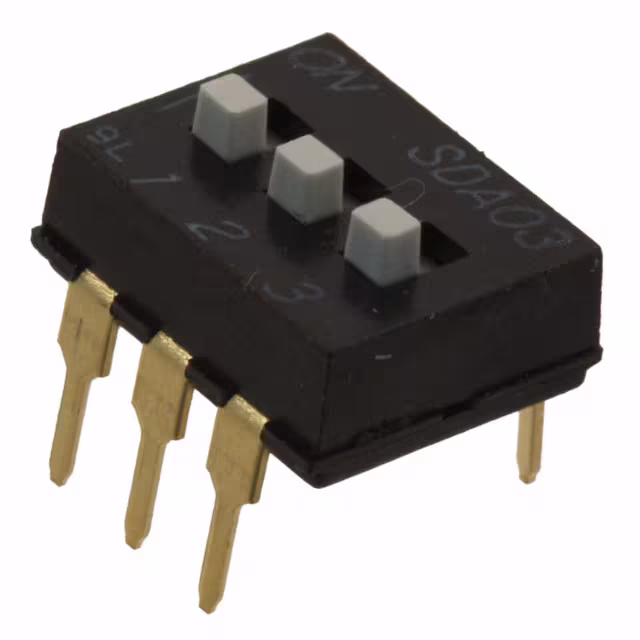

SDA03H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
1,716 | 1.55 |
|
Datasheet |
SDA | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
1-1825059-7SWITCH SLIDE DIP SPST 0.025A 24V |
13,840 | 1.33 |
|
Datasheet |
ADF | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

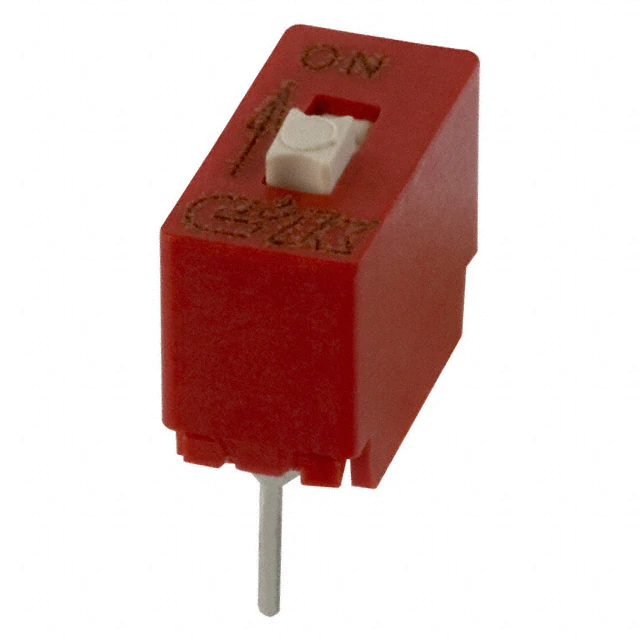

BD01SWITCH SLIDE DIP SPST 0.1A 5V |
944 | 1.38 |
|
Datasheet |
BD | Tube | Active | SPST | 1 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SDA01H0SBSWITCH SLIDE DIP SPST 0.025A 24V |
67,343 | 1.50 |
|
Datasheet |
SDA | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

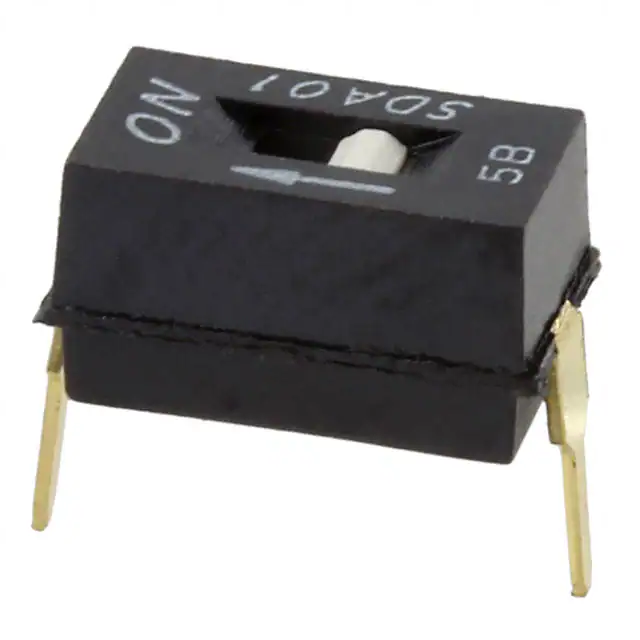

SDA01H0BDSWITCH SLIDE DIP SPST 0.025A 24V |
10,928 | 1.50 |
|
Datasheet |
SDA | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.183" (4.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

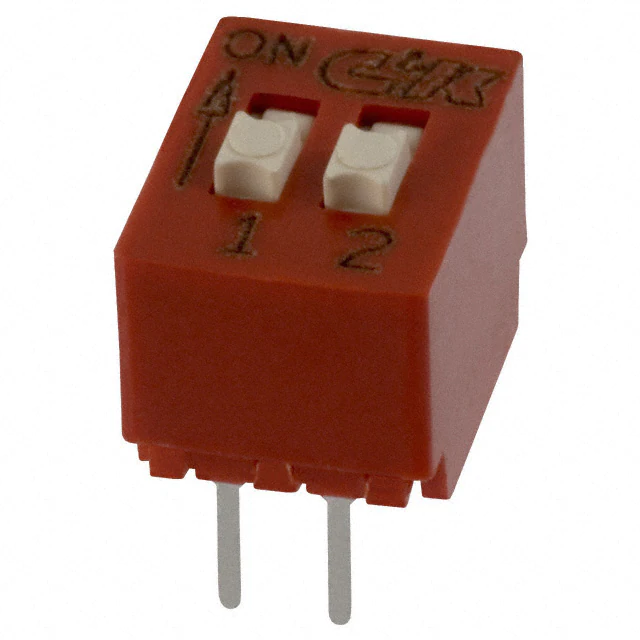

BD02SWITCH SLIDE DIP SPST 0.1A 5V |
3,303 | 1.56 |
|
Datasheet |
BD | Tube | Active | SPST | 2 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.297" (7.54mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DS03-254-08BESWITCH SLIDE DIP SPST 0.025A 24V |
178 | 1.53 |
|
Datasheet |
DS03-254 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
219-12MSTSWITCH SLIDE DIP SPST 0.1A 20V |
1,644 | 1.47 |
|
Datasheet |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
A6FR-6104SWITCH PIANO DIP SPST 0.025A 24V |
303 | 1.45 |
|
Datasheet |
A6FR | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
206-8RASTSWITCH SLIDE DIP SPST 0.05A 24V |
2,107 | 1.51 |
|
Datasheet |
206RA | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

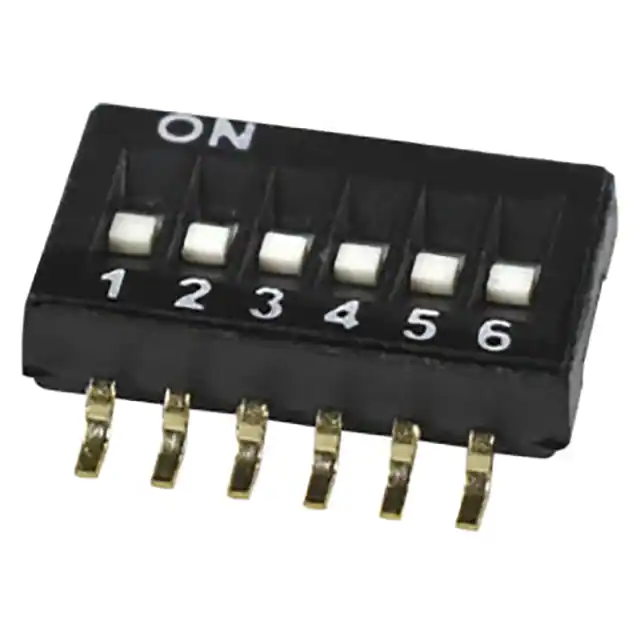

DS05-127-2-06BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
1,557 | 1.59 |
|
Datasheet |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
