DIP Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

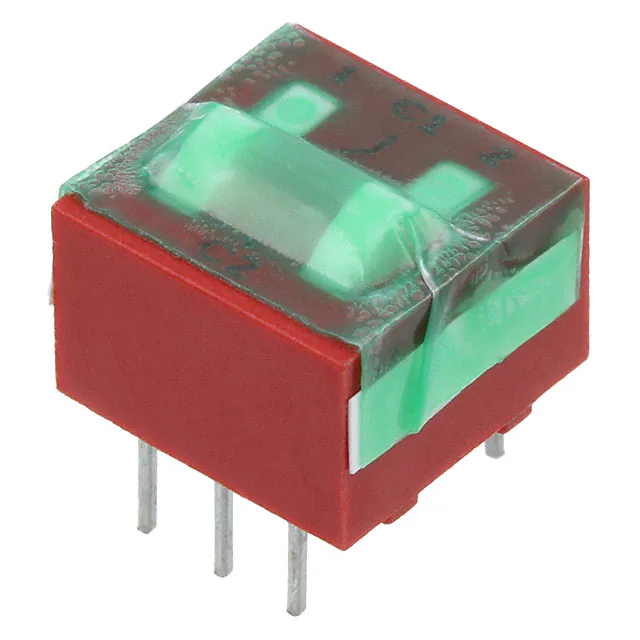

76SC02STSWITCH ROCKER DIP SPDT 0.15A 30V Grayhill Inc. |
4,790 | 6.78 |
|
Datasheet |
76 | Tube | Active | SPDT | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

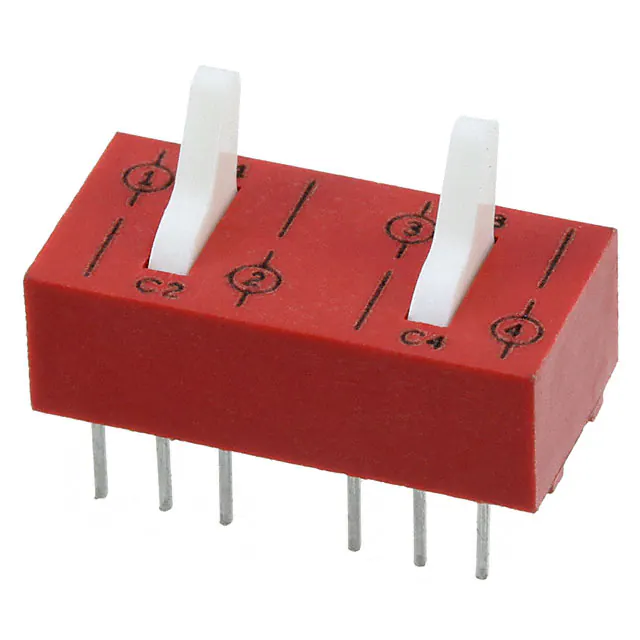

76STD02TSWITCH TOGGLE DIP DPDT 0.15A 30V Grayhill Inc. |
4,943 | 8.04 |
|
Datasheet |
76 | Bulk | Active | DPDT | 2 | 150mA | 30VDC | Toggle | Raised | Copper Alloy | Gold | 0.467" (11.86mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76RSB12STSWITCH ROCKER DIP SPST 0.15A 30V Grayhill Inc. |
4,999 | 2.75 |
|
Datasheet |
76 | Tube | Active | SPST | 12 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

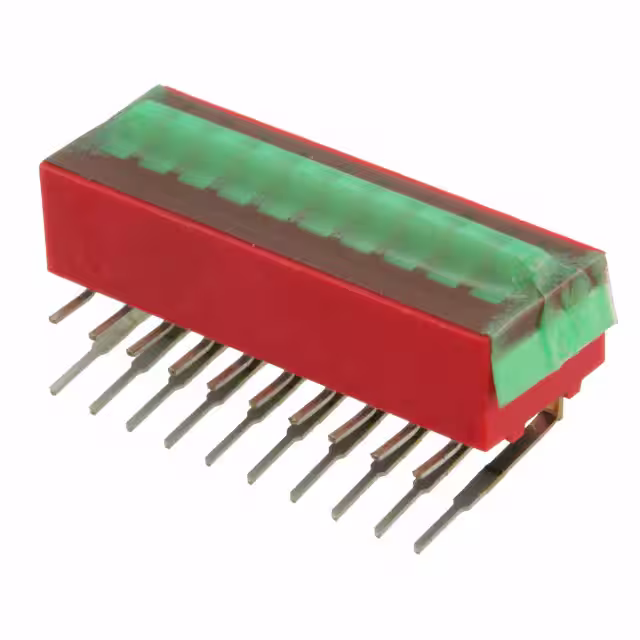

78B10SRATSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
2,841 | 6.89 |
|
Datasheet |
78 | Bulk | Active | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

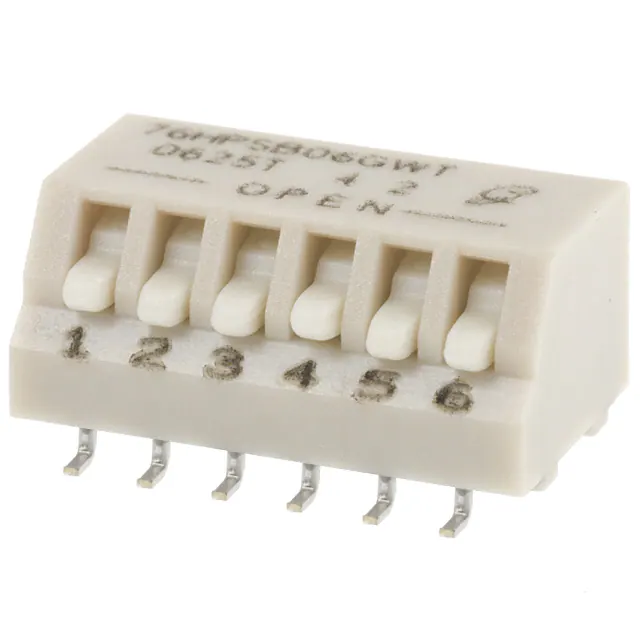

76HPSB06GWRTSWITCH PIANO DIP SPST 0.15A 30V Grayhill Inc. |
238 | 5.16 |
|
Datasheet |
76HP | Tape & Reel (TR) | Active | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

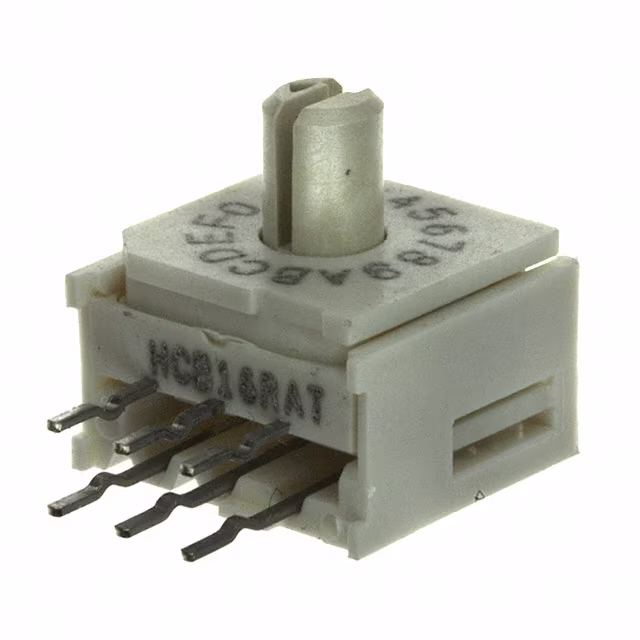

94HCB16RATSWITCH ROTARY DIP HEX 0.1A 50V Grayhill Inc. |
276 | 3.66 |
|
Datasheet |
94H | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
78B02SRATSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
4,225 | 4.35 |
|
Datasheet |
78 | Bulk | Active | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78C04SRATSWITCH SLIDE DIP SPST 0.025A 24V Grayhill Inc. |
3,919 | 1.78 |
|
Datasheet |
78C | Bulk | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
76GB04STSWITCH ROCKER DIP SPST 0.15A 30V Grayhill Inc. |
4,440 | 2.00 |
|
Datasheet |
76 | Bulk | Obsolete | SPST | 4 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

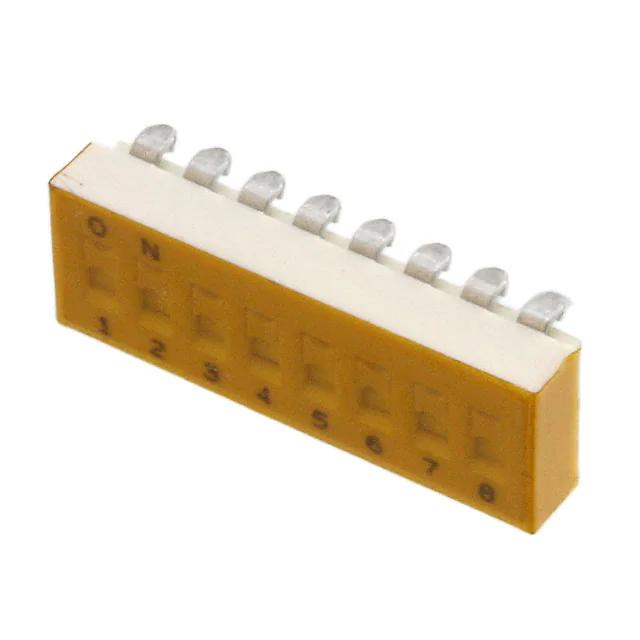

90HBJ08PRTSWITCH SLIDE DIP SPST 0.025A 24V Grayhill Inc. |
3,751 | 3.19 |
|
Datasheet |
90HB | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
