Digital Isolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Type | Isolated Power | Number of Channels | Inputs - Side 1/Side 2 | Channel Type | Voltage - Isolation | Common Mode Transient Immunity (Min) | Data Rate | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

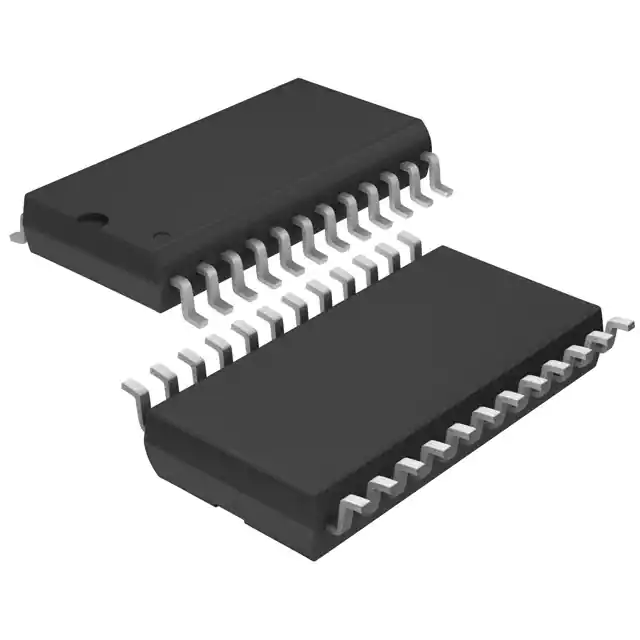

SI88340EC-ASLINEAR IC |
4,751 | 0.00 |
|
Datasheet |
Si88x4x | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 3750Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC |
|
|
SI88644ED-ASLINEAR IC |
4,947 | 0.00 |
|
Datasheet |
Si88x4x | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC |
|
|

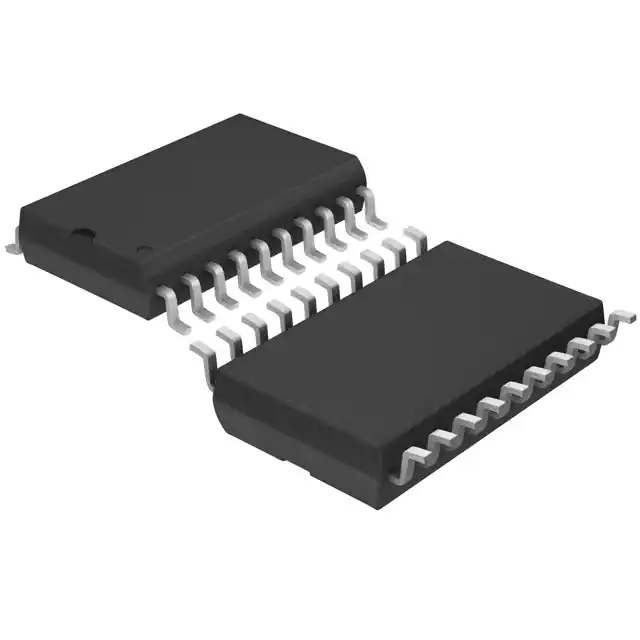

SI88243ED-ASLINEAR IC |
1,480 | 0.00 |
|
Datasheet |
Si88x4x | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 1/3 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88244BC-ASLINEAR IC |
3,562 | 0.00 |
|
Datasheet |
Si88x4x | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 3750Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88240ED-ASLINEAR IC |
4,371 | 0.00 |
|
Datasheet |
Si88x4x | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 4/0 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88244ED-ASLINEAR IC |
2,170 | 0.00 |
|
Datasheet |
Si88x4x | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 0/4 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88242ED-ASLINEAR IC |
4,738 | 0.00 |
|
Datasheet |
Si88x4x | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 4 | 2/2 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 18ns, 23ns | 7ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
SI88240ED-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
4,177 | 5.63 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
.jpg)
|
SI88241ED-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
1,675 | 5.63 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88242ED-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
2,843 | 0.00 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88243ED-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
4,193 | 5.63 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 1/3 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88244ED-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
3,433 | 5.63 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 0/4 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88240BD-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
3,588 | 5.63 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88241BD-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
2,643 | 5.63 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88242BD-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
1,451 | 0.00 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
|
SI88243BD-ISRDGTL ISO 5KV 4CH GEN PURP 20SOIC |
2,324 | 5.63 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 1/3 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 20-SOIC |
|
SI88640ED-ISRDGTL ISO 5KV 4CH GEN PURP 24SOIC |
2,271 | 5.63 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 24-SOIC |
|
|
SI88641ED-ISRDGTL ISO 5KV 4CH GEN PURP 24SOIC |
3,380 | 5.63 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 24-SOIC |
|
|
SI88642ED-ISRDGTL ISO 5KV 4CH GEN PURP 24SOIC |
1,089 | 5.63 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 24-SOIC |
|
|
SI88643ED-ISRDGTL ISO 5KV 4CH GEN PURP 24SOIC |
2,304 | 5.63 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 4 | 1/3 | Unidirectional | 5000Vrms | 40kV/µs | 100Mbps | 12.6ns, 17.5ns (Typ) | 4.8ns (Typ) | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 24-SOIC |
