Bipolar Transistor Arrays, Pre-Biased
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Resistor - Base (R1) | Resistor - Emitter Base (R2) | DC Current Gain (hFE) (Min) @ Ic, Vce | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | Frequency - Transition | Power - Max | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSBA123JDXV6T5TRANS BRT PNP DUAL 50V SOT563 onsemi |
943,798 | 0.00 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EMG2DXV5T1TRANS 2NPN PREBIAS 0.23W SOT553 onsemi |
9,250 | 0.04 |
|
Datasheet |
- | SOT-553 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 230mW | - | - | Surface Mount | SOT-553 |
|

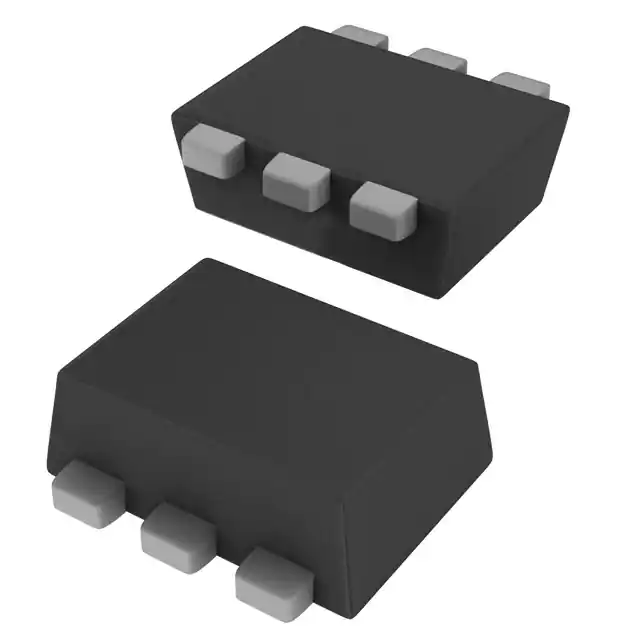

NSBA114YDP6T5GTRANS PREBIAS 2PNP 50V SOT963 onsemi |
3,747 | 0.05 |
|
Datasheet |
- | SOT-963 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 408mW | - | - | Surface Mount | SOT-963 |
|
EMD4DXV6T5SMALL SIGNAL BIPOLAR TRANSISTOR onsemi |
416,000 | 0.04 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 1 NPN, 1 PNP - Pre-Biased | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 357mW | - | - | Surface Mount | SOT-563 |
|
|
NSBC143TDXV6T5SMALL SIGNAL BIPOLAR TRANSISTOR onsemi |
400,000 | 0.04 |
|
Datasheet |
- | SOT-563, SOT-666 | Bulk | Active | 2 NPN - Pre-Biased | 100mA | 50V | 4.7kOhms | - | 160 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 500mW | - | - | Surface Mount | SOT-563 |
|
|
NSBA143ZDP6T5GTRANS PREBIAS 2PNP 50V SOT963 onsemi |
4,986 | 0.05 |
|
Datasheet |
- | SOT-963 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 1mA, 10mA | 500nA | - | 408mW | - | - | Surface Mount | SOT-963 |
|
|
NSTB1004DXV5T1TRANS NPN/PNP PREBIAS SOT553 onsemi |
300,000 | 0.04 |
|
- |
- | SOT-553 | Bulk | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-553 |
|
|
NSBA123JDP6T5GTRANS PREBIAS 2PNP 50V SOT963 onsemi |
3,689 | 0.05 |
|
Datasheet |
- | SOT-963 | Tape & Reel (TR) | Obsolete | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 2.2kOhms | 47kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 408mW | - | - | Surface Mount | SOT-963 |
|
|
NSBC124EDP6T5GTRANS PREBIAS 2NPN 50V SOT963 onsemi |
9,487 | 0.05 |
|
Datasheet |
- | SOT-963 | Tape & Reel (TR) | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 60 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 339mW | - | - | Surface Mount | SOT-963 |
|
NSBC144WPDP6T5GTRANS PREBIAS NPN/PNP 50V SOT963 onsemi |
2,371 | 0.05 |
|
Datasheet |
- | SOT-963 | Tape & Reel (TR) | Obsolete | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 80 @ 5mA, 10V | 250mV @ 300µA, 10mA | 500nA | - | 339mW | - | - | Surface Mount | SOT-963 |
