Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ9801-1A-12DRRELAY AUTOMOTIVE SPST 70A 12V |
1,939 | 0.00 |
|
Datasheet |
AZ9801 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 7 ms | Resistor, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ987-2C-24DETRELAY AUTOMOTIVE DPDT 30A 24V |
3,501 | 0.00 |
|
Datasheet |
AZ987 | Box | Active | Non Latching | - | 24VDC | DPDT (2 Form C) | 30 A | 16VDC - Max | 13.8 VDC | 3 VDC | 4 ms | 2 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ9831-1A-24DRELAY AUTOMOTIVE SPST 70A 24V |
2,687 | 0.00 |
|
Datasheet |
AZ9831 | Box | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 75VDC - Max | 15.6 VDC | 3.6 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ9801-1A-24DERELAY AUTOMOTIVE SPST 70A 24V |
1,932 | 0.00 |
|
Datasheet |
AZ9801 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9801-1A-24DHERELAY AUTOMOTIVE SPST 70A 24V |
4,600 | 0.00 |
|
Datasheet |
AZ9801 | Box | Active | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ9801-1A-12DHERELAY AUTOMOTIVE SPST 70A 12V |
4,204 | 0.00 |
|
Datasheet |
AZ9801 | Box | Active | Non Latching | 166.7 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Epoxy, SUPER-ISO | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ983-1C-24DRELAY AUTOMOTIVE SPDT 60A 24V |
2,221 | 0.00 |
|
Datasheet |
AZ983 | Box | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ979-1C-24DRELAY AUTOMOTIVE SPDT 60A 24V |
1,494 | 0.00 |
|
Datasheet |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
VKP-35F42RELAY AUTOMOTIVE SPDT 40A 12V |
3,806 | 0.00 |
|
Datasheet |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ9801-1A-24DHERRELAY AUTOMOTIVE SPST 70A 24V |
1,548 | 0.00 |
|
Datasheet |
AZ9801 | Box | Active | Non Latching | 83.3 mA | 24VDC | SPST-NO (1 Form A) | 70 A | 50VDC - Max | 14.4 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, SUPER-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
G8K-27UR DC12MINIATURE POWER PCB RELAY FOR DC |
3,322 | 3.80 |
|
Datasheet |
G8K | Tube | Active | Non Latching | 120 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 5.6 VDC | 0.7 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8K-27SR DC12MINIATURE POWER PCB RELAY FOR DC |
2,967 | 3.80 |
|
Datasheet |
G8K | Tube | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|

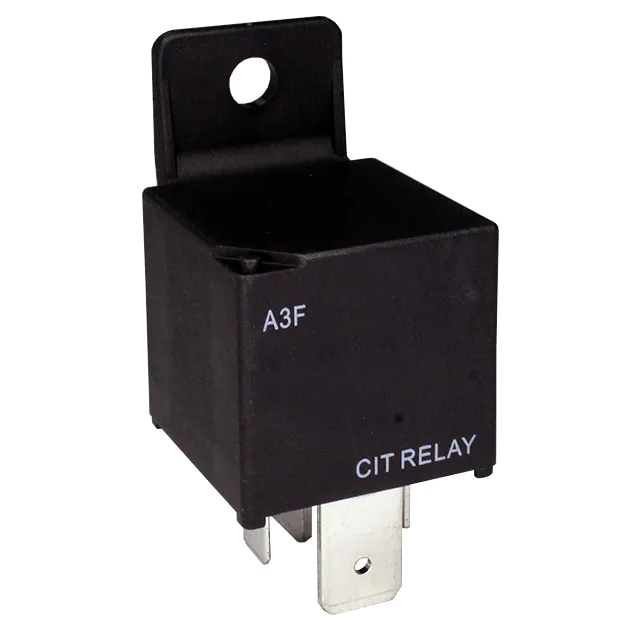

A3F1CCQ24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
3,870 | 2.83 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
AZ983-1C-12DERRELAY AUTOMOTIVE SPDT 60A 12V |
1,451 | 0.00 |
|
Datasheet |
AZ983 | Box | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
02040707ZRELAY AUTOMOTIVE SPDT 30A 12V |
2,646 | 0.00 |
|
Datasheet |
ISO MINI® | Bulk | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | - | - | - | - | Resistor | Socketable | Plug In | - |
|
PC795-1A-C2-12C-RN-XRELAY AUTOMOTIVE SPST 80A 12V |
3,875 | 3.13 |
|
Datasheet |
- | Box | Active | Non Latching | 168 mA | 12VDC | SPST-NO (1 Form A) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

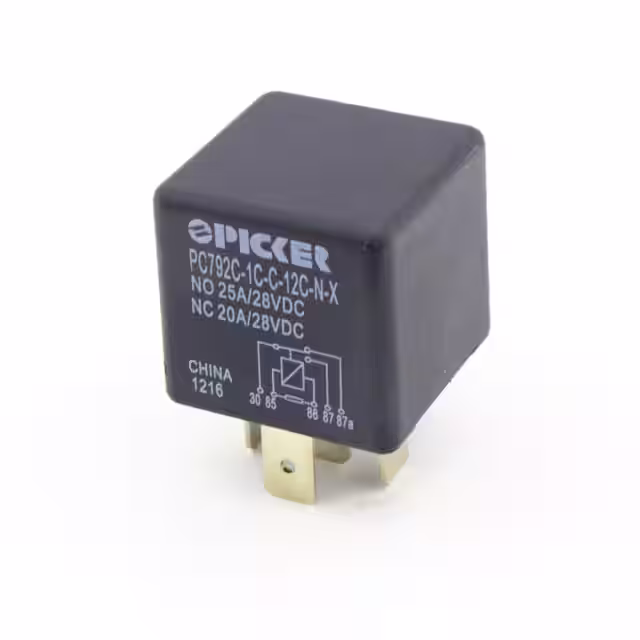

PC793-1A-P-12S-XRELAY AUTOMOTIVE SPST 70A 12V |
2,441 | 3.15 |
|
Datasheet |
- | Tray | Active | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
VKP-35F52RELAY AUTOMOTIVE SPDT 40A 12V |
3,577 | 0.00 |
|
Datasheet |
VKP | Bulk | Obsolete | Non Latching | 133 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Max | 6.8 VDC | 1.2 VDC | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
PC793-1A-C1-12S-N-XRELAY AUTOMOTIVE SPST 70A 12V |
1,562 | 3.18 |
|
Datasheet |
- | Tray | Active | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | - | 120VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
1-1414530-0V23076A3001C132TRW |
4,082 | 3.36 |
|
- |
V23076 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 45 A | - | - | - | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
