Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A51AE24VDC1.6URELAY AUTOMOTIVE SPST 40A 24V |
1,431 | 1.24 |
|
Datasheet |
A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2M1ACQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
1,644 | 1.49 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

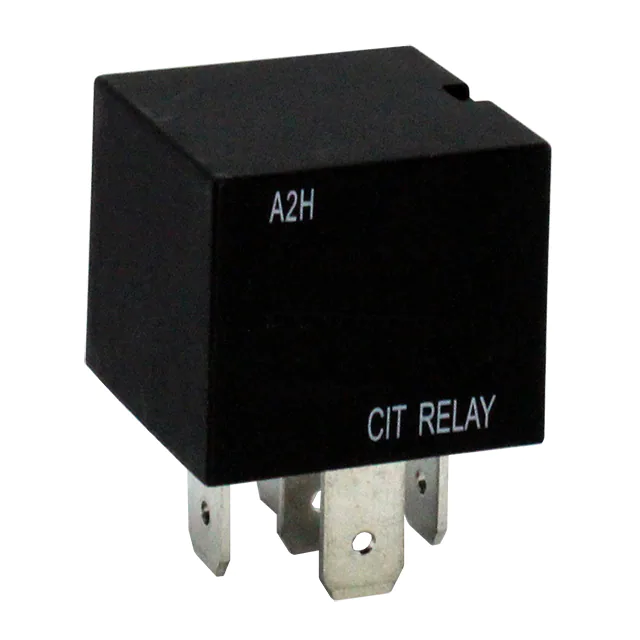

A2HF1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V |
2,929 | 1.49 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ASQ12VDC1.9RRELAY AUTOMOTIVE SPST 40A 12V |
4,711 | 1.49 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ACQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V |
1,769 | 1.49 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V |
1,713 | 1.49 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9741-1A-24DERELAY AUTOMOTIVE SPST 40A 24V |
2,259 | 0.00 |
|
Datasheet |
AZ9741 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -55°C ~ 125°C |
|
|
AZ9741-1C-12DRELAY AUTOMOTIVE SPDT 40A 12V |
1,157 | 0.00 |
|
Datasheet |
AZ9741 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | - | Through Hole | PC Pin | -55°C ~ 125°C |
|
PC782-1C-12S-XRELAY AUTOMOTIVE SPDT 30A 12V |
2,006 | 1.50 |
|
Datasheet |
- | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2HM1ACQ12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V |
1,561 | 1.50 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ASQ12VDC1.9DRELAY AUTOMOTIVE SPST 40A 12V |
4,786 | 1.50 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 158.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASQ24VDC1.9RRELAY AUTOMOTIVE SPST 40A 24V |
2,249 | 1.50 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2M1ACQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V |
3,889 | 1.50 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
G8K-17UR DC12MINIATURE POWER PCB RELAY FOR DC |
3,698 | 1.91 |
|
Datasheet |
G8K | Tube | Active | Non Latching | 120 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 5.6 VDC | 0.7 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|

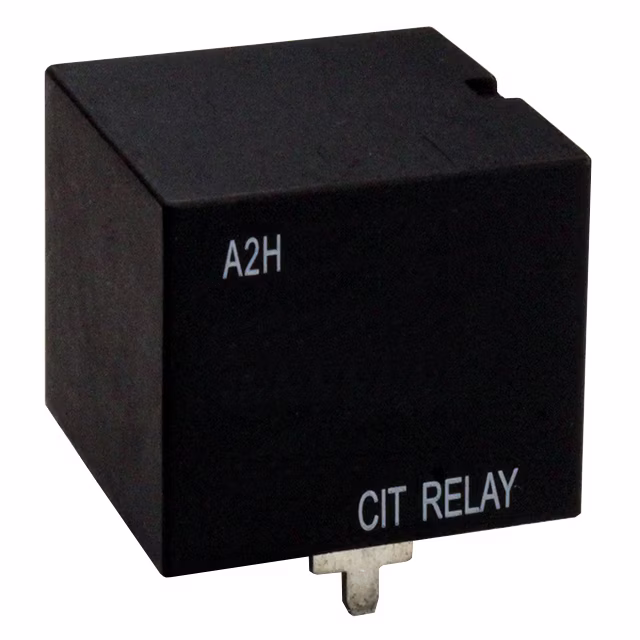

A2H1ASP12VDC1.6DRELAY AUTOMOTIVE SPST 50A 12V |
1,824 | 1.52 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2H1ASP12VDC1.6RRELAY AUTOMOTIVE SPST 50A 12V |
1,027 | 1.52 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
A2M1ASQ24VDC1.9RELAY AUTOMOTIVE SPST 40A 24V |
2,662 | 1.52 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A21ASQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V |
1,231 | 1.52 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2F1ASQ24VDC1.9DRELAY AUTOMOTIVE SPST 40A 24V |
1,168 | 1.52 |
|
Datasheet |
A2 | Tray | Active | Non Latching | 79.2 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2HM1ACQ24VDC1.6RELAY AUTOMOTIVE SPST 50A 24V |
1,148 | 1.54 |
|
Datasheet |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
