Automotive Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

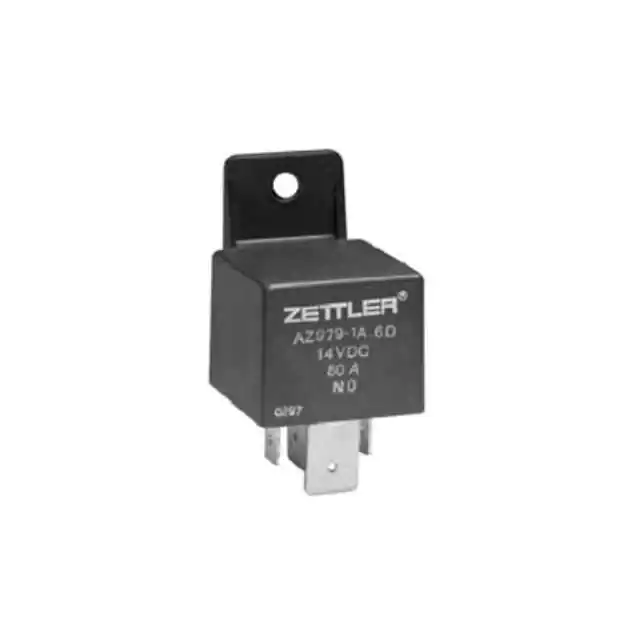

AZ979-1A-24DERELAY AUTOMOTIVE SPST 80A 24V |
518 | 0.00 |
|
Datasheet |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
CB1F-12VRELAY AUTOMOTIVE SPDT 40A 12V |
2,152 | 5.05 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
AZ983-1A-24DERELAY AUTOMOTIVE SPST 80A 24V |
930 | 0.00 |
|
Datasheet |
AZ983 | Box | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1A-P-24VRELAY AUTOMOTIVE SPST 20A 24V |
2,034 | 5.11 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
ET2-B3M1SAUTOMOTIVE RELAYS 1 FORM C X2 SE |
858 | 0.00 |
|
Datasheet |
ET2 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 2.5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
EP2F-B3N1STAUTOMOTIVE RELAYS HIGH TEMP/HIGH |
234 | 0.00 |
|
Datasheet |
EP2F | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
PC795-1C-P-12S-XRLEAY AUTOMOTIVE SPDT 80A 12V |
118 | 4.89 |
|
Datasheet |
- | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

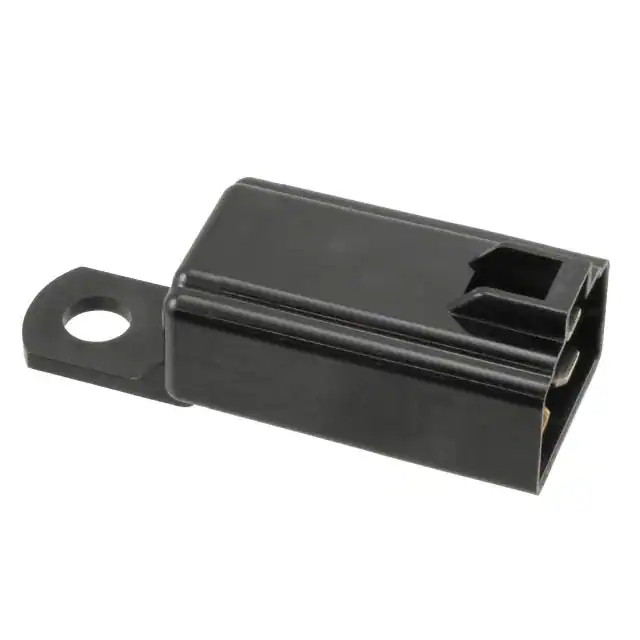

CA1A-DC12V-NRELAY AUTOMOTIVE SPST 30A 12V |
523 | 5.46 |
|
Datasheet |
CA | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
1-1393277-4RELAY AUTOMOTIVE SPST 45A 12V |
4,726 | 5.33 |
|
Datasheet |
V23076 | Bulk | Active | Non Latching | 133 mA | 12VDC | SPST-NO (1 Form A) | 45 A | 12VDC - Nom | 6.9 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
CB1-R-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
699 | 5.35 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
G8PM-1AW7R DC12AUTOMOTIVE PCB RELAY, DC 12V |
1,579 | 0.00 |
|
Datasheet |
G8PM | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | - | 7.2 VDC | 0.8 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
CM1-R-12VRELAY AUTOMOTIVE SPDT 35A 12V |
451 | 4.49 |
|
Datasheet |
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|
|
CB1F-R-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
366 | 6.34 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
5-1393292-8RELAY GEN PURPOSE SPST 25A 12V |
598 | 3.04 |
|
Datasheet |
VFMA | Bulk | Active | Non Latching | 100.8 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 6 ms | 3 ms | Diode | Socketable | Plug In | -40°C ~ 125°C |
|
AZ979-1C-12DERELAY AUTOMOTIVE SPDT 60A 12V |
681 | 3.88 |
|
Datasheet |
AZ979 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|

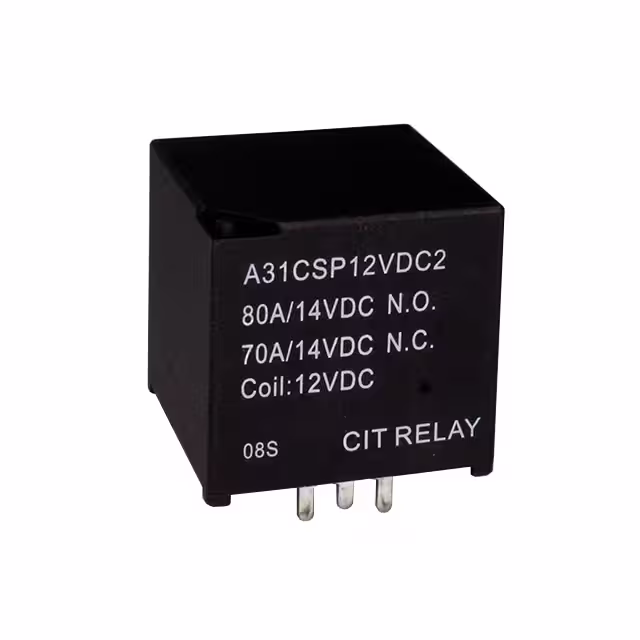

A31CSP12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
1,501 | 5.42 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
CB1F-M-12VRELAY AUTOMOTIVE SPDT 40A 12V |
1,240 | 5.81 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|

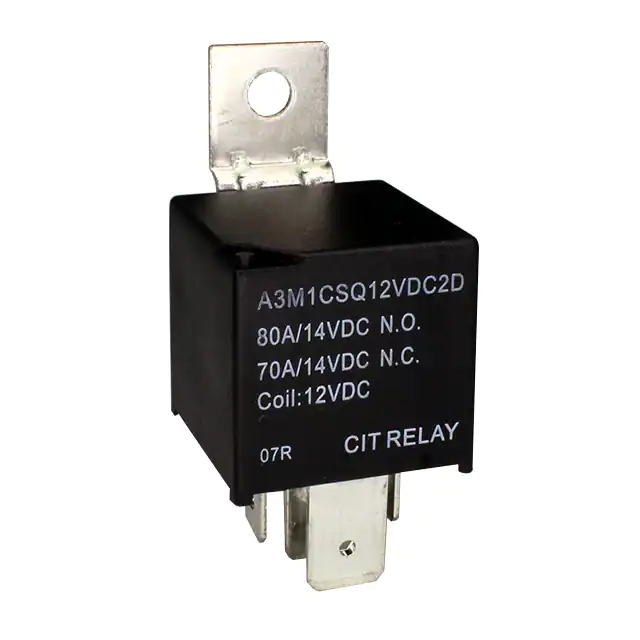

A3M1CSQ12VDC2DRELAY AUTOMOTIVE SPDT 80A 12V |
140 | 5.52 |
|
Datasheet |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1F-R-24VRELAY AUTOMOTIVE SPDT 20A 24V |
366 | 6.02 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
|
CB1F-M-24VRELAY AUTOMOTIVE SPDT 20A 24V |
574 | 6.73 |
|
Datasheet |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
