Aluminum - Polymer Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Ratings | Applications | Features | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

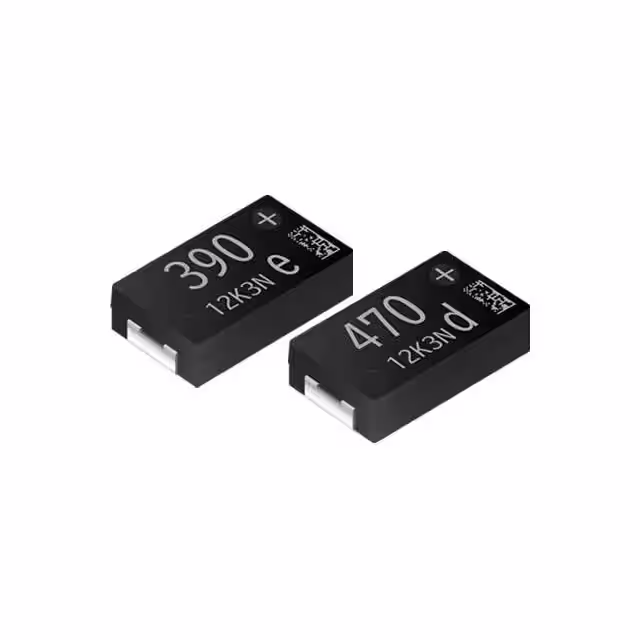

EEF-JX0D471RCCAP ALUM POLY 470UF 20% 2V SMD |
6,298 | 0.00 |
|
Datasheet |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
HHSC350ELL271MJC5SCAP ALUM HYBRID 270UF 20% 35V TH |
2,000 | 2.59 |
|
Datasheet |
HSC | Bulk | Active | Hybrid | 270 µF | ±20% | 35 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 286 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
EEH-ZF1H560VCAP ALUM HYBRID 56UF 20% 50V SMD |
895 | 0.00 |
|
Datasheet |
ZF, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 50 V | 35mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 105 mA @ 100 Hz | 700 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZF1J330VCAP ALUM HYBRID 33UF 20% 63V SMD |
728 | 0.00 |
|
Datasheet |
ZF, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 65 mA @ 100 Hz | 650 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLV1C221MCL1CAP ALUM POLY 220UF 20% 16V TH |
194 | 2.61 |
|
Datasheet |
PLV | Bulk | Not For New Designs | Polymer | 220 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
A780MS566M1JLAV030CAP ALUM HYBRID 56UF 20% 63V SMD |
2,794 | 2.63 |
|
Datasheet |
A780, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 396 mA @ 100 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
PCV1D151MCL1GSCAP ALUM POLY 150UF 20% 20V SMD |
1,475 | 3.06 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 20 V | 33mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-JX0E391RECAP ALUM POLY 390UF 20% 2.5V SMD |
6,685 | 3.44 |
|
Datasheet |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 9mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-SX0D391E4CAP ALUM POLY 390UF 20% 2V SMD |
6,181 | 2.92 |
|
Datasheet |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCV1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD |
180 | 3.29 |
|
Datasheet |
PCV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 31mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEF-JX0E391RCCAP ALUM POLY 390UF 20% 2.5V SMD |
7,000 | 0.00 |
|
Datasheet |
SP-Cap JX | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 4.5mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEH-ZF1J560VCAP ALUM HYBRID 56UF 20% 63V SMD |
485 | 0.00 |
|
Datasheet |
ZF, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 126 mA @ 100 Hz | 840 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
B40921A7397M000CAP ALUMHYB 390UF 20% 35V SMD |
2,113 | 2.93 |
|
Datasheet |
B40921 | Tape & Reel (TR) | Active | Hybrid | 390 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZT1J820VCAP ALUM HYBRID 82UF 20% 63V SMD |
994 | 0.00 |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-ZT1J560VCAP ALUM HYBRID 56UF 20% 63V SMD |
554 | 3.03 |
|
Datasheet |
ZT | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
80SXE27MXCAP ALUM POLY 27UF 20% 80V TH |
359 | 3.18 |
|
Datasheet |
OS-CON™, SXE | Bulk | Active | Polymer | 27 µF | ±20% | 80 V | 55mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 33 mA @ 120 Hz | 660 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
4SVPT1500MCAP ALUM POLY 1500UF 20% 4V SMD |
396 | 3.57 |
|
Datasheet |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 4 V | 12mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNS1E101MDN1CAP ALUM POLY 100UF 20% 25V TH |
145 | 2.77 |
|
Datasheet |
FPCAP, RNS | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXJ2R5ARA122MH70GCAP ALUM POLY 1200UF 20% 2.5V |
500 | 4.28 |
|
Datasheet |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
2R5SVPT1500MCAP ALUM POLY 1500UF 20% 2.5V |
374 | 3.95 |
|
Datasheet |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 10mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 257.5 mA @ 120 Hz | 5.15 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
