Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

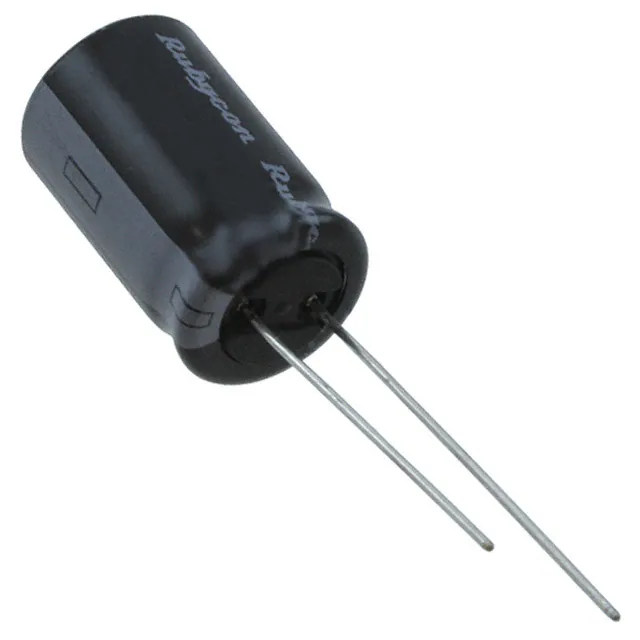

63YXG270MEFC12.5X20CAP ALUM 270UF 20% 63V RADIAL TH Rubycon |
1,387 | 0.43 |
|
![]() Datasheet |
YXG | Bulk | Not For New Designs | 270 µF | ±20% | 63 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 345 mA @ 120 Hz | 690 mA @ 100 kHz | 160 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
6.3YXJ6800MG412.5X25CAP ALUM 6800UF 20% 6.3V RADIAL Rubycon |
2,698 | 0.43 |
|
![]() Datasheet |
YXJ | Tape & Box (TB) | Active | 6800 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.784 A @ 120 Hz | 2.23 A @ 100 kHz | 32 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
10ZT1000M10X20CAP ALUM 1000UF 20% 10V RADIAL Rubycon |
1,627 | 0.46 |
|
![]() Datasheet |
ZT | Bulk | Obsolete | 1000 µF | ±20% | 10 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |
10ZT1000MT810X20CAP ALUM 1000UF 20% 10V RADIAL Rubycon |
1,075 | 0.46 |
|
![]() Datasheet |
ZT | Tape & Box (TB) | Obsolete | 1000 µF | ±20% | 10 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.5 A @ 100 kHz | 30 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |
160BXA100M12.5X25CAP ALUM 100UF 20% 160V RADIAL Rubycon |
3,346 | 0.43 |
|
![]() Datasheet |
BXA | Bulk | Not For New Designs | 100 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
200BXC68MEFC12.5X20CAP ALUM 68UF 20% 200V RADIAL TH Rubycon |
1,018 | 0.43 |
|
![]() Datasheet |
BXC | Bulk | Active | 68 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 1.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |
250CFX47M12.5X20CAP ALUM 47UF 20% 250V RADIAL TH Rubycon |
2,054 | 0.43 |
|
![]() Datasheet |
CFX | Bulk | Active | 47 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
315BXC22M12.5X16CAP ALUM 22UF 20% 315V RADIAL TH Rubycon |
2,215 | 0.43 |
|
![]() Datasheet |
BXC | Bulk | Active | 22 µF | ±20% | 315 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.709" (18.00mm) | - | Through Hole | |
![]() |
250BXC33MEFC12.5X20CAP ALUM 33UF 20% 250V RADIAL TH Rubycon |
4,324 | 0.43 |
|
![]() Datasheet |
BXC | Bulk | Active | 33 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 800 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |
250BXC33MEFCG412.5X20CAP ALUM 33UF 20% 250V RADIAL TH Rubycon |
3,931 | 0.43 |
|
![]() Datasheet |
BXC | Tape & Box (TB) | Active | 33 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 800 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole |
