Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

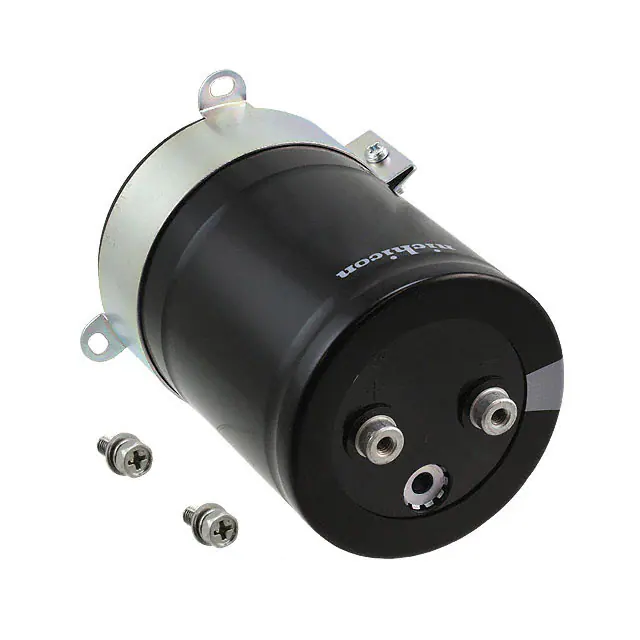

LNT1H334MSECAP ALUM 330000UF 20% 50V SCREW Nichicon |
2,366 | 114.69 |
|
![]() Datasheet |
LNT | Bulk | Active | 330000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24.3 A @ 120 Hz | 27.945 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
|

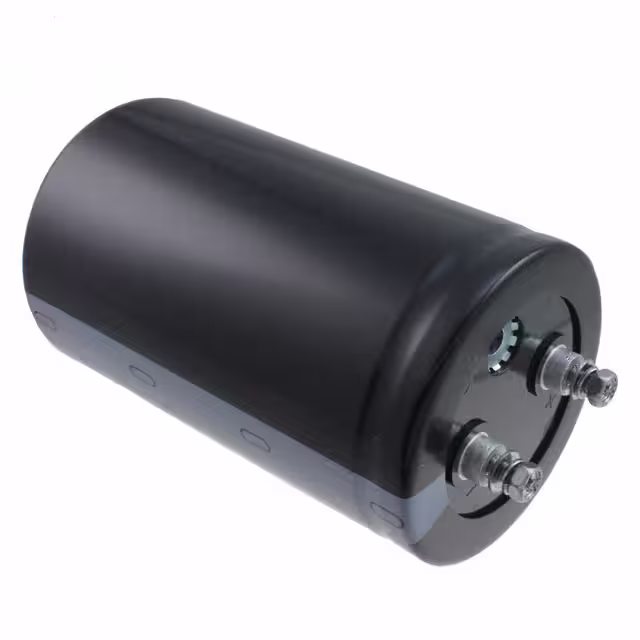

LNU2G682MSEHCAP ALUM 6800UF 20% 400V SCREW Nichicon |
3,840 | 107.76 |
|
![]() Datasheet |
LNU | Bulk | Active | 6800 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 19.5 A @ 120 Hz | 27.3 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 5.039" (128.00mm) | - | Chassis Mount | |
|

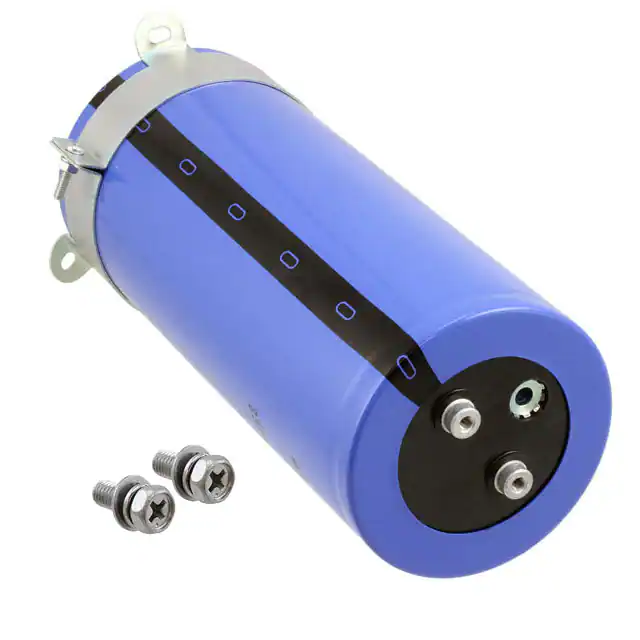

LNR1E684MSECAP ALUM 680000UF 20% 25V SCREW Nichicon |
4,664 | 162.62 |
|
![]() Datasheet |
LNR | Bulk | Active | 680000 µF | ±20% | 25 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 33.3 A @ 120 Hz | - | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
![]() |
LNK2W682MSEJCAP ALUM 6800UF 20% 450V SCREW Nichicon |
1,474 | 103.24 |
|
![]() Datasheet |
LNK | Bulk | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20 A @ 120 Hz | 28 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 4.921" (125.00mm) | - | Chassis Mount | |
![]() |

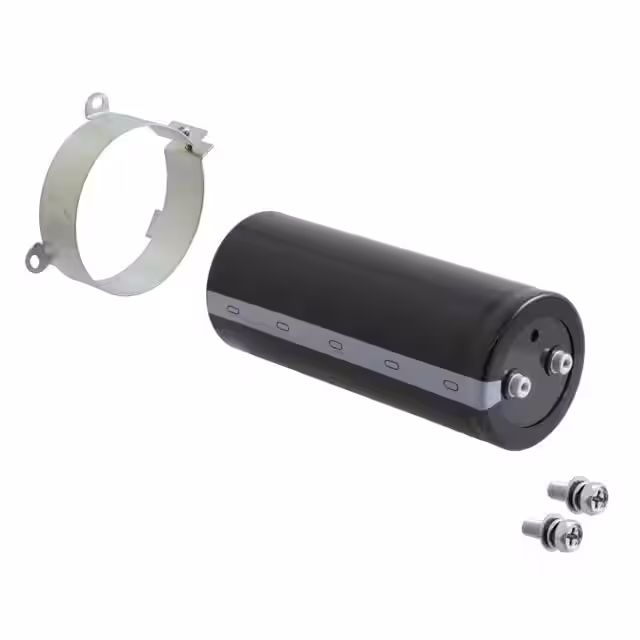

LNY2V153MSEHCAP ALUM 15000UF 20% 350V SCREW Nichicon |
3,974 | 164.32 |
|
![]() Datasheet |
LNY | Bulk | Active | 15000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 A @ 120 Hz | 39.2 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 7.480" (190.00mm) | - | Chassis Mount | |
|

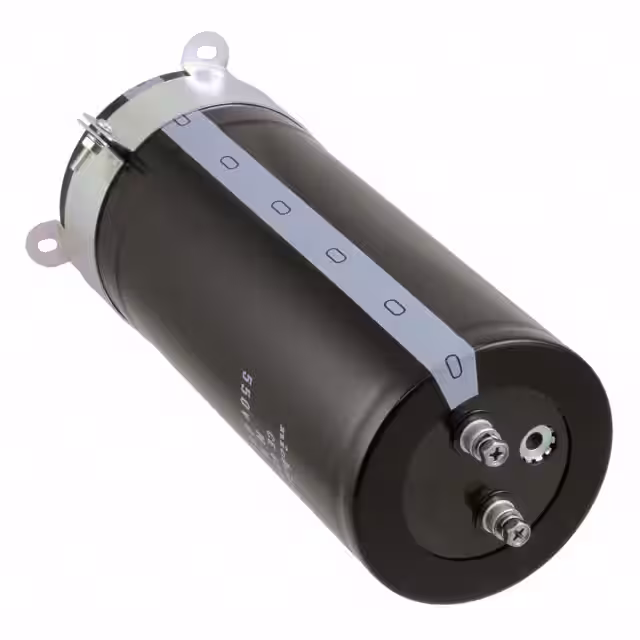

LNX2V183MSEJCAP ALUM 18000UF 20% 350V SCREW Nichicon |
3,006 | 123.28 |
|
![]() Datasheet |
LNX | Bulk | Active | 18000 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 39.7 A @ 120 Hz | 55.58 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
![]() |
LNK2W682MSEHCAP ALUM 6800UF 20% 450V SCREW Nichicon |
3,637 | 109.95 |
|
![]() Datasheet |
LNK | Bulk | Active | 6800 µF | ±20% | 450 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.7 A @ 120 Hz | 28.98 A @ 10 kHz | - | 1.252" (31.80mm) | 3.000" Dia (76.20mm) | 6.102" (155.00mm) | - | Chassis Mount | |
![]() |
LNT1K154MSECAP ALUM 150000UF 20% 80V SCREW Nichicon |
4,434 | 124.57 |
|
![]() Datasheet |
LNT | Bulk | Active | 150000 µF | ±20% | 80 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 21.6 A @ 120 Hz | 24.84 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 8.780" (223.00mm) | - | Chassis Mount | |
![]() |
LNT2E153MSECAP ALUM 15000UF 20% 250V SCREW Nichicon |
1,823 | 137.57 |
|
![]() Datasheet |
LNT | Bulk | Active | 15000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 12.7 A @ 120 Hz | 15.24 A @ 10 kHz | - | 1.252" (31.80mm) | 3.543" Dia (90.00mm) | 6.811" (173.00mm) | - | Chassis Mount | |
![]() |
LNT2W562MSEHCAP ALUM 5600UF 20% 450V SCREW Nichicon |
2,399 | 168.25 |
|
![]() Datasheet |
LNT | Bulk | Active | 5600 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 26.4 A @ 120 Hz | 36.96 A @ 10 kHz | - | 0.500" (12.70mm) | 3.000" Dia (76.20mm) | 7.480" (190.00mm) | - | Chassis Mount |
