Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

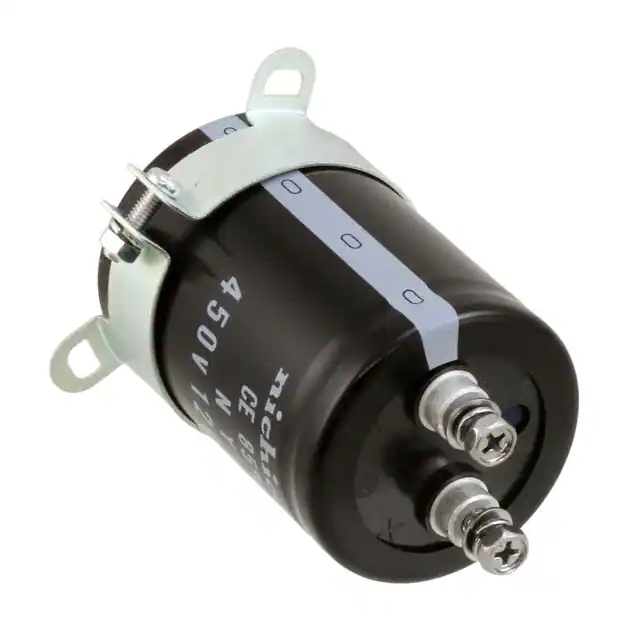

LNY2W122MSEFCAP ALUM 1200UF 20% 450V SCREW Nichicon |
4,711 | 34.08 |
|
![]() Datasheet |
LNY | Bulk | Active | 1200 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 8.4 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 2.953" (75.00mm) | - | Chassis Mount | |
|

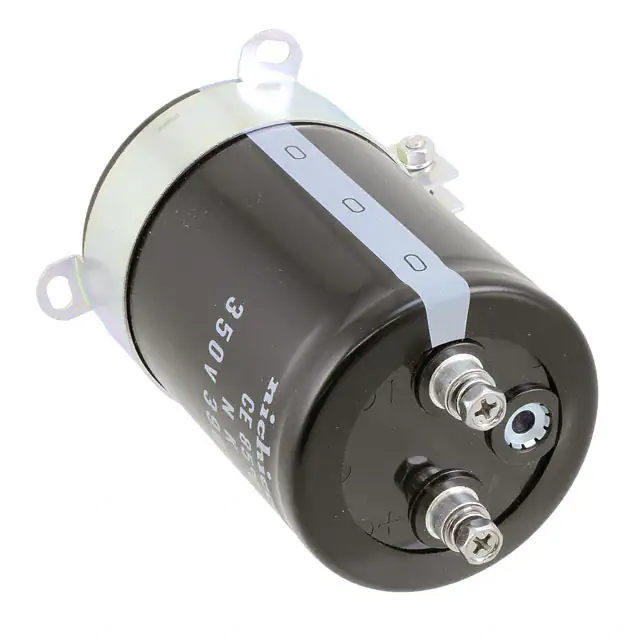

LNK2V392MSEGCAP ALUM 3900UF 20% 350V SCREW Nichicon |
2,064 | 63.53 |
|
![]() Datasheet |
LNK | Bulk | Active | 3900 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 17.92 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.937" (100.00mm) | - | Chassis Mount | |
![]() |
LNT1H473MSECAP ALUM 47000UF 20% 50V SCREW Nichicon |
1,723 | 40.33 |
|
![]() Datasheet |
LNT | Bulk | Active | 47000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9.9 A @ 120 Hz | 11.385 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.055" (103.00mm) | - | Chassis Mount | |
![]() |
LNX2V272MSEFCAP ALUM 2700UF 20% 350V SCREW Nichicon |
2,572 | 46.51 |
|
![]() Datasheet |
LNX | Bulk | Active | 2700 µF | ±20% | 350 V | - | 20000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.3 A @ 120 Hz | 14.42 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 5.236" (133.00mm) | - | Chassis Mount | |
![]() |
LNT2V152MSEFCAP ALUM 1500UF 20% 350V SCREW Nichicon |
1,767 | 41.16 |
|
![]() Datasheet |
LNT | Bulk | Active | 1500 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 8.6 A @ 120 Hz | 12.04 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.055" (103.00mm) | - | Chassis Mount | |
![]() |
LNT2D472MSECAP ALUM 4700UF 20% 200V SCREW Nichicon |
2,744 | 40.66 |
|
![]() Datasheet |
LNT | Bulk | Active | 4700 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 5.1 A @ 120 Hz | 6.12 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.055" (103.00mm) | - | Chassis Mount | |
![]() |
LNC2V272MSEGCAP ALUM 2700UF 20% 350V SCREW Nichicon |
3,178 | 41.48 |
|
![]() Datasheet |
LNC | Bulk | Active | 2700 µF | ±20% | 350 V | - | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 13.7 A @ 120 Hz | 19.18 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 2.874" (73.00mm) | - | Chassis Mount | |
|

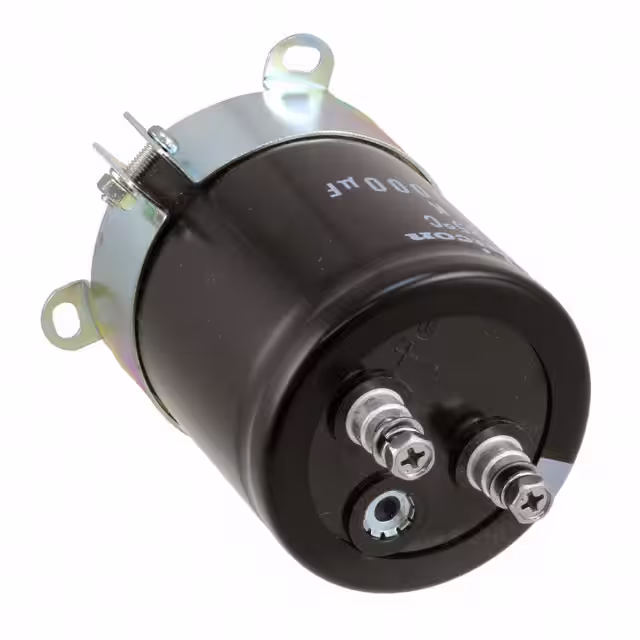

LNK2H102MSEGCAP ALUM 1000UF 20% 500V SCREW Nichicon |
1,061 | 46.37 |
|
![]() Datasheet |
LNK | Bulk | Active | 1000 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.2 A @ 120 Hz | 5.88 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 3.150" (80.00mm) | - | Chassis Mount | |
![]() |
LNT2W152MSEFCAP ALUM 1500UF 20% 450V SCREW Nichicon |
3,181 | 44.07 |
|
![]() Datasheet |
LNT | Bulk | Active | 1500 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 9.2 A @ 120 Hz | 12.88 A @ 10 kHz | - | 0.866" (22.00mm) | 2.008" Dia (51.00mm) | 4.843" (123.00mm) | - | Chassis Mount | |
![]() |
LNT1H683MSECAP ALUM 68000UF 20% 50V SCREW Nichicon |
4,664 | 49.73 |
|
![]() Datasheet |
LNT | Bulk | Active | 68000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 14.72 A @ 10 kHz | - | 1.126" (28.60mm) | 2.500" Dia (63.50mm) | 4.843" (123.00mm) | - | Chassis Mount |
