Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
HHP650PS28AC/DC CONVERTER 28V 651W XP Power |
3,600 | 428.40 |
|
![]() Datasheet |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC | 28V | - | - | - | - | - | 23 A | - | - | - | - | - | 651W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) |
![]() |
HHP650PS48AC/DC CONVERTER 48V 657W XP Power |
2,287 | 428.40 |
|
![]() Datasheet |
HHP650 (600/780W) | Box | Obsolete | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC | 48V | - | - | - | - | - | 13.5 A | - | - | - | - | - | 657W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.99" L x 4.20" W x 2.50" H (253.8mm x 106.8mm x 63.5mm) |
![]() |

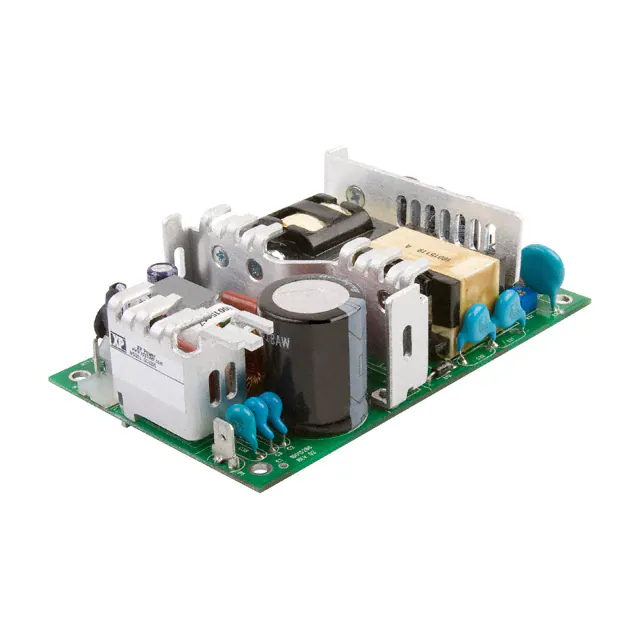

GCS250PS12-RAC/DC CONVERTER 12V 180W XP Power |
4,916 | 0.00 |
|
![]() Datasheet |
GCS (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
GCS250PS24-RAC/DC CONVERTER 24V 180W XP Power |
4,283 | 0.00 |
|
![]() Datasheet |
GCS (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
GCS250PS28-RAC/DC CONVERTER 28V 180W XP Power |
1,665 | 0.00 |
|
![]() Datasheet |
GCS (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 6.4 A | - | - | - | - | - | 180W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
GCS250PS48-RAC/DC CONVERTER 48V 180W XP Power |
2,477 | 0.00 |
|
![]() Datasheet |
GCS (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.7 A | - | - | - | - | - | 180W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
|

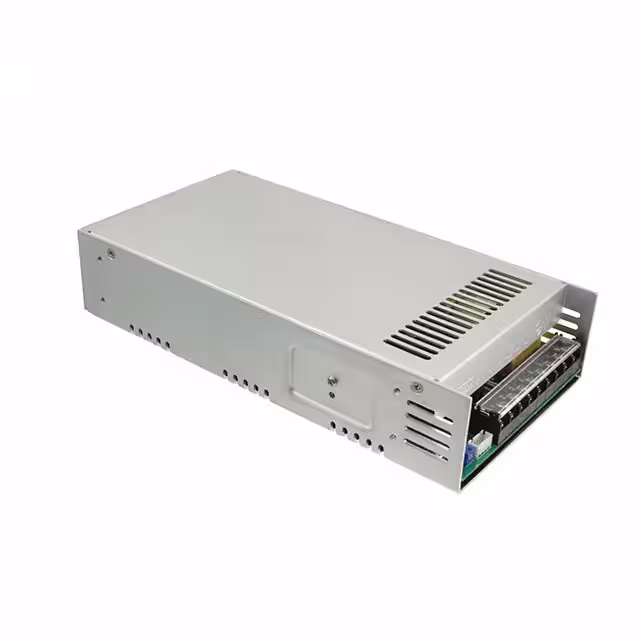

LCL500PS27AC/DC CONVERTER 27V 500W XP Power |
3,576 | 0.00 |
|
![]() Datasheet |
LCL (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 27V | - | - | - | - | - | 18.5 A | - | - | - | - | - | 500W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 2.08" H (250.0mm x 127.0mm x 53.0mm) |
![]() |
UCP225PS12AC/DC CONVERTER 12V 150W XP Power |
4,676 | 122.77 |
|
![]() Datasheet |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
![]() |
UCP225PS15AC/DC CONVERTER 15V 150W XP Power |
4,588 | 146.16 |
|
![]() Datasheet |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
![]() |
UCP225PS24AC/DC CONVERTER 24V 150W XP Power |
3,911 | 146.16 |
|
![]() Datasheet |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) |
