Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

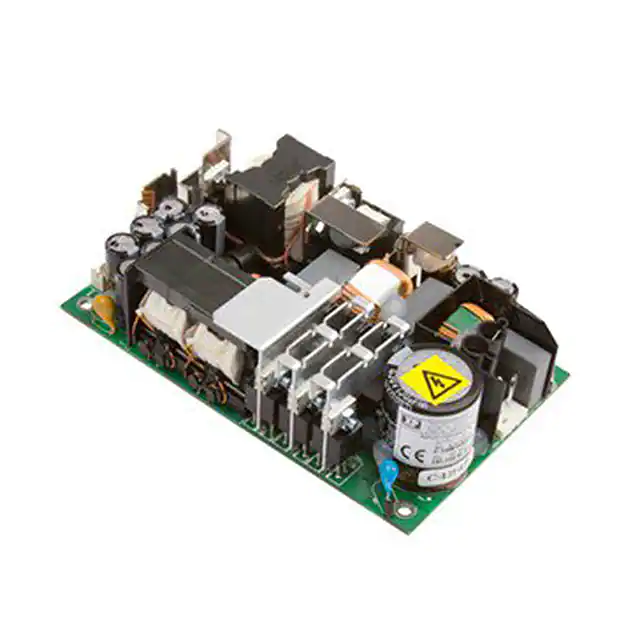

CHD250PS48AC/DC CONVERTER 48V 250W XP Power |
4,418 | 250.91 |
|
![]() Datasheet |
CHD250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
RCL175PS28-FSINGLE O/P AC-DC PSU, FAN COVER, XP Power |
3,482 | 0.00 |
|
![]() Datasheet |
RCL (175W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 28V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 120W | ITE (Commercial), Medical | 4 kV | -10°C ~ 50°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.71" L x 3.90" W x 2.14" H (145.0mm x 99.1mm x 54.4mm) |
![]() |
RCL175PS48-FSINGLE O/P AC-DC PSU, FAN COVER, XP Power |
4,334 | 0.00 |
|
![]() Datasheet |
RCL (175W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 120W | ITE (Commercial), Medical | 4 kV | -10°C ~ 50°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.71" L x 3.90" W x 2.14" H (145.0mm x 99.1mm x 54.4mm) |
![]() |
CHD250PS12-AAC DC CHASSIS-MOUNT PSU 250W XP Power |
4,504 | 0.00 |
|
![]() Datasheet |
CHD250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
SDR250AS12AC/DC CONVERTER 12V 250W XP Power |
4,019 | 279.17 |
|
![]() Datasheet |
SDR (250W) | Bulk | Active | Open Frame | 1 | - | 12V | - | - | - | - | - | 50 A | - | - | - | - | - | - | ITE (Commercial) | 3000 V | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) |
![]() |
SDR250AS15AC/DC CONVERTER 15V 250W XP Power |
1,112 | 279.17 |
|
![]() Datasheet |
SDR (250W) | Bulk | Active | Open Frame | 1 | - | 15V | - | - | - | - | - | 9 A | - | - | - | - | - | - | ITE (Commercial) | 3000 V | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) |
![]() |
SDR250AS24-CDE24V AC-DC PSU, COVER FITTED, SCR XP Power |
3,554 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
![]() |
RCL175PQ47-CQUAD O/P AC-DC PSU, 175W,COVERED XP Power |
4,803 | 0.00 |
|
![]() Datasheet |
RCL (175W) | Box | Active | Enclosed | 4 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 15V | 15V | 24V | - | - | 2 A | 2 A | 5 A | 15 A | - | - | 90W (175W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 50°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.71" L x 3.90" W x 1.59" H (145.0mm x 99.1mm x 40.4mm) |
![]() |

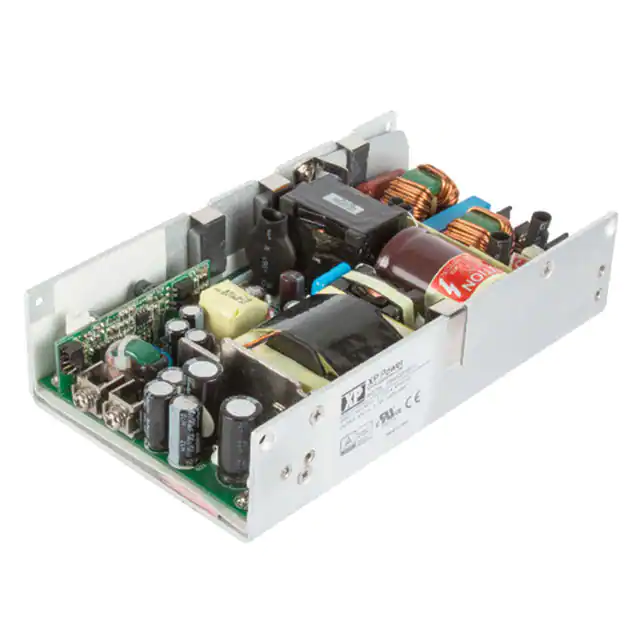

PBR500PS48BAC/DC CONVERTER 48V 400W XP Power |
2,860 | 276.00 |
|
![]() Datasheet |
PBR500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 400W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.68" H (177.8mm x 101.6mm x 42.7mm) |
![]() |
CHD250PS12-ACAC DC CHASSIS-MOUNT PSU 250W COV XP Power |
2,626 | 0.00 |
|
![]() Datasheet |
CHD250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.48" W x 1.75" H (139.7mm x 88.4mm x 44.5mm) |
