Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

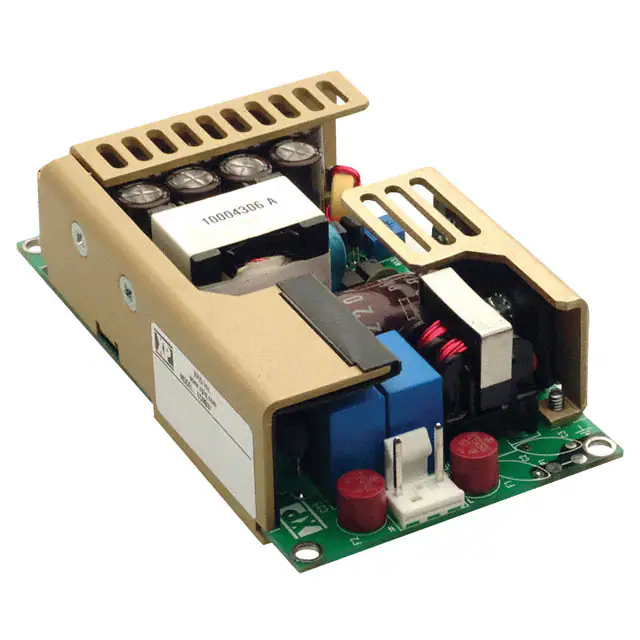

ECM100US33AC/DC CONVERTER 33V 100W XP Power |
2,395 | 111.48 |
|
![]() Datasheet |
ECM (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 33V | - | - | - | - | - | 3 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
![]() |
GCS250PS15AC/DC CONVERTER 15V 180W XP Power |
4,910 | 122.53 |
|
![]() Datasheet |
GCS (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 12 A | - | - | - | - | - | 180W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.3mm) |
![]() |

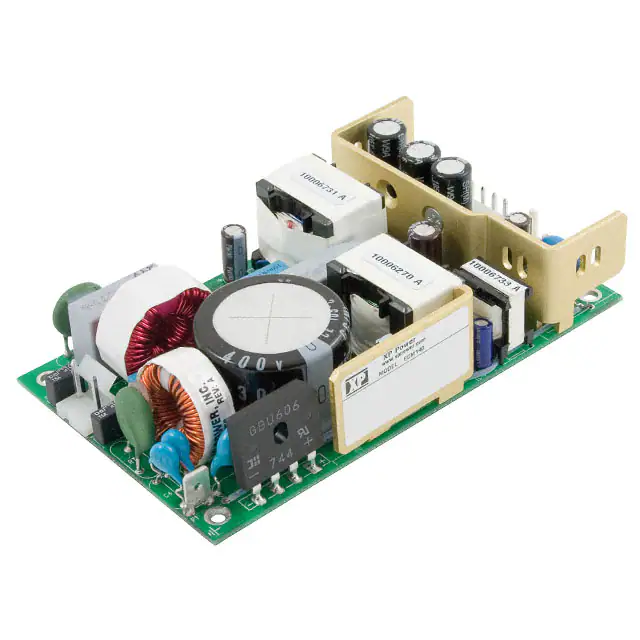

ECM140US15AC/DC CONVERTER 15V 140W XP Power |
2,786 | 149.59 |
|
![]() Datasheet |
ECM (140W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 140W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) |
|
GCS350PS56AC/DC CONVERTER 56V 200W XP Power |
1,929 | 157.54 |
|
![]() Datasheet |
GCS (350W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 56V | - | - | - | - | - | 3.6 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C | 80 Plus® Silver, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
![]() |
ECP225PS12-AAC/DC CONVERTER 12V 150W XP Power |
265 | 159.20 |
|
![]() Datasheet |
ECP225-A (225W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
![]() |
EMH250PS24AC/DC CONVERTER 24V 250W XP Power |
142 | 182.70 |
|
![]() Datasheet |
EMH (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 24V | - | - | - | - | - | 10.5 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
EMH250PS48AC/DC CONVERTER 48V 250W XP Power |
129 | 182.70 |
|
![]() Datasheet |
EMH (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
EMH250PS12AC/DC CONVERTER 12V 250W XP Power |
3,685 | 182.70 |
|
![]() Datasheet |
EMH (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 21 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
EMH250PS18AC/DC CONVERTER 18V 250W XP Power |
3,750 | 182.70 |
|
![]() Datasheet |
EMH (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 18V | - | - | - | - | - | 14 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
![]() |
CHD250PS24AC/DC CONVERTER 24V 250W XP Power |
209 | 250.91 |
|
![]() Datasheet |
CHD250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 10.4 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
