Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
AEU65-240AC/DC CONVERTER 24V 65W Triad Magnetics |
1,134 | 30.15 |
|
![]() Datasheet |
AEU65 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
![]() |
ALS50-12AC/DC CONVERTER 12V 50W Triad Magnetics |
1,982 | 28.42 |
|
![]() Datasheet |
ALS50 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
![]() |
ALS50-5AC/DC CONVERTER 5V 50W Triad Magnetics |
4,129 | 28.42 |
|
![]() Datasheet |
ALS50 | Box | Active | Open Frame | 1 | 90 ~ 260 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 9 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | 0°C ~ 55°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
![]() |
AEU65-360AC/DC CONVERTER 36V 65W Triad Magnetics |
3,294 | 30.15 |
|
![]() Datasheet |
AEU65 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
![]() |
AEU65-120AC/DC CONVERTER 12V 65W Triad Magnetics |
4,157 | 30.15 |
|
![]() Datasheet |
AEU65 | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
![]() |
AWSP60-24AC/DC CONVERTER 24V 60W Triad Magnetics |
3,634 | 36.23 |
|
![]() Datasheet |
AWSP60 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) |
![]() |
AWSP60-5AC/DC CONVERTER 5V 60W Triad Magnetics |
1,935 | 36.23 |
|
![]() Datasheet |
AWSP60 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 12 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.86" W x 1.50" H (160.0mm x 98.0mm x 38.0mm) |
![]() |
AWSP40-5AC/DC CONVERTER 5V 40W Triad Magnetics |
1,843 | 33.74 |
|
![]() Datasheet |
AWSP40 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 7.6 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
![]() |
AWSP40-24AC/DC CONVERTER 24V 40W Triad Magnetics |
3,537 | 33.74 |
|
![]() Datasheet |
AWSP40 | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
![]() |

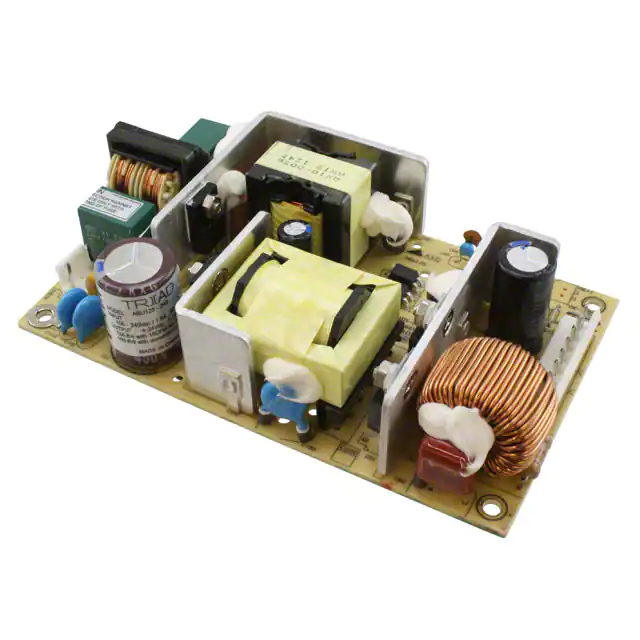

ABU125-240AC/DC CONVERTER 24V 100W Triad Magnetics |
4,579 | 44.56 |
|
![]() Datasheet |
ABU125 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.16 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.05" H (127.0mm x 76.2mm x 26.6mm) |
